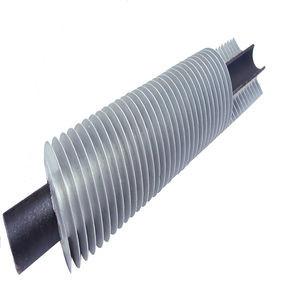

Copper Extruded Aluminum Fin Tube For Heat Exchanger 13FPI Min

Copper Tube Extruded Aluminum Fin Tube For Heat Exchanger

Manufacturing Process
A smooth core tube is inserted into an aluminum sleeve and then the fins are extruded out of the aluminum sleeve.
Fins Type:

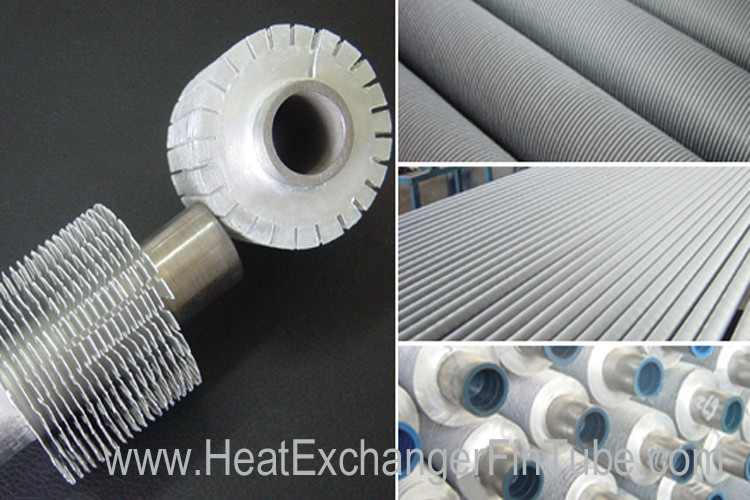

The fins are solid plain or serrated into 12,16 or 24 segments or as your design.
Detail:

Condition	New
Standard	ASME SA213/ASTM A213,ASME SA106/ASTM A106,ASME SA179/ASTM A179,ASTM B111
Material	carbon steel, stainless steel, copper alloy,Aluminum steel;other materials as customer request
Fin produce type	1.Extruded fin tube
	2.Serrated fin tube
	3.L Type fin tube
	4.G Type fin tube
	5.LL Type fin tube
	6.H Type fin tube
	7.Sprial fin tube
	8.High-frequency welding
Tube OD	25mm~165mm(as per as customer request)
Fin pitch	1~50mm(as per as customer request)
Fin height	5~50mm(as per as customer request)
Fin thickness	0.5~45mm(as per as customer request)
Application	Heat exchanger,Air Cooler,Charge Air Chiller, Condenser,Evaporator, Fluid Cooler, Gas Cooler,Oil Cooler, Radiator, Refrigeration etc...

Unfinned Section
Both plain ends with appr. 10mm~50mm and gaps (Unfinned Section) in the middle.

Surface Coating
Both bare ends of Bimetallic Finned Tubes shall be Zinc or Aluminum that metallized applied by an electro spray arc system coating.

Accessories
Tube Support Box, Clamp or Spacer Box(Materials: Aluminum, Zinc or Stainless Steel).

Applications:

The common application fileds are:

Heat exchangers units for power plant(electric, nuclear, thermal and geothermal power plants);
High corrosive systems (condensers, evaporators, sea water desalinations, fertilizing, urea systems, ammonia, gas, corrosive acids);
The petroleum, chemical and petrochemical industries;
The food processing and refrigeration industries;
Natural gas treatment;

Specifications:

Extruded Bimetallic Finned Tube is combined with two different materials.

Items	General Materials	Popular ASTM Materials
Core Tube Material	Any metallic materials, as carbon steel, low-alloy steel, stainless steel, brass, copper, cooper-nickel alloys, aluminum bronze, nickel alloys etc. (Core tube with extremely thin wall materials can be applied.)	1. Carbon Steel: A179, A192,SA210 Gr A1/C,A106 Gr B 2. Stainless Steel: TP304/304L,TP316/TP316L/316Ti, A789 S31803/S2205 etc... 3. Copper:UNS12200/UNS14200/UNS70600, CuNi70/30,CuNi 90/10 4. Titanium: B338 Gr 2
Fins Material	1. Aluminum 2. Copper.	1. Aluminum(Alu.1100,Alu.1060,Alu.6063) 2. Copper.

All dimensions are in Inches and specification upon your requests.
Tube OD	Fin Height	Fin Thickness	Fins per Pitch(Density)
5/8	3/8,1/2	.015/.016/ .020	4, 5, 6, 7, 8, 9, 10, 11, 12
3/4	3/8,1/2,5/8	.015/.016/ .020	4, 5, 6, 7, 8, 9, 10, 11, 12
1	3/8,1/2,5/8	.015/.016/ .020	4, 5, 6, 7, 8, 9, 10, 11
1 1/4	3/8,1/2,5/8	.015/.016/ .020	4, 5, 6, 7, 8, 9, 10,
1 1/2	3/8,1/2,5/8	.015/.016/ .020	4, 5, 6, 7, 8, 9, 10, 11
1 3/4	3/8,1/2,5/8	.015/.016/ .020	4, 5, 6, 7, 8, 9, 10
2	3/8,1/2,5/8	.015/.016/ .020	4, 5, 6, 7, 8, 9, 10
Please email us for more information.

Advantages

One-stop manufacturer shop from core tube supply to fin tube machines
ISO 9001:2008 certified company
Experienced and dedicated management and qualfied manpower
Quickest response, competitive price, highese quality and shortest schedule
Tube stock availability for general grades of carbon steel and stainless steel
Technical support services for fin tube machines and replacement accessories

Product Tags:


*From:	Your email address is incorrect!
*To:	JIANGSU RELIANCE THERMAL EQUIPMENT CO., LTD
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Extruded Fin Tube
Brand Name:	Reliance
Model Number:	DR
Certification:	CE,ISO...
Place of Origin:	China.Imported materials are available.
MOQ:	N/A
Price:	N/A
Payment Terms:	T/T, L/C
Supply Ability:	Daily capacity up to 3,000 Meters.
Delivery Time:	Ex-work within 1 month on receipt of order.

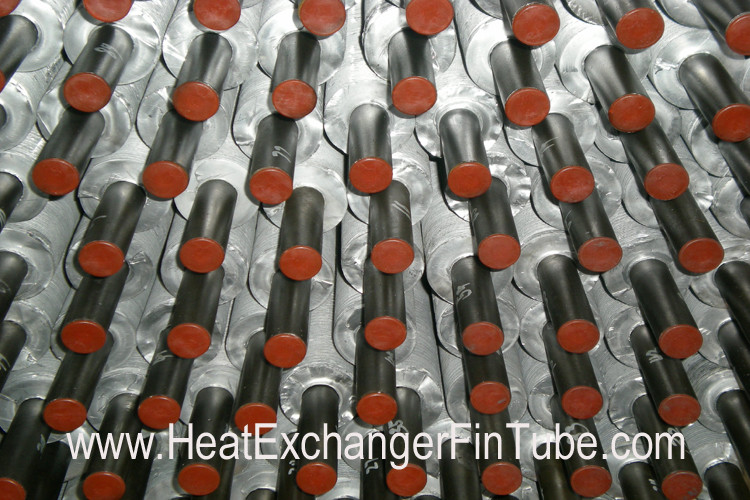

Packaging Details:	(1) Steel frame case sealed by plywoods with each end capped. (2) Solid fumigated wooden box with each end capped.
Fin tube Type:	Extrusion fin tube
Fins Type:	Solid & Serrated
Tube material:	Carbon steel, stainless steel, alloy steel, copper etc...
Fin material:	aluminum
Tube Length:	No limit
Fin density:	13FPI min
