| Categories | Two Stage Screw Air Compressor |
|---|---|
| Place of Origin: | Jiangsu |
| Brand Name: | DHH |
| Model Number: | DDM-75 |
| Packaging Details: | Wooden box |
| Supply Ability: | 600set/months |
| Price: | Negotiate |
| Certification: | CE/ISO9001 |
| MOQ: | 1set |
| Delivery Time: | 25days |
| Payment Terms: | T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency. |

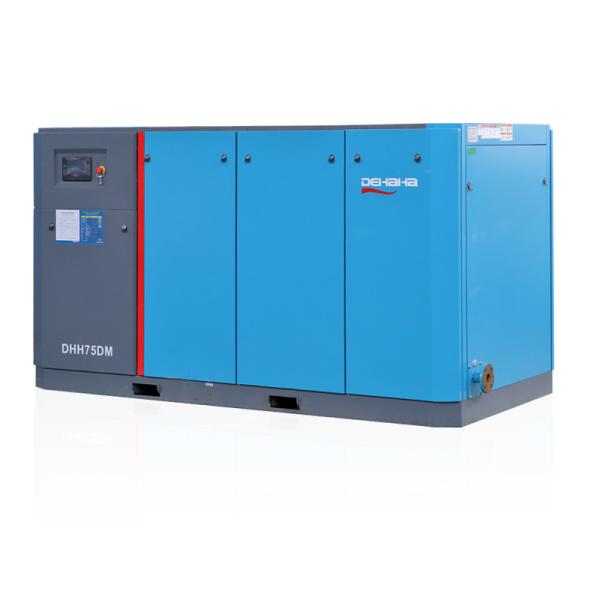

| Product name: | TTwo stage Screw Air Compressor 55KW |
| Voltage: | 380V/50hz or Customer's Requirement |
| Capacity: | 10.2~16m3/min 360~565cfm |
| Working Pressure: | 7, 8 ,10 ,13 bar |
| Dimension(L*W*H): | 2900*1470*1625mm |
| Weight: | 2000kg |
| Air end: | Rotorcomp/Hanbell/GHH/Baosi |
| Motor: | Siemens/ABB/SUMA |
| Cooling method: | Air Cooling/Water Cooling |
| Protection grade: | IP54/IP55/IP65 |
| Exhaust oil content: | < 3ppm |
| OEM: | Offered |
| Company Info. |
| Dhh Compressor Jiangsu Co., Ltd |
| View Contact Details |
| Product List |

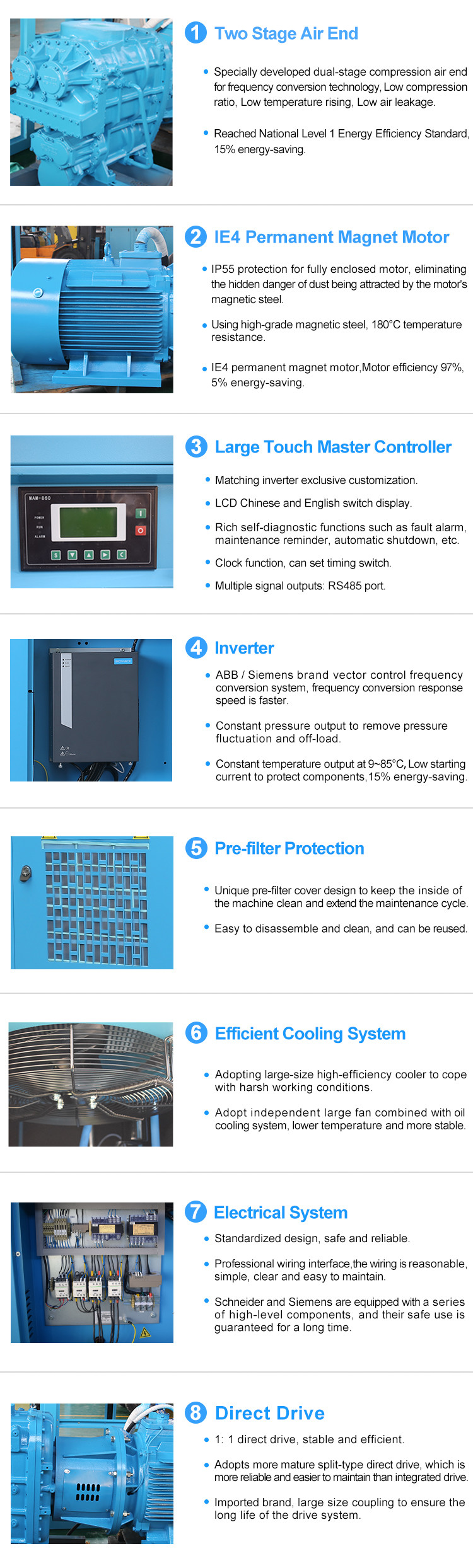

Two stage air end
Feature:Two-stage compressor air-end
Advantage:Low compression ratio, Low temperature rising, Low air
leakage
Benefit:15% energy-saving
High-efficiency Motor
Feature:IE4 permanent magnet motor/IE4 High-efficiency motor
Advantage:Motor efficiency 97%
Benefit:5% energy-saving
Intelligent control
Feature:VFD system
Advantage:Constant pressure output to remove pressure fluctuation
and off-load, Constant temperature output at 9-~85°C, Low starting
current to protect components
Benefit:15% energy-saving
Cooling fan
Feature:Large cooler system
Advantage:Axial flow Fan used for good cooling effect
Benefit:Allow ambient temperature at 52°C
Systematic Design of Oil separator
Feature:Large oil system
Advantage:Reduce internal pressure loss avoid oil, Leakage for
safety
Benefit:3% energy-saving
Filter
Feature:Double filtering system
Advantage:Remove impurity from air and cleanness
Benefit:Longer life air -end and lubrication oil
1.power frequency
| MODEL | Air flow Capacity (m³/min) | Power (kW) | Noise (DB) | Outlet Diameter | Dimension ( mm) | Weight (Kg) | ||||
| 0.6Mpa | 0.7Mpa | 0.8Mpa | 1.0Mpa | 1.3Mpa | ||||||
| DD-75 | 15.80 | 14.70 | 13.00 | 9.50 | 8.60 | 55 | 70 | DN50 | 2300x1300x1830 | 1534 |
| DD-100 | 18.80 | 17.40 | 15.50 | 12.80 | 10.00 | 75 | 72 | DN50 | 2300x1300x1830 | 1700 |
| DD-125 | 21.30 | 20.70 | 19.50 | 16.50 | 13.00 | 90 | 72 | DN65 | 2550x1630x1850 | 2080 |
| DD-150 | 26.50 | 26.30 | 25.00 | 20.00 | 18.80 | 110 | 72 | DN65 | 2550x1630x1850 | 2120 |
| DD-175 | 34.00 | 32.60 | 30.00 | 24.00 | 20.00 | 132 | 78 | DN80 | 3000x1828x2310 | 4850 |
| DD-220 | 41.00 | 38.00 | 37.00 | 29.60 | 24.50 | 160 | 78 | DN80 | 3000x1828x2310 | 5000 |
| DD-250 | 44.00 | 41.00 | 40.00 | 34.00 | 31.00 | 185 | 78 | DN100 | 3460x1940x2230 | 5900 |
| DD-275 | 48.00 | 44.00 | 45.00 | 40.00 | 33.00 | 200 | 78 | DN100 | 3460x1940x2230 | 6200 |
| DD-275 | 55.00 | 51.00 | 50.00 | 43.00 | 38.00 | 220 | 80 | DN125 | 3860x2130x2380 | 8500 |
| DD-350 | 60.00 | 57.00 | 56.00 | 47.00 | 43.00 | 250 | 80 | DN125 | 3860x2130x2380 | 8650 |
2.Permanent magnet
| MODEL | Air flow Capacity (m³/min) | Power (kW) | Noise (DB) | Outlet Diameter | Dimension (mm) | Weight (Kg) | |||
| 0.7Mpa | 0.8Mpa | 1.0Mpa | 1.3Mpa | ||||||
| DDM-60 | 10.5 | 10.3 | 7.3 | 6.1 | 45 | 70 | G2 | 1834*1290*1810 | 1353 |
| DDM-75 | 13.6 | 12.3 | 10.2 | 7.0 | 55 | 70 | DN50 | 2300*1300*1830 | 1534 |
| DDM-100 | 16.0 | 15.5 | 12.8 | 10.2 | 75 | 72 | DN50 | 2300*1300*1830 | 1700 |
| DDM-125 | 20.7 | 19.5 | 16.2 | 13.2 | 90 | 72 | DN65 | 2550*1630*1850 | 2080 |
| DDM-150 | 24.8 | 24.0 | 20.2 | 15.2 | 110 | 72 | DN65 | 2550*1630*1850 | 2120 |
| DDM-175 | 29.0 | 28.0 | 23.2 | 18.7 | 132 | 78 | DN80 | 2800*1828*2150 | 4850 |
| DDM-220 | 34.0 | 33.5 | 28.0 | 23.3 | 160 | 78 | DN80 | 2800*1828*2150 | 5000 |
| DDM-250 | 39.0 | 38.0 | 33.5 | 27.7 | 185 | 78 | DN100 | 4100*1960*2000 | 5900 |
| DDM-275 | 43.0 | 42.5 | 38.3 | 33.3 | 200 | 78 | DN100 | 4100*1960*2000 | 6200 |
| DDM-300 | 51.5 | 47.0 | 42.4 | 38.3 | 220 | 80 | DN125 | 4260*2155*2170 | 8500 |
| DDM-350 | 54.0 | 51.0 | 45.8 | 41.4 | 250 | 80 | DN125 | 4260*2155*2170 | 8650 |

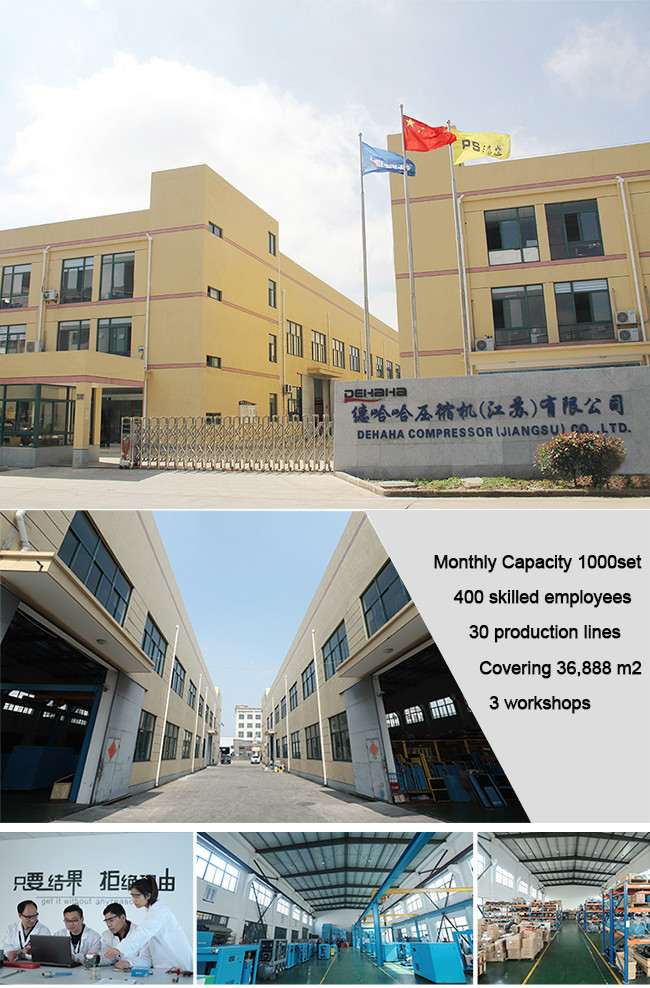

About us
DHH compressor Jiangsu Co., Ltd. is a manufacturer who integrates R & D, manufacturing, sales and service. It was founded in 1996, with 26 years’ experience in this industry. We have five series of products: oil injected, oil-free, medium and high pressure, 2 ~ 5bar low pressure and diesel portable compressor. In 2017 we obtained more than 20 patents with certificate: ISO9001, EU CE. In 2018, we were identified as "high-tech enterprise" and "private-own technical enterprise".
|
