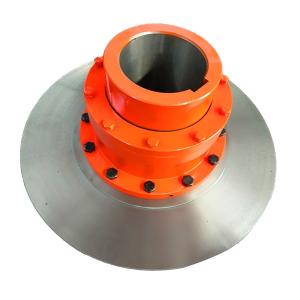

Name: WGP Model Brake Disc Drum Flexible Gear Coupling
Brand: Jude
Price: 1 USD

Home > Pipe Fittings >

WGP Model Brake Disc Drum Flexible Gear Coupling

Categories	Flexible Gear Coupling
Brand Name:	Jude
Place of Origin:	Hebei, China
Packaging Details:	WGP Model brake disc Drum gear coupling Wooden Box Or Customized
Supply Ability:	1000 Set/Sets per Month
Model Number:	WGP brake disc gear coupling
Certification:	ISO9001
MOQ:	1
Applicable Industries:	Manufacturing Plant, Machinery Repair Shops
Flexible or Rigid:	Flexible
Material:	Steel
product name:	WGP Model brake disc Drum gear coupling
Feature:	Compensates the relative offset of two axes
Working temperature:	-20℃-100℃
Transfer nominal torque:	800-180000N.M
Model:	WGP1-14
Brake disc diameter:	315-1000mm
Color:	black,orange or custom
Packing:	Wooden Box Or Customized
MOQ:	1 Set
Size:	Custom Dimension Acceptable
Port:	Tianjin

Contact Now

Add to Cart

Company Info.

Nanpi County Jude Transmission Equipment Manufacturing Co., Ltd.

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

WGP Model Brake Disc Drum Flexible Gear Coupling

The WGP drum gear coupling with brake disc includes a left bushing and a right bushing for connecting the power input shaft and the power output shaft respectively. The end of the left bushing is provided with a drum gear. The connecting sleeve on the periphery of the left sleeve is engaged with the drum-shaped teeth on the left sleeve through its inner teeth, and the end of the right sleeve is provided with a connecting flange, which is connected and fixed with the connecting sleeve through the penetrating bolts. The brake disc is clamped and fixed between the connecting flange and the coupling sleeve.

WGP type drum gear coupling with brake disc is composed of inner gear ring with the same number of teeth and flange half coupling with outer teeth. The external teeth are divided into two types: straight teeth and drum teeth. The so-called drum teeth are made of spherical surfaces. The center of the spherical surface is on the axis of the gear. Allowing larger angular displacement (relative to the straight-tooth coupling), it can improve the contact conditions of the teeth, improve the ability to transmit torque, and prolong the service life. The contact state along the tooth width with angular displacement.

Product Description

The Coupling Structure & Parameter

WGP brake disc Gear Coupling Unit:mm
WGP brake disc Gear Coupling Unit:mm
Size	Torque	Speed	Bore Dia	Length		D	D2	D4	D0	B	N	R	F	C	C1	C2
	Tn	[n]	Bore Dia	Length
	N.m	r/min	d1,d2,dz	Y	J1,Z1
WGP1	710	7500	12.14	32	--	122	98	60	315	58	38	2	30	30	--	--
			16.18.19	42	--									20	--	--
			20.22.24	52	--									10	--	--
			25.28	62	44									3	19	18
			30.32.35.38	82	60									3	23	12
			40.42	112	84									3	29	12
WGP2	1250	6700	22.24	52	--	150	118	77	315	68	38	2.5	30	20	--	--
			25.28	62	--									10	--	--
			30.32.35.38	82	60									3	23	16
			40.42.45.48.50.55.56	112	84									3	29	16
WGP3	2500	6300	22.24	52	--	170	140	90	355	80	49	2	30	33	--	--
			25.28	62	--									23	--	--
			30.32.35.38	82	60									3	23	16
			40.42.45.48.50.55.56	112	84									3	29	16
			60.63	142	107									3	36	16
WGP4	4500	5600	30.32.35.38	82	--	200	160	112		90	45	3	30	13	--	--
			40.42.45.48.50.55.56	112	84				400					3	29	17
			60.63.65.70.71.75	142	107				450					3	36	17
			80	172	132				500					3	41	17
WGP5	7100	5300	30.32.35.38	82	--	225	180	128		100	45	4	30	23	--	--
			40.42.45.48.50.55.56	112	84				400					3	29	19
			60.63.65.70.71.75	142	107				450					3	36	19
			80.85.90	172	132				500					3	41	19
WGP6	10000	5000	32.35.38	82	--	245	200	145		112	44	4	30	35	--	--
			40.42.45.48.50.55.56	112	--				450					5	--	--
			60.63.65.70.71.75	142	107				500					5	38	20
			80.85.90.95	172	132				560					5	43	20
			100	212	167				630					5	48	20
WGP7	14000	4500	32.35.38	82	--	272	230	160		122	44	4	30	45	--	--
			40.42.45.48.50.55.56	112	--				450					15	--	--
			60.63.65.70.71.75	142	107				500					5	38	20
			80.85.90.95	172	132				560					5	43	20
			100.110	212	167				710					5	48	20
WGP8	20000	4250	55.56	112	--	290	245	176	500	136	44	5	30	29	--	--
			60.63.65.70.71.75	142	107				560					5	38	34
			80.85.90.96	172	132				630					5	43	20
			100.110.120.125	212	167				710					5	48	38
WGP9	25000	4000	65.70.71.75	142	107	315	265	190	500	140	58	5	30	5	38	28
			80.85.90.95	172	132				630					5	43	28
			100.110.120.125	212	167				710					5	48	28
			130.140	252	202				800					5	53	28
WGP10	40000	3550	75	142	--	355	300	225		165	58	6	30	28	--	--
			80.85.90.95	172	132				630					5	43	38
			100.110.120.125	212	167				710					5	48	28
			130.140.150	252	202				800					5	53	28
			160	302	242									5	63	28
WGP11	56000	3000	85.90.95	172	--	412	345	256		180	58	6	40	15	--	--
			100.110.120.125	212	167				710					8	51	32
			130.140.150	252	202				800					8	56	32
			160.170.180	302	242				900					8	56	32
WGZ12	80000	2800	120.125	212	167	440	375	288		210	58	7	40	8	51	45
			130.140.150	252	202				710					8	56	32
			160.170.180	302	242				800					8	66	32
			190.200	352	282				900					8	76	32
WGP13	112000	2500	145.150	252	202	490	425	320		235	58	8	50	8	56	38
			160.170.180	302	242				800					8	66	32
			190.200.220	352	282				900					8	76	32
WGP14	160000	2300	160.170.180	302	242	545	462	362		265	65	9	50	10	68	32
			190.200.220	352	282				800					10	78	32
			240.250.260	410	330				900					10	--	10

The Brake Disc Specifications

WGP Brake Disc Size unit:mm
WGP Brake Disc Size unit:mm
Dia	Thickness		Height	D5 max		Weight kg		Inertia kg.m²
D0	T	k	S	Ⅰ	Ⅱ	Ⅰ	Ⅱ	Ⅰ	Ⅱ
315	15	10	42	180	155	8.5	6.7	0.116	0.11
355	15	10	54	200	175	11.4	9.9	0.192	0.178
400	15	14	54	255	230	15.2	12.4	0.32	0.287
450	15	16	54	305	280	19.7	15.6	0.55	0.462
500	15	18	54	325	295	25	20	0.83	0.712
560	15	18	54	350	320	30.7	25.6	1.28	1.127
630	15	20	54	400	360	38.8	33	2.06	1.826
710	15	20	54	480	450	46.5	39.4	3.32	2.912
800	15	24	70	540	500	67.8	52.7	5.87	4.81
900	15	24	70	600	560	86.6	70.3	9.3	7.852
1000	15	30	80	620	560	128.8	115.1	17.4	15.65

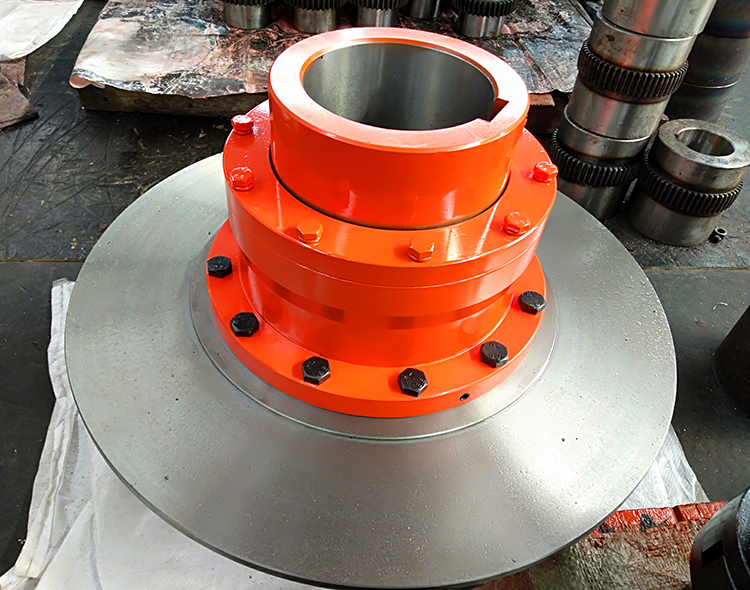

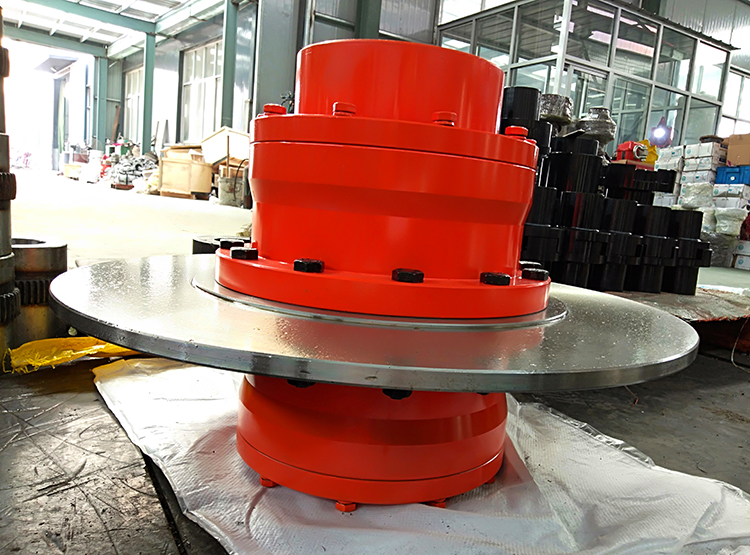

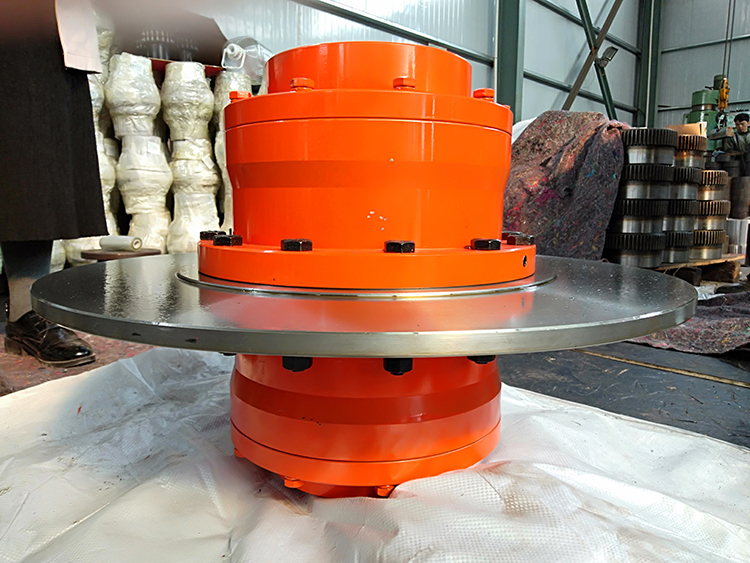

products images
