| Categories | Belt Drying Equipment |
|---|---|
| Brand Name: | HengShou |
| Certification: | ISO SGS |
| Place of Origin: | Sichuan |
| MOQ: | 1 |
| Price: | $19900-39900 Sets |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 Sets Years |
| Delivery Time: | 10 Work Days |
| Product name: | Mesh Belt Drying Equipment |
| Number of fans: | 2-6 |
| Processing customization: | Yes |
| Operating temperature: | 40-100℃ |
| Drying output (t/h): | 4-20 |
| Paving thickness: | 10-60mm |

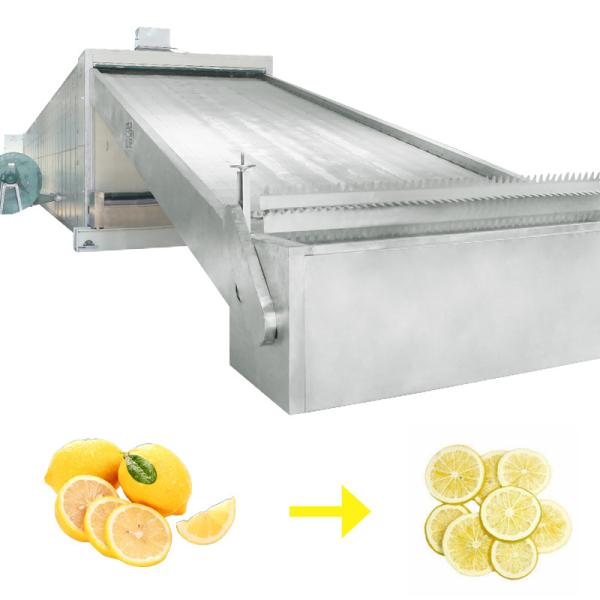

Fruit Category Mesh Belt Drying Equipment Maintain High Quality Drying
Description:
Excellent materials, beautiful appearance, skillful manufacturing technology, and delicate treatment.
Cost saving, fast drying speed, low energy consumption, cost
saving, and good effects.
High drying efficiency, complete model, and can support
customization.
The fan has a simple structure, convenient installation, labor
saving, and stable operation.
Specifications:
| Model | DW2×6m | DW2×8m | DW2×10m | DW2×12m | DW2×14m | DW2×16m | |
| Area of dry | 3 layers | 29㎡ | 40㎡ | 51㎡ | 62㎡ | 73㎡ | 83㎡ |
| 4 layers | 39㎡ | 53㎡ | 68㎡ | 83㎡ | 97㎡ | 110㎡ | |
| 5 layers | 48㎡ | 66㎡ | 85㎡ | 103㎡ | 121㎡ | 138㎡ | |
| 6layers | 57㎡ | 79㎡ | 102㎡ | 124㎡ | 145㎡ | 165㎡ | |
| Thickness of the material | 50---150mm | ||||||
| Operation temperature | 40---120℃ | ||||||
| Drying time | 0.5——5 hour or 3——15 hour | ||||||
| Motor power | 1.1kw | 1.5kw | 1.5kw | 1.5kw | 2.2kw | 3kw | |
| Evaporation,capacity | 200-400kg/h | 300-600kg/h | 400-700kg/h | 500-800kg/h | 600-1000kg/h | 700-1200kg/h | |
| Size of hot blast stove | 1.2×2.5×1.7 | 1.2×2.7×1.9 | 1.3×3×2 | 1.3×3×3 | 1.6×3.5×2.2 | 1.6×3.7×2.2 | |
| Fan | 8C-15kw | 10C-15kw | 10C-22kw | 10C-37kw | 12C-30kw | 12C-45kw | |
| Output conveyor | 1.1kw | ||||||
| Total power | 18kw | 18.4kw | 26kw | 41kw | 35.1kw | 46.7kw | |
MATERIAL APPLICATION
COMPANY PROFILE
PATENT CERTIFICATE
SHIPMENT AND PACKGAGE
Packaging And Delivery Details:
1. Standard import and export wooden case
2. According to customer requirements, the packaging method can be negotiated.
|
