High-Security Anti-Fare Evasion Sliding Barrier Gate with BLDC Motor and Bi-directional Access Control Turnstile

High-Security Anti-Fare Evasion Sliding Barrier Gate
Advanced access control solution for metro stations, airports, and public transit systems featuring horizontal sliding barrier technology.
Product Overview
A sophisticated passage management device employing linear horizontal movement technology. The gate opens and closes through horizontal retraction and extension of the barrier panel, combining high security with exceptional space adaptability.
Smooth & Quiet Operation
Linear motion with minimal friction; operational noise typically below 50 dB for enhanced user experience.
High Safety Standards
Comprehensive safety mechanisms including infrared anti-pinch, obstacle detection rebound, and mechanical impact protection.
Technical Specifications
Material304 Stainless Steel
Dimensions1200 * 330 * 980 mm
Barrier Length250mm
Dry Contact12V
LED Indicator LightsOne
Card-reading WindowsTwo
Rated Power100W
Operating Temperature-25℃ to +60℃
Relative Humidity≤90% RH
Communication InterfaceRS485, distance ≤1200m
Power SupplyAC100V-240V, DC24V
Transit Speed30 to 35 persons per minute
PackingPlywood box, pallet
Product Advantages
The body is constructed from brushed stainless steel, creating a seamless and elegant access point that blends harmoniously into most indoor environments.
Designed for seamless integration with any access controller system including RFID devices, push buttons, fingerprint scanners, and biometric devices.
Emergency-ready design: In case of emergency, the sliding barrier automatically opens to allow free passage. Ideal for elegant and luxury entrance solutions requiring both security and aesthetics.
Detailed Functions & Features
  • Comprehensive fault detection and alarm functions for easy maintenance and operation
  • Programmable running status with built-in keyboard on the main board
  • Mechanical anti-pinch function with automatic motor shutdown upon resistance detection
  • Anti-breakthrough security with automatic locking until authorized opening signal received
  • Infrared photocell support for enhanced anti-pinch and reset functionality
  • Automatic reset function cancels user authority after prescribed time (default 5 seconds)
  • Configurable as normally open or normally closed operation
  • Compatible with various card readers: IC/ID cards, bar codes, fingerprints (access controller required)
  • Direction configuration: single-direction or bi-direction operation
  • Integrated LED direction indicators for clear user guidance
  • Power-off auto-open and power-on auto-close functionality
  • Comprehensive alarm system for illegal intrusion and reverse intrusion detection
Product Gallery

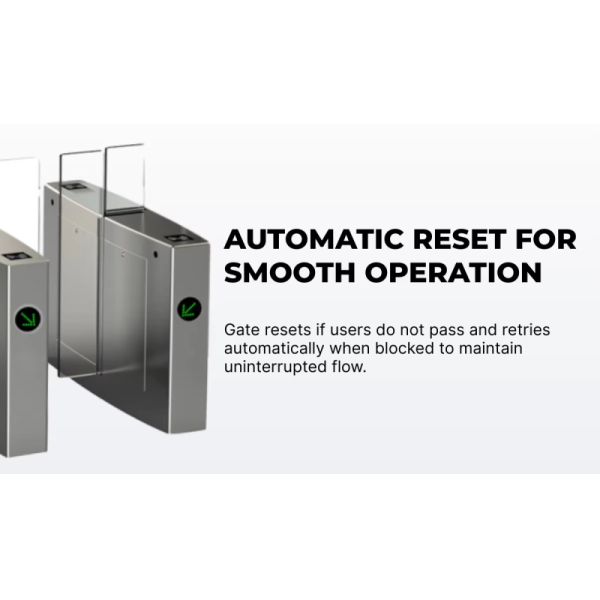

High-security sliding barrier gate front view showing stainless steel construction Side view of anti-fare evasion gate with barrier extended Close-up of card reader integration and LED indicators Gate installation in metro station environment Detailed view of mechanical components and safety features Emergency operation mode showing barrier in open position
