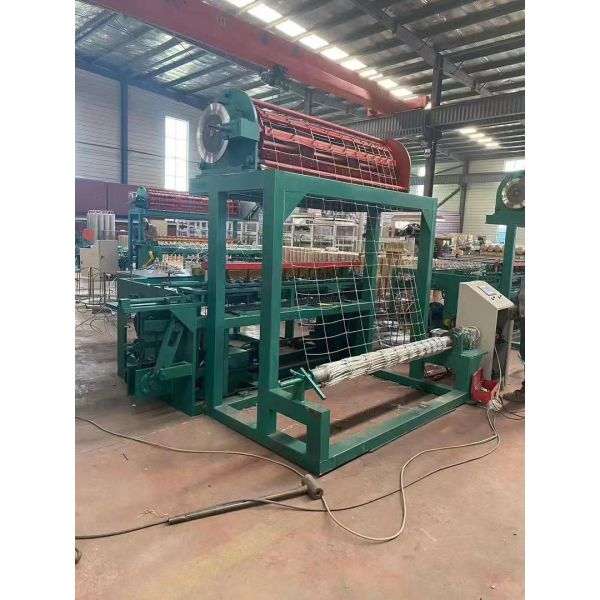

Automatic Field Fixed Knot Cattle /Deer Grassland Mesh Fence Netting Machine Price
Fixed Knot field fence machine is used to weave wrap-around fence. it can weave the diameter wire and weft wire together automatically. lt is developed after many years since our company has independent intellectual property rights, self-made.lt uses sophisticated computer control, advanced production technology.With novelty, high degree of automation, operational safety and reliability,.
| Model Parameters | 18-2080 | 20-2438 |
| Maximum Fence width | 2080mm(82") | 2438mm(96") |
| Maximum number of Line Wires | 18 | 20 |
| Line Wire Spacing | 76mm(3")x6+100mm(4")x2+127mm(5")x2 +152mm(6")x3+178mm(7")x4 | 76mm(3")x6+100mm(4")x2+127mm(5")x2 +152mm(6")x3+178mm(7")x6 |
| Line wire spacing | Min. 76mm (3''). It can be increased by a multiple of 25mm (1'') | |
| Stay Wire Spacing | 75mm.150mm.225mm.300mm.450mm | |
| Edge Wire Size | ф2.5mm-3.0mm | |
| Line Wire Size | $2.50mm | |
| Stay Wire Size | ф2.5mm | |
| Knot Wire Size | ф2.0mm,$2.2mm | |
| Line Wire Tensile Range | 850-1350N/mm2 | |
| Stay Wire Tensile Range | 525-850N/mm2 | |
| Knot Wire Tensile Range | 400-525N/mm2 | |
| Max Length of roll | 100m/roll | |
| No.Strokes (Stay Wires) Per Minute | 25row/min | |
| Control system | servo motor,PLC | |
| Total Machine weight | 8T | 10T |
| Approximate Floor Area Required | 10mx22m | 11mx22m |
1 .Solid steel plate and gear boxes ensure levels of vibration are
kept to a minimum in operation.
2.Precision running gear in all critical areas maintains
reliability and quiet operation

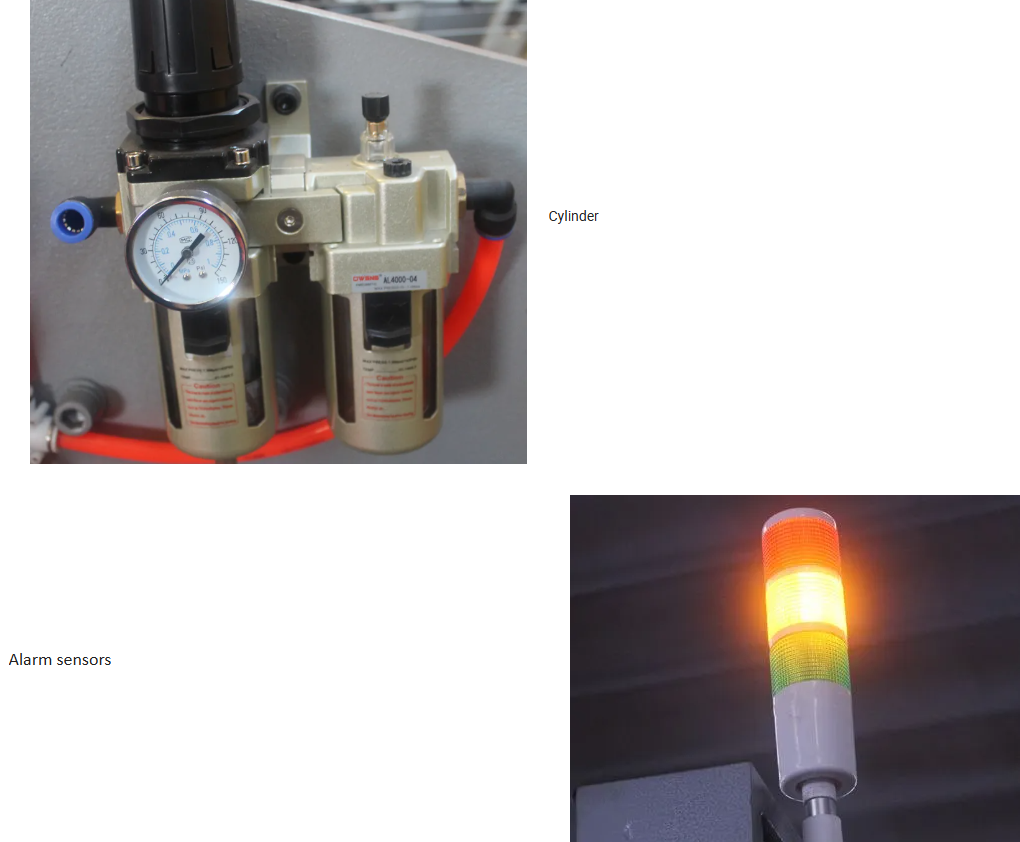

3.Comprehensive level of sensing equipment in the tie feed, back
frame, stay-feed and through-process sensors.
These sensors pick up faults and missing wire which allows the
machine to be confidently run with minimal supervision.
4.Auto Wire-Stripping-Table releases finished rolls to the pickup
zone and re-sets for windup allows for the easy removal of any type
of roll.
5.Setup allows minimum line wire spacing of 3" and produces a tight
strong fence highly suitable
for security,horse and pig fencing applications with the Fixed
Knot, through to 48" for economy fences.
6.Replacement components available on request, with an extensive
range of parts stocked and ready for direct shipment.
7.Automated Crimp Drum and Dual Stay Wire feed allows for rapid
changeovers where frequent specification changes are required
8.Fixed knot fence machine specification (Special specifications
can be made by your requests)
|
