ICS Triplex T8480 Trusted TMR Analogue Output Module with 40 TMR Channels, 2500V Isolation

ICS Triplex T8480 Trusted TMR Analogue Output Module with 40 TMR Channels, 2500V Isolation

ICS Triplex T8480 Trusted TMR Analogue Output Module with 40 TMR Channels, 2500V Isolation
ICS Triplex T8480 Trusted TMR Analogue Output Module with 40 TMR Channels, 2500V Isolation
Categories ICS Triplex
Brand Name: ICS triplex
Model Number: T8480
Place of Origin: USA
MOQ: 1
Price: 66USD
Payment Terms: T/T
Supply Ability: in stock
Delivery Time: 2-3 work days
Packaging Details: Brand new and original
Country of origin: USA
Place of shipment: Xiamen, China
Estimated Shipping Size: 3.1x30.5x26.5cm
weight: 1.28 kg
Operating Temperature Range: -40°C to +70°C (-40°F to +158°F)
Storage Temperature Range: -40°C to +85°C (-40°F to +185°F)
Humidity Range: 5% to 95% non-condensing
Altitude: Up to 2000 meters (6562 feet)
Contact Now
Company Info.
AMIKON LIMITED
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

ICS Triplex T8480 Trusted TMR Analogue Output Module with 40 TMR Channels, 2500V Isolation

ICS Triplex T8480 Trusted TMR Analogue Output Module technical diagram

Current Output: 4-20 mA
Voltage Output: 0-10 V, ±10 V
Current Load: 750 ohms
Voltage Load: 10 kΩ
Operating Voltage: 24 V DC (nominal)
Power Consumption: Approximately 4 W per module
Nominal Supply Voltage Range: 20.4 V to 27.6 V DC
Current Consumption: Typically 200 mA
ICS Triplex T8480 module features and capabilities

  • High-Density Output: 40 Triple Modular Redundant (TMR) output channels per module
  • Advanced Diagnostics: Comprehensive automatic diagnostics and self-test for maximum reliability
  • Line Monitoring: Automatic point-by-point detection of open circuits, short circuits, and load faults
  • Robust Isolation: 2500V impulse withstand via opto/galvanic isolation barrier
  • Overcurrent Protection: Automatic per-channel protection, eliminating the need for external fuses
  • Sequence of Events (SOE): Onboard reporting with 1 ms resolution for precise event tracking
  • Hot-Swappable: Module can be replaced online using Companion (adjacent) Slot or SmartSlot configurations
Status Indicators
Front panel LEDs for each output indicate point status and field wiring faults.
Module status LEDs show health and operational mode (Active, Standby, Educated).
Safety & Certification
TÜV Certified for non-interfering applications (refer to T8094 safety manual).
Power Grouping: Outputs are powered in isolated groups of eight, each forming a Power Group (PG).

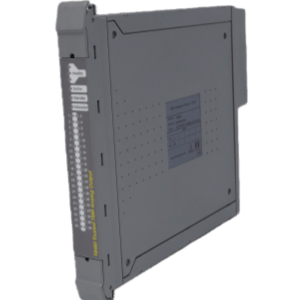

ICS Triplex T8480 module front panel layout ICS Triplex T8480 module status indicator details

The module front panel features six status indicators:
Three Healthy | One Active | One Standby | One Educated
Each Module slice directly controls the Healthy indicators. The FPU (Fault-tolerant Processing Unit) controls the Active, Standby, and Educated indicators. The FPU receives data from all Module slices, performs a 2oo3 vote on each data bit, and sets the indicators accordingly.

IndicatorStateDescription
HealthyOffNo power applied to the Module
AmberSlice is in the startup state (momentary after installation or power-up)
GreenSlice is healthy
Red - flashingFault present on the associated slice but the slice is still operational
RedThe associated slice is in the fatal state. A critical fault has been detected and the slice disabled
ActiveOffModule is not in the Active state
GreenModule is in the Active (or Maintain) state
StandbyOffModule is not in the Standby state
GreenModule is in the Standby state
EducatedOffModule is not educated
GreenModule is educated
Green - flashingModule is recognized by the Processor but education is not complete
Amber - flashingActive/Standby changeover in progress
