100MM Design Height S-120-2 Yokohama Punch Air Spring for Mechanical Punch Press

Categories Suspension Air Springs
Brand Name: AIRSUSTECH
Model Number: F-120-2
Certification: ISO/TS16949:2009
Place of Origin: Guangzhou, China
MOQ: 1 piece
Price: Negotiable
Payment Terms: T/T,,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability: 1000pcs/week
Delivery Time: 3-8 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Material: Natural Rubber
Stroke: 95 MM
Bellows Type: Single Convolution
Max. Outside O.D.: 180 MM
Yokohama: S-120-2R
Sample: Available
Quality Assurance: 1 Year
Noise Level: Lowest
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

100MM Design Height S-120-2 Yokohama Punch Air Spring for Mechanical Punch Press

100MM Design Height S-120-2 Yokohama Punch Air Spring for Mechanical Punch Press
The F-120-2 is a high-performance punch air spring designed specifically for mechanical punch press applications, offering superior shock absorption and counterbalance capabilities.
Quick Details
Type of GoodsPunch Air Spring
PurposeReduce Shock
Part NumberF-120-2
Working Temperature-40℃ to +70℃
Compatibility100% Accuracy of Fit
Cross Reference Codes
  • AIRSUSTECH F-120-2
  • ZF-120-2
  • Yokohama S-120-2
  • Yokohama S-120-2R / S-120-2r
Technical Specifications
Static height98 mm
Max. usable height148 mm
Min. usable height53 mm
Compression Max Outer Diameter180 mm
Effective Area113 cm²
Volume1.25 L
Load5.2 n/mm
Natural Frequency2.7 Hz
Primary Functions
The F-120-2 is a specific model of a pneumatic counterbalance or cushioning cylinder. Its primary functions in a mechanical punch press are:
  • Counterbalance: To offset the weight of the press slide and upper die, making the press safer and easier to adjust.
  • Shock Absorption: To cushion the impact at the bottom of the stroke, reducing noise and vibration.
  • Assist in Reversal: To help push the slide back up on the up-stroke.
AIRSUSTECH Cross Yokohama Punch Air Spring OEM Reference Chart
AIRSUSTECH NO.Yokohama Reference No.Hight H(mm)The Largest Diameter When Compressed(mm)Design High(mm)Maximum High(mm)Minimum Height(mm)
F-120-2S-120-2981809814853
Product Images

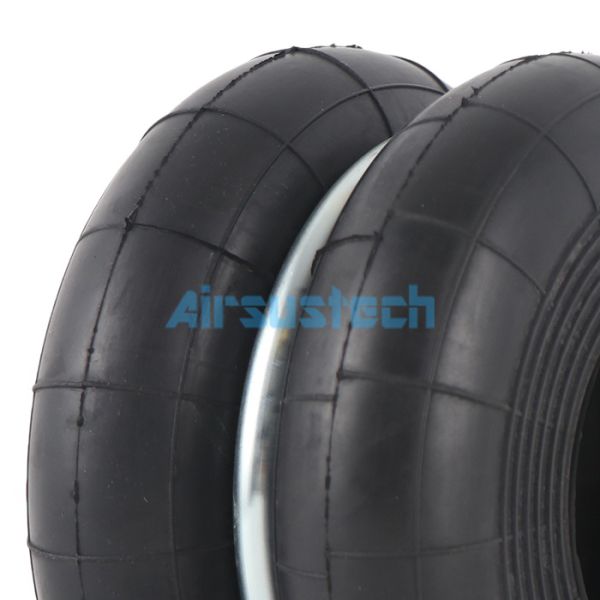

F-120-2 Punch Air Spring close-up view
F-120-2 Punch Air Spring side view
Sample Room
AIRSUSTECH sample room with various air springs

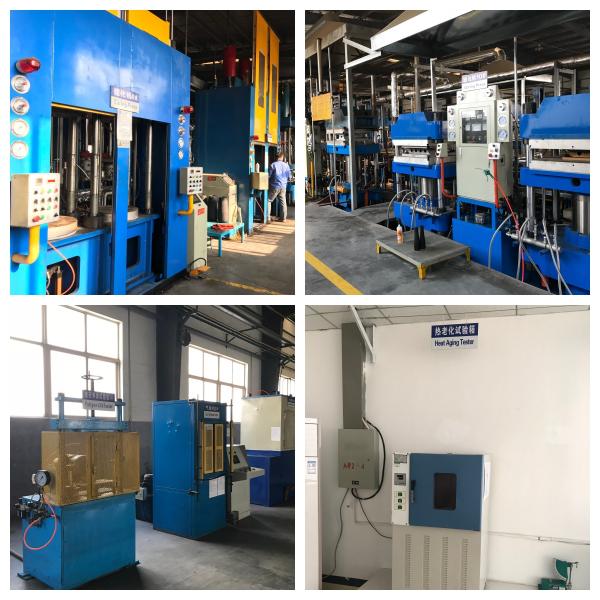

Production Equipment
Advanced manufacturing equipment for air spring production
