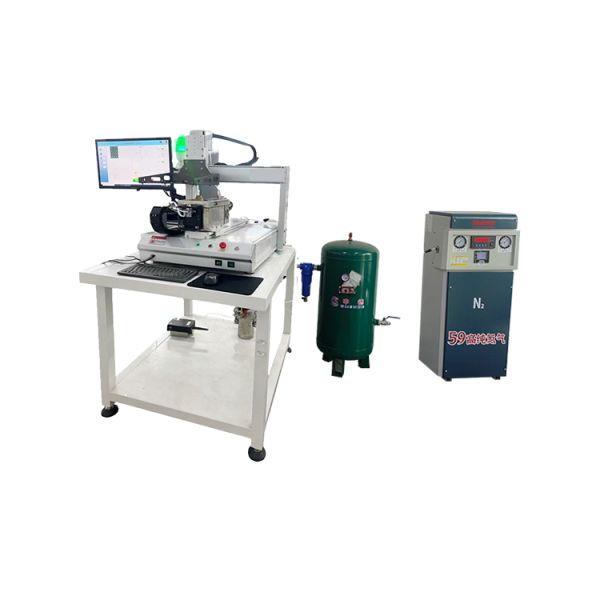

Product description
1,All in one machine, in same XYZ motion table combine selective
fluxing and soldering, compact & full function. 2,PCB board
movement, fluxer nozzle and solder pot fixed. 3,High quality
soldering. 4,Can used beside production line, flexible for
production line forming. 5,Full PC control. All parameters can set
in PC and saved to PCB menu, like moving path, solder temperature,
flux type, solder type ,n2 temperature etc, best trace-ability and
easy to get repeat soldering quality All software system developed
by base on Windows7 system, with good trace-ability. Use scanned
picture as background for path programming, moving speed, dwell
time, empty move speed, Z height , wave height etc all programmed
for different solder site. Critical parameters are totally under
monitoring by PC software, like temperature, speed, pressure etc.
Motion table was designed base on lighting concept. Servo motor and
stepping motor provide motion power, ball screw synchronous belt
and linear guide rail guide, accurate positioning, low noise, and
smooth movement Japan original injection valve, adapt to various
flux Flux is stocked by PP plastic pressure tank, make sure
pressure stable without influenced of amount of flux. Tin furnace
temperature, nitrogen temperature, wave height, etc. can be set by
computer The tin furnace liner is made of titanium alloy stainless
steel without leakage. External heating plate, uniform heat
transfer N2 online heating system, to wet the soldering perfectly
and reduce the solder dross. Load board manually and unload board
manually Metal welding structure, with thick metal plate as base,
so to reduce vibration and make machine more stable.
Key Features
- All-in-one machine combining selective fluxing and soldering in a
compact XYZ motion table
- Fixed fluxer nozzle and solder pot with moving PCB board for
precise operation
- Delivers high-quality soldering results for automotive electronics
production
- Flexible placement beside production lines for efficient workflow
integration
- Full PC control with parameter storage for consistent, repeatable
soldering quality
- Windows 7-based software with excellent traceability and intuitive
path programming
- Comprehensive monitoring of critical parameters including
temperature, speed, and pressure
- Precision motion system with servo and stepping motors for accurate
positioning
- Japanese injection valve accommodates various flux types
- Titanium alloy stainless steel tin furnace liner prevents leakage
- N2 online heating system reduces solder dross and improves wetting
- Sturdy metal welding structure minimizes vibration for stable
operation
Technical Specifications
| General Specifications |
|---|
| Model | WDS-100B |
| Dimensions | 550mm (L) × 650mm (W) × 650mm (H) |
| Power Supply | Single phase 220V 50HZ |
| Net Weight | 450KG |
| Max Solder Area | 350 × 250mm / 300 × 300mm / 350 × 300mm / 400 × 300mm |
| PCB Thickness Range | 0.2mm - 6mm |
| Position Accuracy | ±0.1 mm |
| Flux Management |
|---|
| Flux Nozzle Type | Jet valve |
| Flux Tank Capacity | 1 L |
| Solder Pot |
|---|
| Standard Pot Number | 1 |
| Solder Pot Capacity | 12 kgs/furnace |
| Max Solder Temperature | 350°C |
| N2 Management |
|---|
| N2 Temperature Range | 0-350°C |
| N2 Consumption | 1-2 m³/hour/tin mouth |
Application
Soldering Electronic componenets on PCB board.
