HDBaseT HDMI Extender with 150m Extension 4K60 Support and PoC Function for Professional AV Installation

HDBaseT HDMI Extender with 150m Extension 4K60 Support and PoC Function for Professional AV Installation

HDBaseT HDMI Extender with 150m Extension 4K60 Support and PoC Function for Professional AV Installation
HDBaseT HDMI Extender with 150m Extension 4K60 Support and PoC Function for Professional AV Installation
Categories HDBT HDMI Extender
Brand Name: Bitvisus
Place of Origin: Guangdong, China
MOQ: 1
Price: Contact us
Model Number: BIT-Ex-HDBT-4K60-150C
Certification: CE,HDMI,HDCP,RoHS,FCC
Payment Terms: T/T,PayPal
Supply Ability: 1000
Delivery Time: 5-8 days
Packaging Details: 140 mm[L]×65 mm[W]×18 mm[H]
Material: Metal
HDMI Version: HDMI 2.0b
HDCP Version: HDCP 2.2 / HDCP 1.4
Video Bandwidth: 18 Gbps
Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Audio Format: PCM 2.0
Static Protection: ±8kV (air discharge), ±4kV (contact discharge)
Dimensions: 140 mm[L]×65 mm[W]×18 mm[H]
Weight: Transmitter:160g, Receiver:155g
Max Resolution: 4K2K@60Hz
Extension Distance: 150 meters
Power Supply: AC 100~240V 50/60Hz
Power Output: DC 24V/1A
Power Consumption: 9.36 watts
Operating Temperature: 0°C~40°C / 32°F~104°F
Contact Now
Company Info.
Shenzhen Bitvisus Technology Limited
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

HDBaseT HDMI Extender with 150m Extension 4K60 Support and PoC Function for Professional AV Installation

Products Description
This HDMl 150m extender (HDBaseT) can extend high-definition audio and video signals, RS-232 signals and bi-directional IRsignals up to 150 meters between the transmitter and receiverthrough a single CAT cable. The video resolution supports up to4K2K@60Hz 4:4:4.Support 1 HDMl loop output. The receivercan de-embed the audio from the source device to the analogaudio output port AUDlO OUT. This product supports PoCfunction. In addition, this extender supports two-way infraredsignal control, that is, users can control it through lR at thesource or display end.
Product Features
1、Compatible with HDMI 2.0b,HDCP 2.2/HDCP 1.4 and DVI 1.0 2、Support 18Gbps bandwidth 3、The input and output extension distance can reach 120 meters/150 meters, and the supported resolution can reach 4K2K/1080P 4、Support 1 HDMI loop output(transmitter) 5、Supports de-embedding source device audio to analog stereooutput (receiving side) 6、With bi-directional IR, RS-232 and CEC pass-throughSupports HDR, HDR 10+, Dolby Vision and HLG functions
7、Support PoC(Power over Cable) functionReasonable design,easy to install
Specification
HDMI Compatible​
HDMI 2.0b
HDCP Compatible​
HDCP 2.2 / HDCP 1.4
Video Bandwidth​
18 Gbps
Color Space​
RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth​
8/10/12-bit (1080P 60 Hz, 4K 30 Hz, 4K 60 Hz YCbCr 4:2:2/4:2:0)
8-bit (4K 60Hz 4:4:4)
HDMI Audio Format​
LPCM 2.0/5.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
Static Protection​
Human body model: ±8kV (air discharge), ±4kV (contact discharge)
Size
Transmitter/Receiver: 140 mm[L]×65 mm[W]×18 mm[H]
Power Supply
Input: AC 100~240V 50/60Hz
Output: DC 24V/1A (with locking terminal)
Power Consumption
9.36 watts
Operating Temperature
0°C~40°C / 32°F~104°F
HDMI IN/OUT Cable​
3 meters / 10 meters / 15 meters
Relative Humidity
20~90% RH (no condensation)

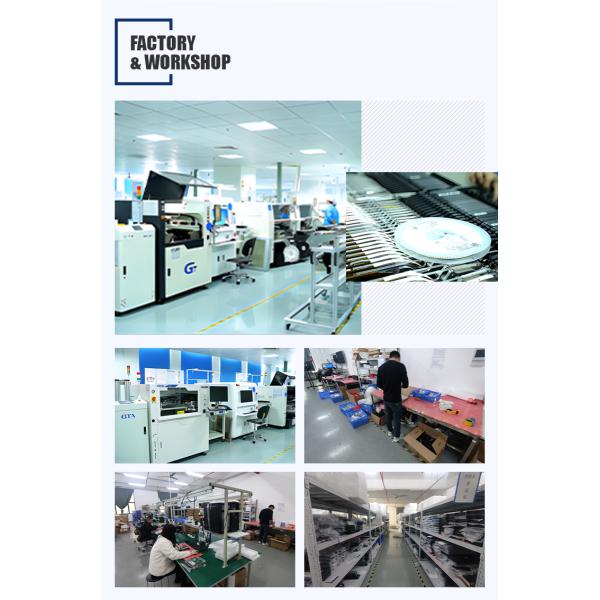

Company Profile
