| Categories | DC Worm Gear Motor |
|---|---|
| Model Number: | FT-46SGM370 |
| Brand Name: | FUTENG |
| Place of Origin: | China |
| MOQ: | 1000 Pieces |
| Price: | Negotiable |
| Certification: | CE/ROHS/FCC/REACH/ISO14001/ ISO9001/ISO45001/IATF16949 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 8000 0000 |
| Delivery Time: | 15-30 days/Negotiable |
| Packaging Details: | Standard Export Carton & Customzied |
| Continuous Current(A): | about 110mA-550mA |
| Efficiency: | 65%-73% |
| Speed(RPM): | 1rpm-600rpm |
| Commutation: | Brush |
| Construction: | Permanent Magnet |
| Frame: | 42 mm |
| Motor Mounting Type: | Flange Mount |
| Protect Feature: | Explosion-Proof |
| Rated Power: | 1-48W |
| Rated voltage: | 3-24V, 6v/12v/24v |
| Speed Rpm: | 1rpm-600rpm |
| Torque: | 18-50000 g.cm, 20/28/21/27(g.cm) |
| Type: | Gear Motor |
| Usage: | Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home |
| Warranty: | 3 months ~ 1 year |
| Geared motor model: | FT-46SGM370 |
| Gear box size: | 46*32mm |
| Voltage: | 1-24V |
| Speed: | 1rpm-600rpm |
| DC gear motors are widely used: | Robots, electronic locks, public bicycle locks, relays |
| Rotating speed: | 5000/12000/6000/9000(rpm) |
| Current: | 45/90/21/43(mA) |
| Output: | 0.88/2.96/1.12/2.2(w) |

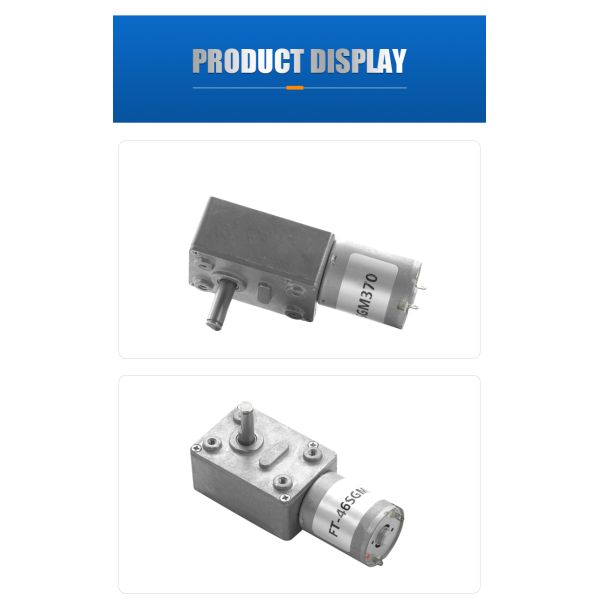

| Name: | DC Worm Gear Motor |
| Company Info. |
| Dongguan Futeng Motor Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Gearbox Data: | ||||
Gear stages | 3 | 4 | ||
Reduction ratio (K) | 69,108,138,200 | 323,412,540,1012,1320 | ||
Gear box length L(mm) | 25.5 | 25.5 | ||
Rated torque (kg·cm) | 2 | 4 | ||
Instant torque (kg·cm) | 5 | 7 | ||
Gearbox efficiency (%) | 73% | 65% | ||
Motor Data | ||||||||||||||||||
Motor Model | No Load | Load | Stall | |||||||||||||||
Motor Model | Rated Voltage | Speed | Current | Speed | Current | Output | Torque | Current | Torque | |||||||||
V | (rpm) | (mA) | (rpm) | (mA) | (w) | (g·cm) | (mA) | (g·cm) | ||||||||||
FT-370 | 6 | 5000 | 45 | 4200 | 240 | 0.88 | 20 | 1100 | 112 | |||||||||
FT-370 | 12 | 12000 | 90 | 10300 | 520 | 2.96 | 28 | 2500 | 177 | |||||||||
FT-370 | 24 | 6000 | 21 | 5100 | 110 | 1.12 | 21 | 440 | 126 | |||||||||
FT-370 | 24 | 9000 | 43 | 7800 | 210 | 2.2 | 27 | 950 | 182 | |||||||||
|
