4.2x4.5x4.1m Overall Size CNC Angle Channel Bending Heating Machine 950mm Oil Tank Stroke

4.2x4.5x4.1m Overall Size CNC Angle Channel Bending Heating Machine 950mm Oil Tank Stroke

Applicable Industry:

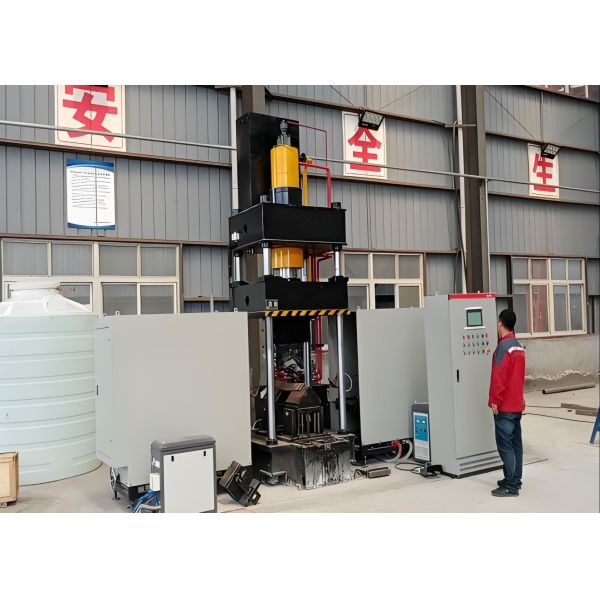

This CNC Heating Bending Equipment is specifically engineered and deployed for the precision bending processing of angle steel profiles and flat metal sheets. It addresses the core manufacturing demands of industries including structural steel fabrication, mechanical component production, and architectural metal processing. Equipped with stable forming precision and dependable operational performance, this equipment ensures that the bent angle steel and metal plates comply with the stringent dimensional and structural criteria for industrial applications, thereby facilitating the seamless and efficient implementation of subsequent downstream production processes.

Specifications:

Product Features:

1. Furnished with a numerically controlled programmable logic controller (PLC), the machine integrates a touchscreen interface for information input and real-time status feedback, thereby achieving a streamlined and user-centric operational workflow.
2. It incorporates intelligent ultrasonic frequency induction heating technology — a sophisticated engineering design that enhances production efficiency, reduces manufacturing costs, and ensures full compliance with the factory’s environmental protection standards.
3. Operating as a multifunctional integrated equipment, it eliminates the need for additional tooling and mold configuration, thereby optimizing and simplifying the overall production process arrangement.

4. Endowed with CNC control functionality, this equipment guarantees the precise forming angle of workpieces, effectively upholding product quality standards while augmenting production efficiency.
5. It is integrated with an independent hydraulic system and electrical control system — an advanced structural design that enables straightforward and trouble-free operation, delivers safe and dependable performance, and supports high production throughput.
6. For the processing of angle steel with dimensions not exceeding L100×L100×10 (mm), cold pressing technology may be employed on the condition that the bending angle is less than 5 degrees.

7. The average cycle time for cold pressing operations is 10 seconds per unit, while the heating processing cycle is 120 seconds per unit (subject to the actual processed materials and their specifications). Additionally, workpiece processing is executed once the heating temperature reaches 800 degrees Celsius (i.e., the red-hot state), with specific parameters depending on the actual material type and bending angle requirements.

8. During the workpiece heating process, following the completion of parameter configuration, operators may activate the cycle start function or engage the foot switch to initiate the fully automated operational workflow. This workflow sequentially encompasses heating feed, heating execution, retraction after heating completion, workpiece compression application, pressure head lifting, and final workpiece unloading.

9. In the combined heating and cold pressing operation, following the finalization of parameter configuration, cold pressing may be performed directly. There is no requirement for the pressure head to return to its initial position; instead, the lower pressing die rises to form a 100mm gap, facilitating convenient workpiece removal. This optimized operational process effectively enhances operational efficiency.

These specimens, derived from the production line of angle steel punching, cutting, and marking equipment, cover the standard specifications and processing scenarios extensively utilized in the angle steel tower industry. They enable users to directly verify the equipment’s processing quality, precision performance, and craftsmanship standards — core indicators that reflect the equipment’s capacity to meet the stringent operational requirements of angle steel tower manufacturing.

In the construction of ultra-high voltage (UHV) transmission lines — where transmission towers are required to withstand extreme meteorological conditions and heavy loads — this equipment plays a pivotal role in processing the angle steel components that form the main framework of the towers. It reliably performs drilling and stamping operations on the angle steel used for tower bodies, cross-arms, and other critical structural parts. This ensures exceptional dimensional accuracy and robust connectivity, thereby safeguarding the overall structural stability of the transmission towers — a fundamental prerequisite for the safe and uninterrupted operation of UHV transmission systems.
