Name: High Temp High Alumina Insulation Brick Lightweight Insulating Fire Brick
Brand: LEADSUN
Price: 1 USD

Home > Wires, Cables & Cable Assemblies >

High Temp High Alumina Insulation Brick Lightweight Insulating Fire Brick

Categories	High Alumina Insulation Brick
Brand Name:	LEADSUN
Model Number:	INSULATION BRICK
Certification:	ISO
Place of Origin:	CHINA
MOQ:	500 pcs
Price:	Negotiable
Payment Terms:	L/C,D/P,T/T,Western Union
Supply Ability:	1000 tons/month
Delivery Time:	12 days
Packaging Details:	Pallet
Refractoriness:	900-1500C
Size:	23011465mm 23011475mm
Density:	0.5-1.3g/cm3
Package:	Pallet
Shape:	Customizable
Color:	White or Pink

Contact Now

Add to Cart

Company Info.

Qingdao Leadsun Refractory Co., Ltd

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

High Temp High Alumina Insulation Brick Lightweight Insulating Fire Brick

High Temperature High Alumina Insulation Brick Lightweight Low Thermal Conductivity Energy Saving

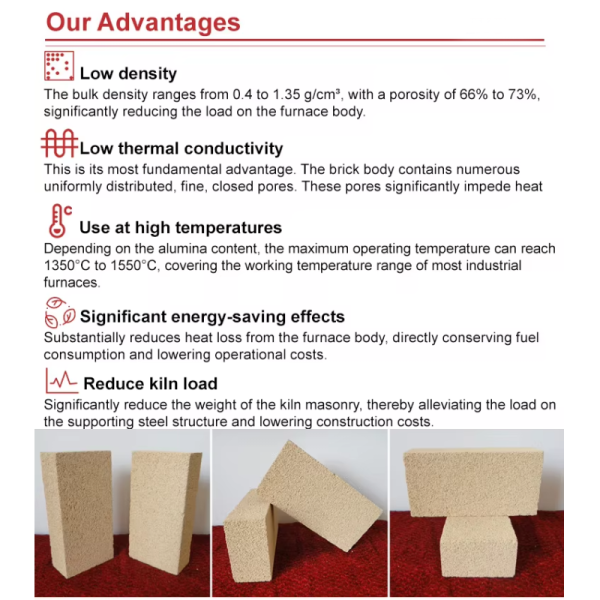

Light Weight High Alumina Brick, also known as high-aluminium heat insulating brick, Light weight high alumina bricks contain more than 48% alumina oxide. The refractory temperature can reach 1770 degrees, and the usable temperature can reach 1550 degrees.which has such advantages as high porosity, small volume density, good insulation effect, high mechanical intensity, small thermal conductivity and long service life. For various industrial kilns & furnaces, it is a kind of essential refractory for energy saving and temperature preservation.

Introduction of High Alumina Insulation Brick

Light Weight High Alumina Brick, also known as high-aluminium heat insulating brick, are used in building heat insulating walls or heat preserving walls, which is basically for preserving or insulating heat. Light weight high alumina bricks contain more than 48% alumina oxide. This kind of brick does not directly exposed to high temperature inside kilns or furnaces, it only built closely to the kiln wall as insulations. It is a good insulation refractory material, which has a high compressive strength, low thermal conductivity and good insulation quality.

High Alumina Insulation Brick Features

1. High refractoriness, can reach 1650-1800ºC, can contact with the flame directly, suitable for various atmosphere.

2. High mechanical intensity.

3. Low levels of iron and other impurities.

4. Good thermal shock resistance.

5. Chemical stability.

6. High porosity, low volume density, good thermal insulation effect,energy-efficient.

7. Low thermal conductivity, stable quality.

8. Excellent thermal shock resistance.

9. Strong resistance to the corrosive gas and slag.

High alumina poly light insulation brick physical and chemical performance index

Brand

Items

LG-1.2

LG-1.0

LG-0.8

LG-0.7

LG-0.6

LG-0.5

Al2O3 %

≥48

≥48

≥48

≥48

≥48

≥48

Fe2O3 %

≤2

≤2

≤2

≤2

≤2

≤2

Bulk Density g/cm3

≤1.2

≤1.0

≤0.8

≤0.7

≤0.6

≤0.5

Cold Crush Strength,MPa

≥4.5

≥4.0

≥3.0

≥2.5

≥2.0

≥1.5

Permanent Linear Change Rate,%

1400℃×12h ≤2

1400℃×12h ≤2

1400℃×12h ≤2

1350℃×12h ≤2

1350℃×12h ≤2

1250℃×12h≤2

Thermal Conductivity W/(m·K)
350±25℃

≤0.55

≤0.50

≤0.35

≤0.35

≤0.30

≤0.25

Application of High Alumina Insulation BrickLight Weight High Alumina Brick is used in parts that is not exposed to abrasions and high temperature of melted matters. They should not be applied in environment that has a temperature higher than 1350ºC. .As a low price refractory material, the light weight high alumina bricks are applied in: .Furnace Lining And Insulation Layers .Ceramic Tunnel Kiln .Roller Kiln .Shuttle Kiln .Heating Furnace & Coking Furnace In Iron And Steel Industry .Other Thermal Equipment & Heat Treatment Lining

Product Tags:


*From:	Your email address is incorrect!
*To:	Qingdao Leadsun Refractory Co., Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

High alumina poly light insulation brick physical and chemical performance index
	Brand
Items	LG-1.2	LG-1.0	LG-0.8	LG-0.7	LG-0.6	LG-0.5
Al2O3 %	≥48	≥48	≥48	≥48	≥48	≥48
Fe2O3 %	≤2	≤2	≤2	≤2	≤2	≤2
Bulk Density g/cm3	≤1.2	≤1.0	≤0.8	≤0.7	≤0.6	≤0.5
Cold Crush Strength,MPa	≥4.5	≥4.0	≥3.0	≥2.5	≥2.0	≥1.5
Permanent Linear Change Rate,%	1400℃×12h ≤2	1400℃×12h ≤2	1400℃×12h ≤2	1350℃×12h ≤2	1350℃×12h ≤2	1250℃×12h≤2
Thermal Conductivity W/(m·K) 350±25℃	≤0.55	≤0.50	≤0.35	≤0.35	≤0.30	≤0.25
