3000W 700V UV Mercury Lamp with Ceramic Head Base for Industrial Curing Applications

3000W 700V UV Mercury Lamp with Ceramic Head Base for Industrial Curing Applications

3000W 700V UV Mercury Lamp with Ceramic Head Base for Industrial Curing Applications
3000W 700V UV Mercury Lamp with Ceramic Head Base for Industrial Curing Applications
Categories UV Curing Lamp
Brand Name: UVIR
Model Number: XUV 025030 AC
Certification: CE
Place of Origin: China
MOQ: 10
Price: Negotiable
Payment Terms: L/C,T/T,Western Union
Delivery Time: 15-20 Work day
Packaging Details: Each lamp in a cylinder .Then in a professional plywood box.
Type: Mercury lamp
Lifetime: 800-1000h
Total length: 115-1430mm
Power: 0.4-22Kw
Head Base: Ceramic
Usage: Electronic components ,Printing，Furniture,Decorative materials and other industries curing
Contact Now
Company Info.
Guangdong Youhui Technology Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

3000W 700V UV Mercury Lamp with Ceramic Head Base for Industrial Curing Applications

Product Specifications
AttributeValue
TypeMercury lamp
Lifetime800-1000h
Total length115-1430mm
Power0.4-22Kw
Head BaseCeramic
UsageElectronic components, Printing, Furniture, Decorative materials and other industries curing
Product Overview
New Arrival Ultraviolet Mercury Quartz 700V 3000W UV Curing Lamp

This high-performance UV curing lamp is designed for offset printing machines, offering efficient curing with 3000W power output and 700V operating voltage.

UV Curing Industry Applications

Since its introduction in the 1960s, UV curing has become a multi-billion dollar industry worldwide, currently accounting for about 4% of the industrial coatings market. The technology grows by more than 10% annually, replacing traditional thermal curing processes with increased productivity, improved product quality, and environmental benefits.

Key Advantages of UV Curing
  • Significantly improved physical properties of inks, coatings and adhesives
  • Faster production speeds and increased capacity
  • Reduced work-in-progress inventory
  • Minimized setup and cleanup labor
  • Environmentally friendly - energy efficient with no emissions
  • Increased production yield with reduced waste
700V 3000W UV Mercury Lamp for offset printing
Technical Parameters
ParameterValue
Power output0.4-22KW
Wavelength365nm
Arc length50-1530mm
MaterialHigh Quality Quartz Tube
End capsCeramic / metal
Service life800 to 1000 hours

The lamp can be customized according to specific requirements.

Product Details

Additional Model Specifications
Model No.Power (KW)Voltage (V)Current (A)Total Length (mm)Arc length (mm)Tube Φ (mm)Lamp BaseWave Peak
XUV 005004 FC0.49051155017FC365nm
XUV 020010 BC1135833520022BC365nm
XUV 025020 AC23007.540025022.5AC365nm
XUV 025030 AC3700536025025AC365nm
XUV 025040 DC43201433025025DC365nm
XUV 070056 BC5.69507.282570025BC365nm
XUV 050060 AC68507.864050022.5AC365nm
XUV 065070 HC79287.478065322.5HC365nm
XUV 100080 BC885091172102822.5BC365nm
XUV 124096 AC9.6150081387124725AC365nm
XUV 112100 AC1015007.21260112023AC365nm
XUV 130120 AC1218007.51440130025AC365nm
XUV 120144 AA1423006.31328120026AA365nm
XUV 077150 AH1512501287077025AH365nm
XUV 107160 AC16200081185107028AC365nm
XUV 150180 BC18173010.61600150025BC365nm
XUV 105199 DC19.9660301145105527DC365nm
XUV 143200 AC222000111430153028AC365nm
Primary Applications
  • UV Printing: Offset plate, letterpress, flexo, inkjet, glue, hot melting, and inseparable linked printing
  • UV Painting: For CDs, electronic components (PCBs, resistors), film coating, photo conductors, wood, plastic, and 3D objects
  • UV Disinfection: Sterilization of food packaging materials, air, and packaging films
  • UV Adhesion: For DVDs, electronic components, display screens, sensors, glass, jewelry, furniture, and medical devices
  • UV Embedment: Curing in glass industry, electronic components, medical technology, optical products, and stone manufacturing

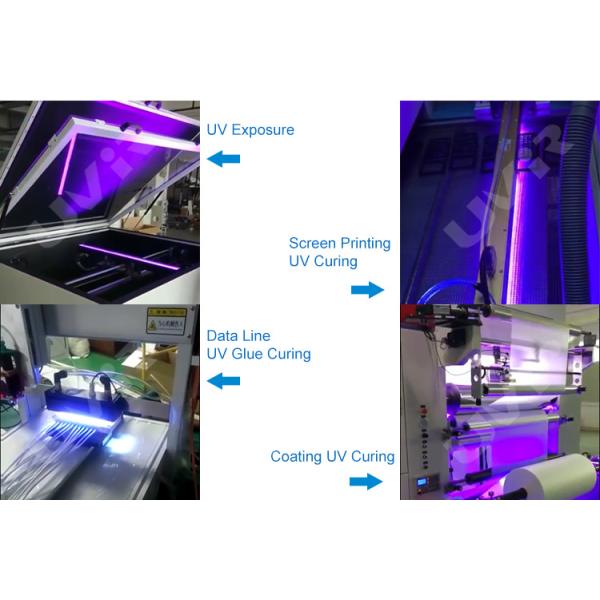

UV lamp applications in industrial settings UV lamp technical specifications diagram
Frequently Asked Questions
Q1: Are you factory or trading company?
A: We are trading company with factory.
Q2: Can I have a sample first before bulk order?
A: Yes. We offer you free sample to test the quality, you only undertake the freight.
Q3: What's your delivery date?
A: 5-7 working days for samples and 15-25 days for bulk order.
Q4: What's your shipping ways?
A: 1. By Express: TNT, DHL, FedEX, UPS, EMS, etc... Door to door
2. By Air: Please let us know your airport.
3. By Sea: Please let us know your delivery port.
Q5: What's your MOQ?
A: Our MOQ is 10pcs. First order as samples can be less than 10 pcs.
Q6: Are the products safe enough?
A: Our products have been tested thoroughly and are certificated by numerous internationally recognized regulatory bodies and safety organizations.
