| Categories | Paper Sheeter Machine |
|---|---|
| Brand Name: | CHM Machinery |
| Model Number: | CHM-1400/1700/1900 |
| Certification: | CE |
| Place of Origin: | CHINA |
| MOQ: | 1 set |
| Price: | 60000-120000 |
| Payment Terms: | L/C,D/A,D/P,T/T |
| Supply Ability: | 200 sets |
| Delivery Time: | 90 days |
| Packaging Details: | Stretch Film, shipping mark, bubble wrap |
| Cutting Way: | Top blade rotary, bottom blade fixed |
| Refence weight of cutting paper: | 60-550GSM |
| Cutting accuracy: | ±0.5mm |
| Max cutting speed: | 300sheets/min |
| Max.cutting meter speed: | 300m/min |
| Cutting length range: | 450-1650mm |
| Max scroll diameter: | 1800mm |
| Stacking height Of paperboard: | 1500mm(59") |
| Company Info. |
| Cheung Kong Machinery (HK) Limited |
| Verified Supplier |
| View Contact Details |
| Product List |
| Cutting Way | Top blade rotary, bottom blade fixed |
| Reference weight of cutting paper | 60-550GSM |
| Cutting accuracy | ±0.5mm |
| Max cutting speed | 300sheets/min |
| Max.cutting meter speed | 300m/min |
| Cutting length range | 450-1650mm |
| Max scroll diameter | 1800mm |
| Stacking height Of paperboard | 1500mm(59") |
Ac servo-driven system for exceptional speed, precision, and efficiency. The single rotary sheeter machine utilizes a fixed bottom knife with rotating upper knife design, while the double-rotary version features synchronous upper and lower knives.
The system can be configured with multiple Unwind Stands to handle various paper types simultaneously, including 70 gram double-sided paper with 4-6 rolls processed concurrently.
Ideal for processing a wide range of materials including board paper, art paper, and kraft paper. Widely used in printing, packaging, and paper supply industries.
| CHM Type | CHM-1400 | CHM-1700 | CHM-1900 |
|---|---|---|---|
| Max.paper-cutting width | 1400mm | 1700mm | 1900mm |
| Weight | 12000kg | 13000kg | 14000kg |
| Dimension (LxWxH) | 12518mm*3853mm*2230mm | 12518mm*4153mm*2230mm | 12518mm*4353mm*2230mm |
1) Style: Adjustable slitting knife and exhaust tube for waste edge on both sides.
2) Top slitter: Adjustable up or down, slitting width can be adjusted manually.
3) Bottom slitter: Fixed position, slitting width adjustable manually.
4) Windmill: Driven motor system.
5) Type-Y collecting pipe: For efficient waste edge collection.
Type: Tool Apron fixed in British style for maximum efficiency.
Control Way: Automatically adjusts paper squareness based on touch screen calibration.
Type: Anti-static bar effectively eliminates static in sheets.

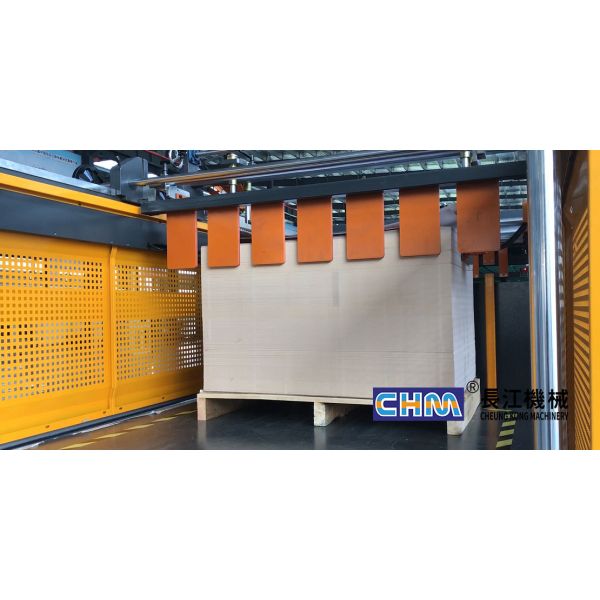

Type: Horizontal conveying with multi-stage design for efficient counting and piling (includes high efficiency dust collecting equipment).
The first conveying stage: Quickly separates cut paper.
The Second conveying stage: Conveys paper in tile formation at slower speed with single or linkage acting control.
Type: Precise insertion after counting.
Function:
A) Operates according to requirements after inputting paper piece count in HMI.
B) Refills defective products automatically.
Automatically controls tension based on paper roll diameter and weight input into touch screen.
Features precision sensing nozzle for fast detection of various web lines with high sensitivity.
CHM Machinery specializes in paper sheeter machines and A4 production lines, with manufacturing facilities established in 2004. After 21 years of development, we've grown into a professional manufacturer with three factories spanning nearly 140,000 square meters in Guangdong, Shandong, and Jiangsu.
As the world's second largest sheeting machine manufacturer with independent production capacity, we maintain a professional R&D team and after-sales service network. Our single knife sheeter technology has been cutting paper rolls since 2006, with annual sales exceeding 200 units distributed to over 100 countries worldwide.
We offer customized solutions based on your specific paper type, gram weight, width, and capacity requirements. Contact us for detailed inquiries.
We work with major paper mills including Sun Paper, ND Paper, Double A, APP, Onhing Paper, MYS, Chenming Paper, JHE Paper, and C&CJOINTPRINTING CO.(HK)LID.
All parts are guaranteed for one year, with lifetime maintenance support from CHM Machinery. Outside warranty periods, we provide spare parts and services at preferential prices with prompt response.
We implement strict quality control measures including pre-production samples and final inspection before shipment.
We manufacture paper sheeter machines, paper cutters, copy paper and packaging machines, and cut-to-size paper solutions. As the only Hong Kong brand sheet machinery producer in China with the second largest facility worldwide, we hold over 110 patents and maintain a dedicated R&D team.
Headquartered in Guangdong, China since 2010, we serve global markets including East Asia (10%), Africa (5%), South America (5%), Domestic Market (3%), Northern Europe (3%), and other regions worldwide. Our organization employs 101-200 professionals.
|
