Plastic Tube Filling Ultrasonic Sealing Machine Semi Automatic for Shampoo

Categories Tube Filling Sealing Machine
keyword: hand cream tube filling sealing machine
Model Number: CM-TFS-01
Capacity: 20-30tubes/min.
Voltage: 220V
Packaging Details: wooden cases
Product name: Automatic plastic tube filling and sealing machine
Dimension: L900*W1100*H1600mm
Supply Ability: 10000 set
Weight: 380KG
Structure: Rotary
Filling nozzle: 4/6/8/10/12
Advantage: ultrasonic sealing system
MOQ: 1 SET
Function: filling+sealing+cutting+recycling
Keyword 2: soft tube filling and sealing machine
Price: 1000-100000 USD
Payment Terms: TT
Material: 304+SS316L
Brand Name: COSMATI
Certification: CE
Delivery Time: 7 work days
Place of Origin: GUANGZHOU,CHINA
Filling range: 10-250ml can be customized
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

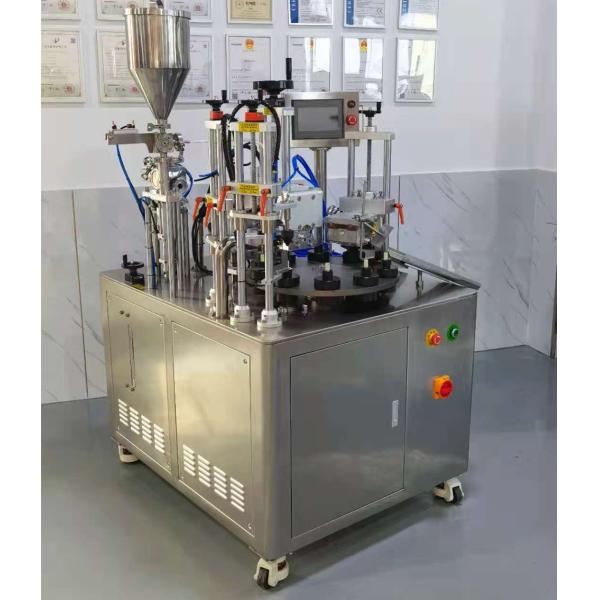

Plastic Tube Filling Ultrasonic Sealing Machine Semi Automatic for Shampoo

Semi automatic plastic tube filling and ultrasonic sealing machine for shampoo

Introduction
The soft tube filling and sealing machine is suitable for all kinds of plastic tubes, aluminum-plastic composite tubes, automatic filling and sealing, color coding, date printing, trimming and tube outlet, and is widely used in daily chemical, pharmaceutical and food industries.

Description

Features

3. This machine manually completes a series of actions such as dropping the tube,automatic labeling, filling, sealing and printing, cutting the tail, and outputting the finished product;
2. This machine is equipped with safety device, no tube no filling, no tube no tail sealing, tail cutting, overload protection;
1. Suitable for filling sealing soft tubes, such as toothpaste, hand cream, eye cream, face cleanser, shampoo, hair dye, etc. It is an ideal equipment for cosmetic tube.

Flow

1. Automatic drop pipe: the plastic tube is placed in the collection tank, and the opening is placed outward. The tubes are
controlled by the swing mechanism to enter the drop tube channel one by one. The drop tube mechanism swings back and forth 90° to place the hose into the tube seat below to complete the drop tube action.
2. Automatic alignment: the turntable drives the hose to the alignment station, and the photoelectric switch is used to identify the alignment mark on the hose, so that all the hoses face the same direction.
3. Automatic filling: The filling part consists of filling head, material tank and other parts. The piston is driven by the pneumatic element to squeeze the material and pour the material into the lower hose. The filling volume can be controlled by controlling the extrusion time, from 20g to 250g.
4. Ultrasonic sealing: The plastic molecules are oscillated by ultrasonic waves and fused with each other to achieve the purpose of sealing, which can be sealed under different conditions.
5. Removal of waste edges: automatic edge trimming, cutting off excess waste edges at the tail of the hose after sealing, making the tail smoother, and can cut out a variety of tails of different shapes or lines to meet the design requirements.

Technical parameter
Capacity
Dimension(mm)
Power supply
Sealing diameter
Filling accuracy
20-25 tubes/min.
L900*W1100*H1600mm
220v/380v, 2.6KW
16-50mm
±1%
Filling range
Weight
Hopper volume
Sealing height
Body material
6-60ml/10-120ml/
25-250ml(Optional)
380KG
40L
50-250mm
SUS304

Structure

Detailed pictures


Application

Factory profile
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 0
Engineer case
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 1
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 2
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 3

Trade show participation
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 4
Packaging & shipping specifications
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 5

FAQ

1. What products can this tube filling and sealing machine handle?
This machine is suitable for compatible hand cream, lotion, facial cleanser, cosmetic gel, ointment, cream and other liquid or paste products packed in soft tubes.

2. What type of tubes can the machine process?
It is mainly designed for compatible plastic and soft cosmetic tubes. The exact tube material and wall structure should be confirmed before selecting the sealing system.

3. Is this machine suitable for hand cream tubes?
Yes. Hand cream is one of the typical applications of this soft tube filling and sealing machine.

4. Can it fill cosmetic cream and lotion?
Yes. Compatible cream, lotion, gel and other cosmetic materials can be filled after matching the filling nozzle and dosing system to the product viscosity.

5. Can it fill facial cleanser?
Yes. Compatible facial cleanser and similar semi-viscous personal-care products can be processed.
