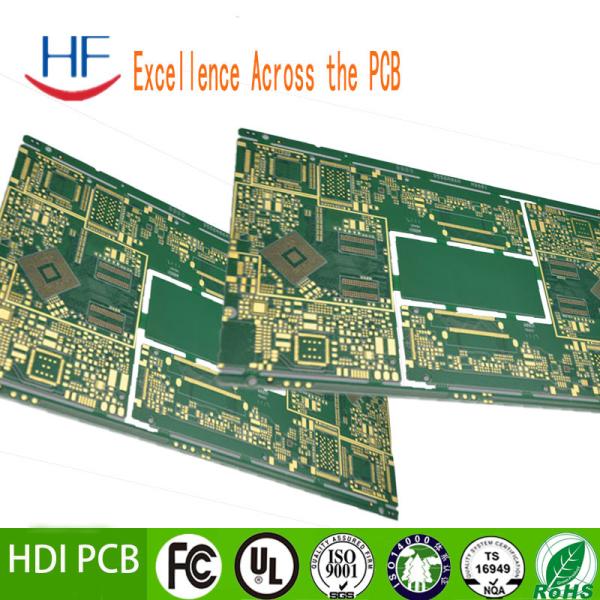

| Categories | PCB Circuit Board |
|---|---|
| Brand Name: | HF |
| Model Number: | HF |
| Place of Origin: | China |
| MOQ: | 5PCS |
| Price: | Negotiable |
| Delivery Time: | 5~8 days |
| Packaging Details: | box |
| Certification: | ISO CE |
| Payment Terms: | L/C, T/T,PAYPAL |
| Material:: | green, yellow,white, blue,black,red |
| layer count: | 1-32 |
| board thickness: | 0.4-3.2mm |
| copper thickness: | 1-4oz |
| solder color: | green, yellow,white, blue,black,red |
| silkscreen color: | white,black,yellow |
| surface finishing: | HASL(lead Free) / Immersion Gold /osp / Immersion tin/Immersion silver |
| service: | One Stop Turnkey service,PCBA |
| Material: | FR4 ,Rogers , Aluminum ,High TG,CEM1, CEM3, Halogen Free |
| Layer Coun: | 1-40 |
| Solder Mask color: | green, yellow,white, blue,black,red |
| Test: | 100% AOI, X-ray, Flying probe test. |
Parameter:
| Product name | FR4 PCB | Double side | 4 layer | 6 layer | 8 layer | 10-28layer |
| layer | Single side | Double side | 4 layer | 6 layer | 8 layer | 10-28layer |
| Base Maerial | FR4 | FR4,Alu,polymide | FR4 | FR4 | FR4 | FR4 |
| Copper thickness | 1-6OZ | |||||
| Min.Hole size | 0.1mm | |||||
| Min.Line Width | 0.1mm | |||||
| Surface finishing: | HASL / HASL lead free, HAL, Chemical tin, Chemical Gold, Immersion Silver/Gold, OSP, Gold plating | |||||
| Solder masker color | green,red,black,white,yellow | |||||
| Silkscreen color | black,white,yellow | |||||
| Tolerance | - Shape tolerance: ±0.13 - Hole tolerance: PTH: ±0.076 NPTH: ±0.05 | |||||
| Special requirements | Buried and blind vias+controlled impedance +BGA | |||||
PCB data sheets
| PCB SIZE | 97 x 97mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Multilayer PCB, 10 Layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 35um(1oz)+plate TOP Signal |
| 4mil prepreg | |
| copper ------- 18um(0.5oz) GND Plane | |
| 5mil FR-4 | |
| copper ------- 18um(0.5oz) SIG1 | |
| 5mil prepreg | |
| copper ------- 18um(0.5oz) SIG2 | |
| 5mil FR-4 | |
| copper ------- 18um(0.5oz) PWR Plane | |
| 13mil prepreg | |
| copper ------- 18um(0.5oz) GND Plane | |
| 5mil FR-4 | |
| copper ------- 18um(0.5oz) SIG3 | |
| 5mil prepreg | |
| copper ------- 35um(1oz) SIG4 | |
| 5mil FR-4 | |
| copper ------- 35um(1oz) GND Plane | |
| 4mil prepreg | |
| copper ------- 35um(1oz)+plate BOT Signal | |
| TECHNOLOGY | |
| Minimum Trace and Space: | 5.5mil/5mil |
| Minimum / Maximum Holes: | 0.0.5/2.0mm |
| Number of Different Holes: | 2 |
| Number of Drill Holes: | 532 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | NO |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4, ITEQ IT-180, TG>170, er<5.4 |
| Final foil external: | 1.5oz |
| Final foil internal: | 1oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Electroless Nickle over Immersion Gold (ENIG)( 1 µ" over 100 µ" nickle) |
| Solder Mask Apply To: | Top and Bottom, 12micon Minimum. |
| Solder Mask Color: | Blue, Kuangshun, KSM-6189BL04 |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing, Fiducial marks |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, IJR-4000 MW300, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and leged FREE AREA |
| VIA | Plated Through Hole(PTH), via tented. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Signal processor |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Advantages
a) High Tg FR-4 epoxy glass and Prepreg. Industrial standard
material with high Tg (175℃ by DSC) and excellent thermal
reliability.
b) Lead-Free Assembly Compatible, RoHS compliant and suitable for
high thermal reliability needs, and Lead free assemblies with a
maximum reflow temperature of 260℃
c) 100% tests inclusive of electrical test and AOI inspection.High
voltage test, Impedance control test, micro-section, solder-ability
test, thermal stress test, reliability test, insulation resistance
test and ionic contamination test etc.

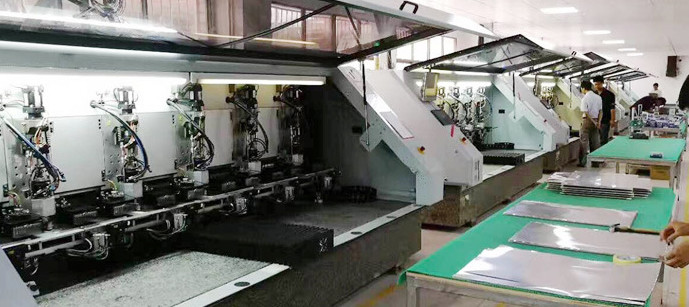

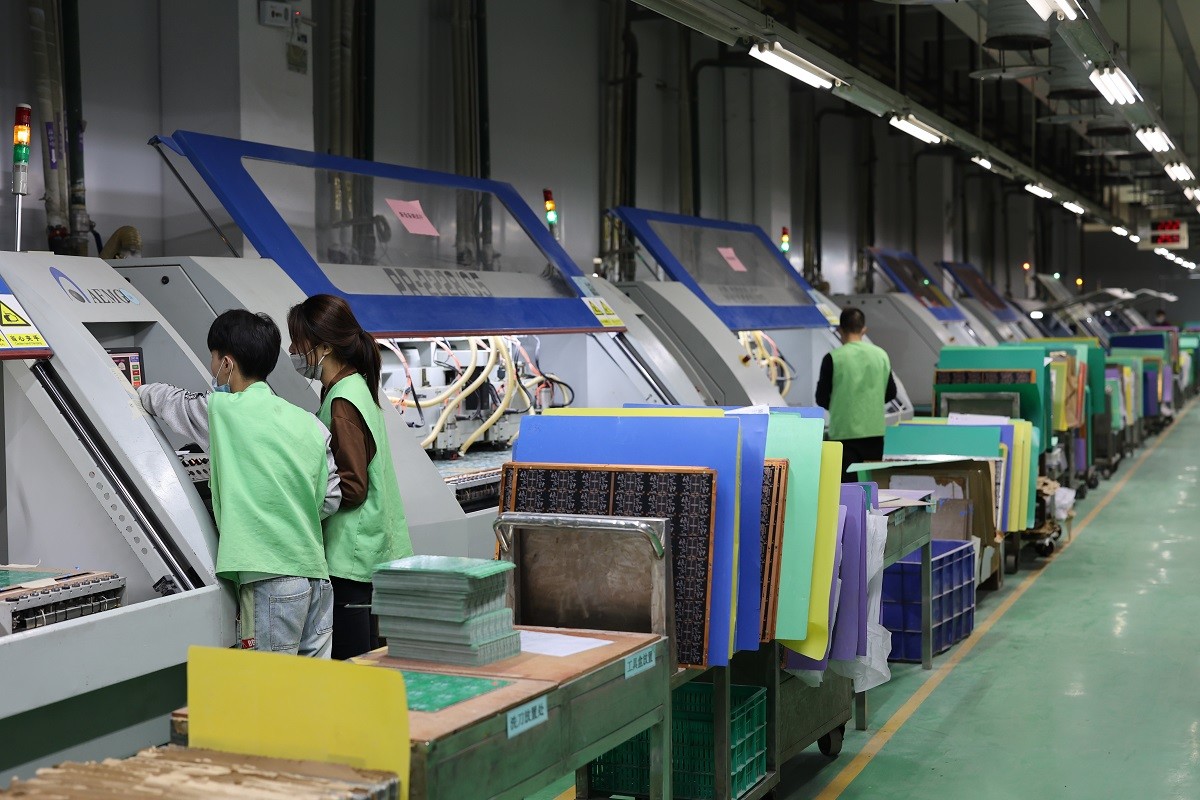

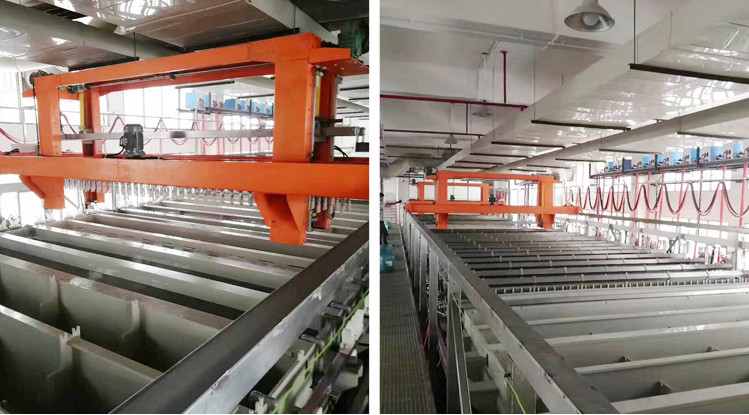

d) Meeting your printed circuit board needs from PCB prototyping to
mass volume production.
