10hp Industrial Chiller Integrated System Hermetic Scroll Type

Categories Portable Water Chiller
Brand Name: ANGES
Model Number: 10hp
Place of Origin: China
MOQ: 1
Payment Terms: L/C, T/T
Delivery Time: 30 days
Packaging Details: Plywood case
Voltage: 3PH~220V/380V/415V~50HZ/60HZ
Condenser Quantity: 1
Protection System: Overload/High Pressure/Low Pressure
Type: Air-cooled type
Pump Pressure: 2 bar
Water Tank: 200L
Fan Power: 0.92kw
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

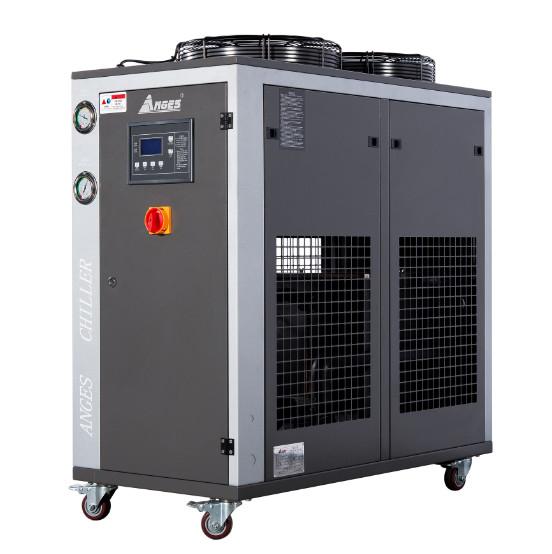

10hp Industrial Chiller Integrated System Hermetic Scroll Type

Model

Item

AC-10(D)
Nominal cooling capacityKcal/h25886
kw29
Input powerkw11.22
Power supply3PH~380V/50HZ
RefrigerantTypeR22
Type of controlExpansion valve
CompressorTypeHermetic scroll type
Power (kw)8.8
CondenserType

Finned copper tube+low noise outer

rotor fan

Power(kw)0.92
Cooling air flow(m3 /h)10000
EvaporatorTypeWater tank with coil
Chilled water flow(m3 /h)5
Tank volume(L)200
Inlet/outlet pipe chiller(inch)1-1/2
Water pumpPower(KW)1.5
Lift(m)20
Safety protectioncompressor over temperature, over-current protection, high and low pressure protection, over -temperature protection ,flow switch protection,phase sequence or missing phase protection,exhaust overheating protection
Net weightkg450
Dimensionmm1530*780*1630

Note: 1. Nominal cooling capacity is according to:

Inlet chilled fluid temperature: 17℃, Outlet chilled fluid temperature: 12℃

Inlet cooling air temperature: 30℃,Outlet cooling air temperature: 35℃

2. Working Range:

The temperature range of chilled fluid is from 5℃ to 35℃;

Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.

It is better to run the chiller while the ambient temperature at or below 35℃.

We reserve the right to modify the above dimensions or parameters without further notice.
