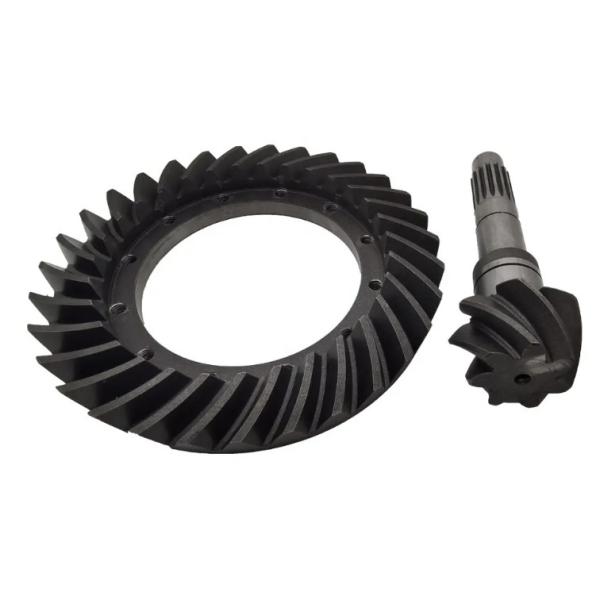

High Precision Bevel Gear Spiral Smooth Finished Wear Resistance

Product Description:

The Spiral Bevel Gear comes in two shapes: bevel and cylindrical gear. The bevel gear is commonly used in applications that require high-speed and high-power transmission, while the cylindrical gear is often used in low-speed and low-power applications. The gear is available in right-hand and left-hand directions, allowing for greater flexibility in design and installation.

The product has a surface finishing of polishing and powder coating, which increases its durability and resistance to wear and tear. The polishing provides a smooth and seamless finish, while the powder coating protects the gear from corrosion and other environmental factors.

The Spiral Bevel Gear also features a spline with 29 teeth. This spline provides a secure and precise connection between the gear and the shaft, ensuring maximum efficiency and performance.

It is important to note that the Spiral Bevel Gear is different from the Ring gear and Helical Gear. While the Ring gear is a type of gear that is used in the differential systems of vehicles, the Helical Gear is a type of gear that is used in parallel and perpendicular shafts. The Spiral Bevel Gear is uniquely designed to transmit motion at a right angle between intersecting shafts.

Features:

• Product Name: Spiral Bevel Gear
• Lubrication: Oil
• Operating Temperature: -40 To 150 Degrees Celsius
• Feature: Long Using Life,Anti-oil
• Spline: 29
• Tolerance: ±0.01mm

Technical Parameters:

Applications:

The Spiral Bevel Gear is essential for transferring power between perpendicular shafts with high efficiency. The helical gear design ensures a smooth, quiet operation and can handle more torque than other types of gears. These gears are commonly used in heavy-duty machinery such as mining equipment, construction equipment, and industrial machinery.

The Ring Gear is one of the most important components of the Spiral Bevel Gear system. It is responsible for transferring the power from the pinion gear to the larger gear. The design of the Ring Gear allows for a large gear ratio, making it ideal for applications where a high torque output is required. The Spiral Bevel Gear is known for its durability and longevity, making it a reliable component in heavy-duty machinery.

The Spiral Bevel Gear can be used in a variety of scenarios, including automotive, aerospace, and marine applications. The gears are used in the transmission system of vehicles to transfer power from the engine to the wheels. In aerospace, the gears are used in the rotor system of helicopters and airplanes to control the movement of the aircraft. In marine applications, the gears are used in the propulsion system of boats and ships.

The Spiral Bevel Gear has a ground surface finish and can be polished or powder-coated to provide additional protection against wear and tear. The tolerance level of the gear is ±0.01mm, ensuring a high level of accuracy and precision. The Spiral Bevel Gear is a versatile and reliable component that can be used in a wide range of industrial applications.
