Anti Drone System Portable Drone Detection and Jamming Shield

Categories Anti Drone System
Brand Name: MYT
Model Number: DR500-AB
MOQ: 1
Payment Terms: TT, LC
Supply Ability: 1000units per month
Delivery Time: 10 work days
Place of Origin: China
Price: Pricing is negotiable based on order quantity
Detection Distance: ≥2km (depends on working conditions and drone models)
Jamming Distance: ≥2km (depends on working conditions and drone models)
Detection Frequency Bands: 400MHz-1500MHz, 2200-2500MHz, 5150-5950MHz
Jamming Frequency Bands: 900MHz, 1.2GHz, 1.5GHz, 2.4GHz, 5.2GHz, 5.8GHz
Certification: CNAS、CMA、CAL、ILAC-MRA
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

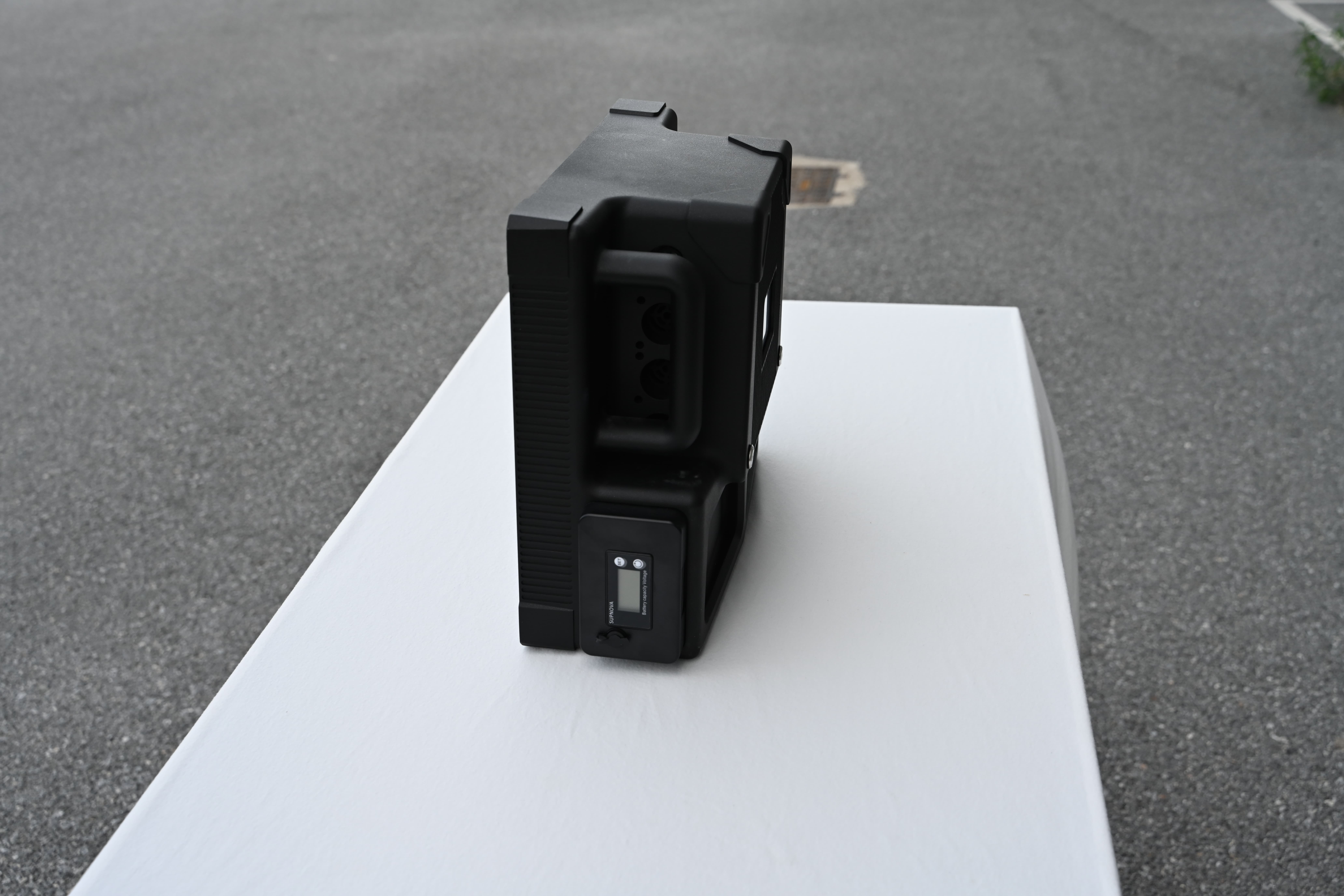

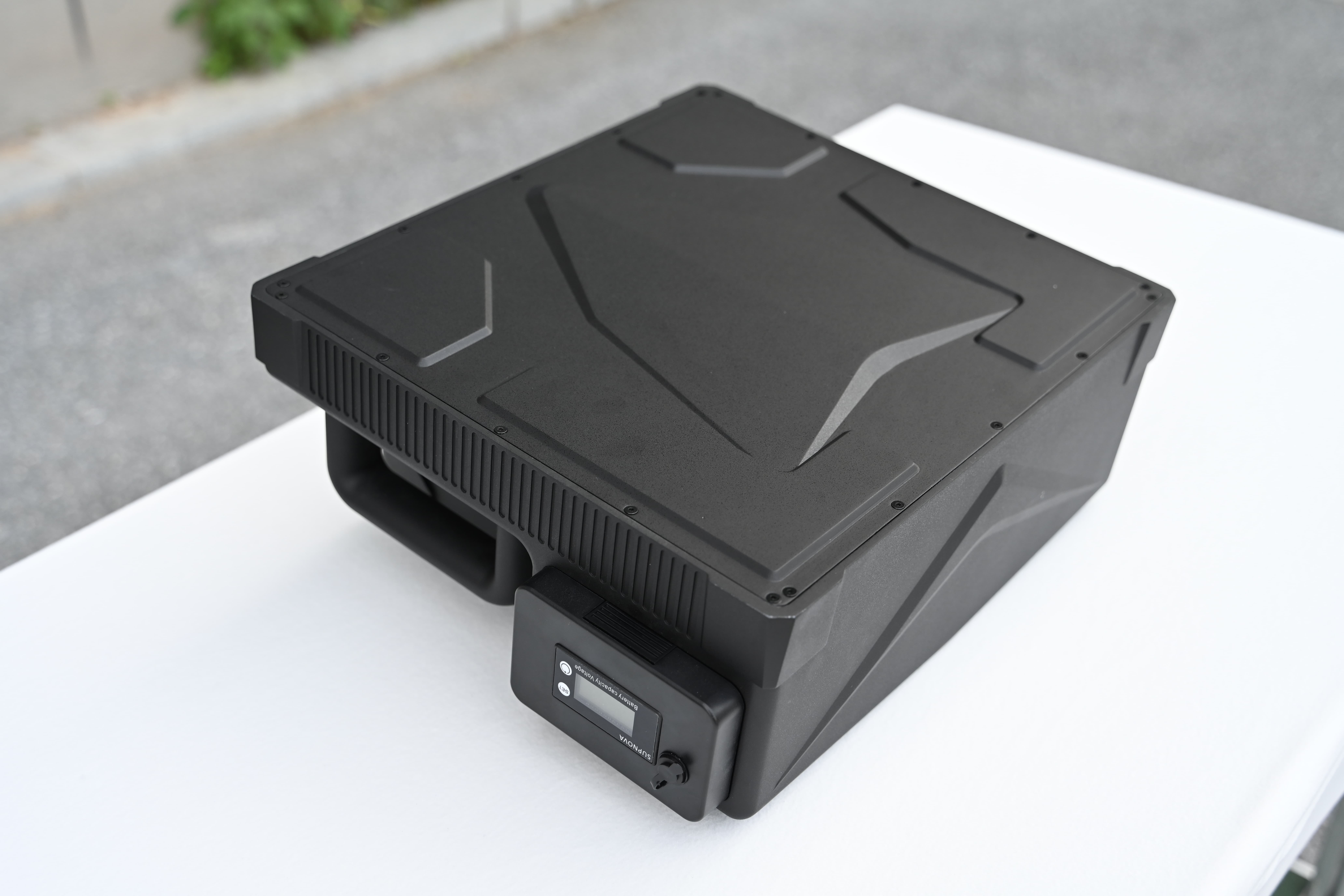

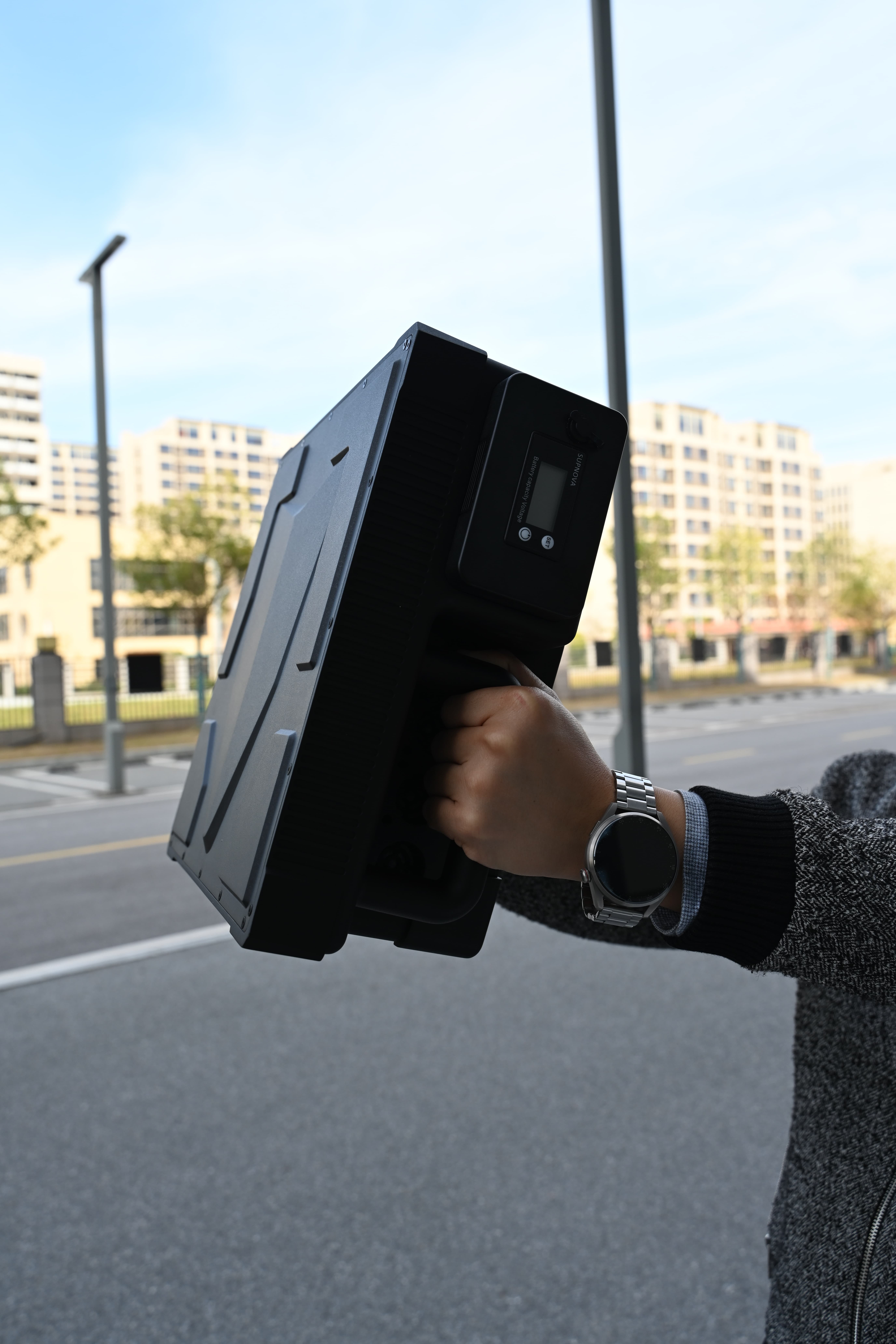

Anti Drone System Portable Drone Detection and Jamming Shield

Anti Drone System Portable Drone Detection and Jamming Shield


1,Product Introduction


The equipment consists of a drone detection system and a radio jamming system. It has excellent detection and defense performance and long-distance working capabilities. By suppressing the signals of drone remote control data transmission, image transmission, and navigation, it forces the drone to hover, land or return, effectively protecting the safety of low-altitude airspace and preventing drones from entering the defense zone.





2, Functional highlight


1) 400MHz-6GHz Full-frequency-band Detection

2) 2km Precise and Efficient Jamming

3) Rapid and Mobile Deployment

4) Super Practical

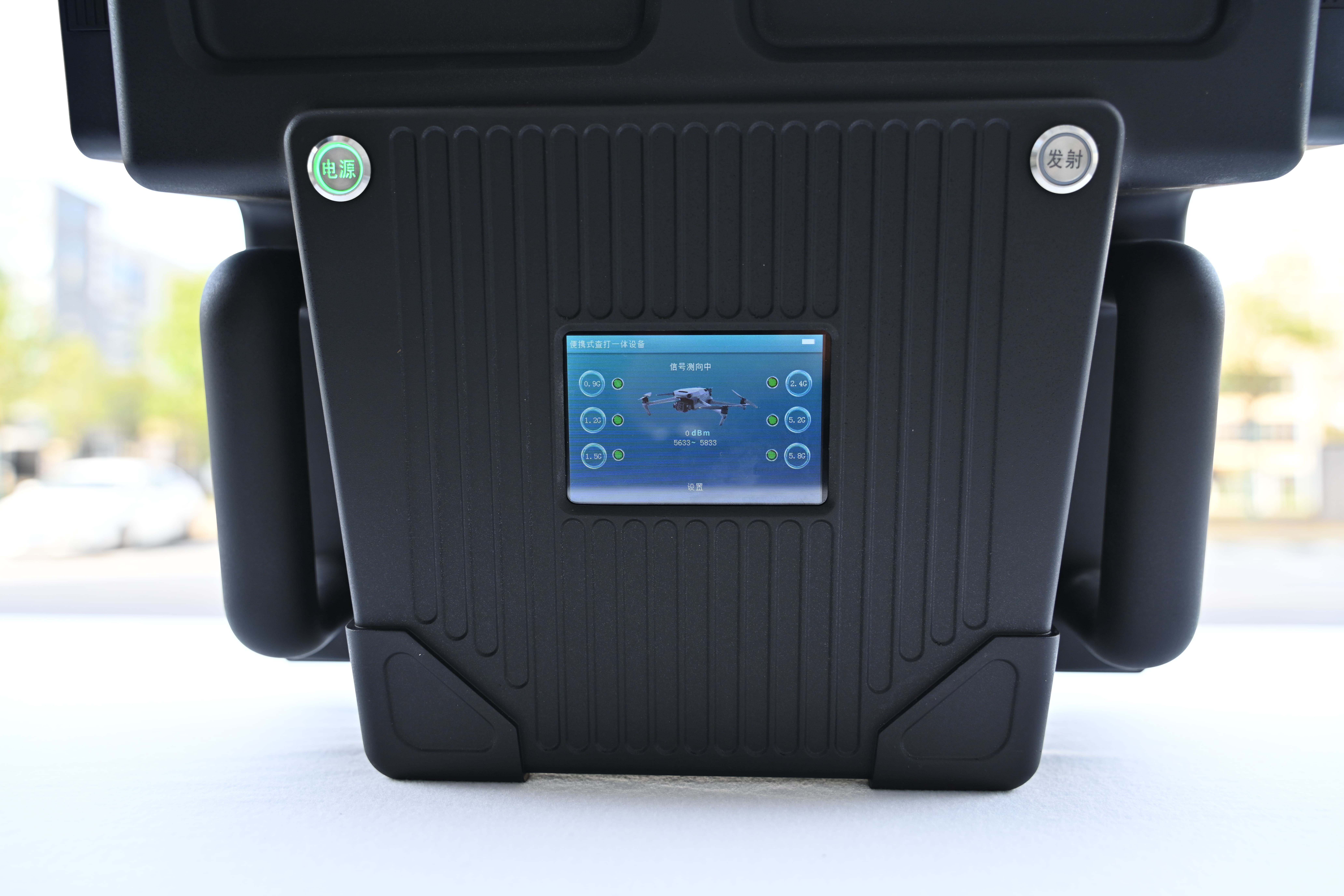

5) Smart Touch Screen




3, Specification

FeatureDetails
Detection Frequency Bands400MHz-1500MHz, 2200-2500MHz, 5150-5950MHz
Detection Distance≥2km (depends on working conditions and drone models)
Direction Finding Accuracy≤10°
Detection AngleHorizontal: 0°~360°
Jamming Distance≥2km (depends on working conditions and drone models)
Jamming Frequency Bands900MHz, 1.2GHz, 1.5GHz, 2.4GHz, 5.2GHz, 5.8GHz
Operation Screen≥3.5-inch touch screen to display drone frequency band, signal strength and other information
Jamming Coverage AngleHorizontal ≥45°, Vertical ≥30°
Frequency Band SwitchingCan select separate communication interference, separate navigation interference or full frequency interference
Network ControlCan be interconnected with mobile terminal (APP) and back-end command and management platform at multiple levels (optional)
Battery Life≥20h, equipped with detection and alarm function in standby mode
Working Temperature-40°C~+60°C
Weight≤8kg (including the battery)
Size390mm160mm330mm (lengthwidthheight)

5, After-Sales service

Lifetime free model library upgrades, profesdional 24/7online service, customizable colors and languages.


6, Certification Certificate


7, Company profile

Chongqing Miao Yitang Technology Co., Ltd. is a specialized company engaged in anti-drone and unmanned intelligent defense management.

With the technical support from the AI Internet of Things Research Institute of the Chinese Academy of Sciences and collaborations with multiple intelligent AI companies, the company has established research laboratories for AI unmanned field products, accumulating a variety of technical patents.

The company's products are widely applied to unmanned automatic management solutions for various defense and perimeter areas, including AI anti-drone systems and AI unmanned vehicle patrol systems. These systems integrate with multiple technologies such as optoelectronics, radar, vibration, thermal imaging, facial recognition, and radio frequency management, truly achieving a 24-hour uninterrupted anti-drone defense and ground perimeter defense warning system. This allows for cost savings for clients, reduction in human resource allocation, and ensures the safety of clients' lives and property. The outstanding security system has won the company an excellent reputation and created higher value for its partners.

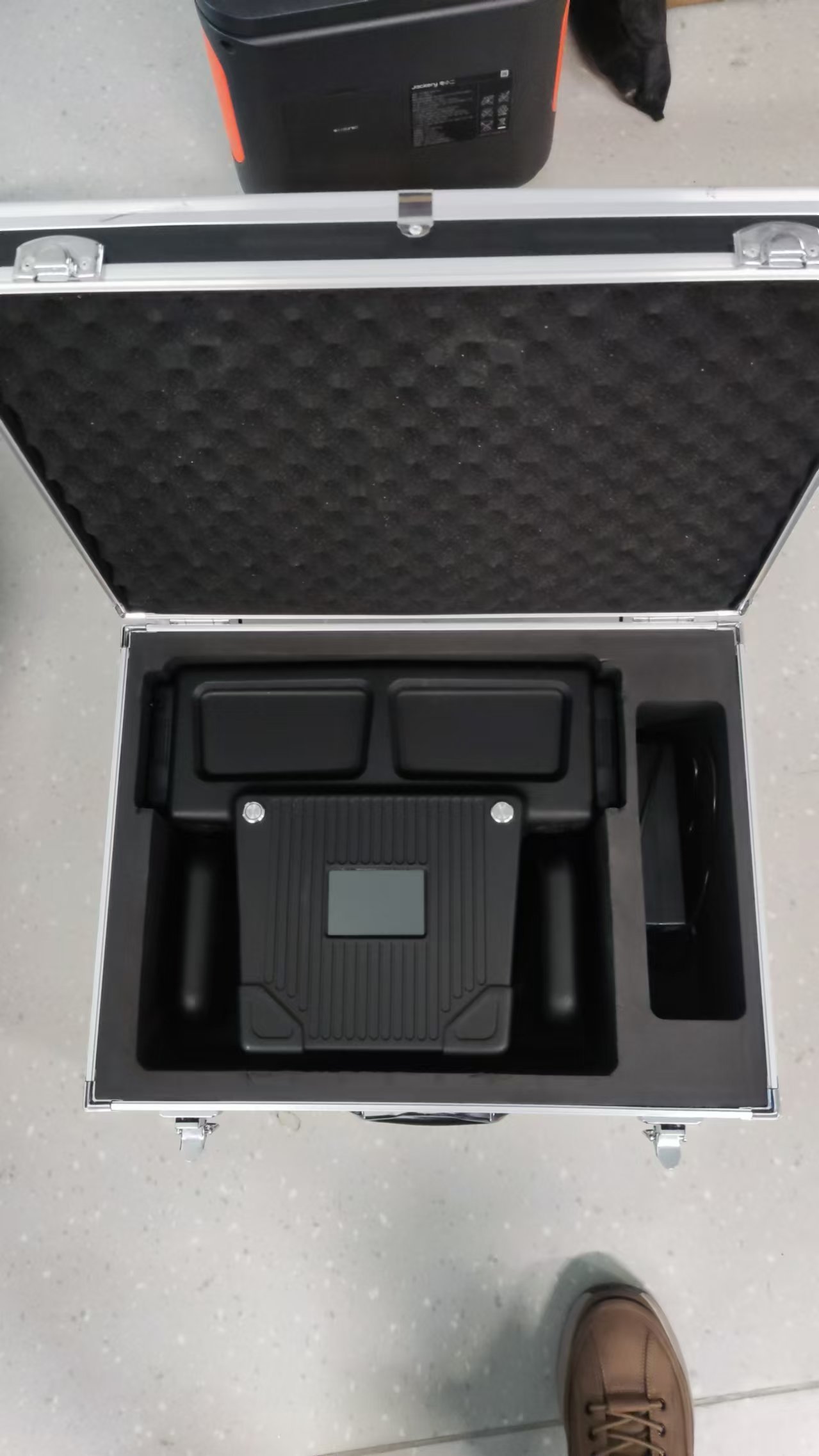

8, Paking and Delivery

Supports various logistics methods including shipping, air freight, water transport, and express delivery, covering logistics in 90% of the global regions.
