| Name: | PTC Thermistors for Motor Starting |
| Nominal resistance: | 40Ω±30% |
| Switch Temperature: | 120±10℃ |
| Max. operating voltage: | 450VAC |
| Max. current: | 10A |
| Operating time: | 0.4 ~ 1.9(S) |
| Operating temperature range: | - 10℃ ~ +85℃ |
| Company Info. |
| Dongguan Ampfort Electronics Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

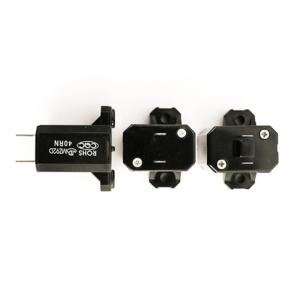

632691R PTCR Case Type PTC Thermistors Switch MZ92D-40RN For Motor Starting Of Refrigerator Compressors Airconditioning systems
In the starting circuit of a single-phase AC motor, a PTC thermistor in series with an auxiliary starting coil is automatically disconnected after the motor is accelerated, thereby protecting the coil from damage. Various forms of the encapsulation housing may be provided.
* Single Phase motor start assist in
- Refrigerator compressors systems
- Airconditioning systems
- Heat-pumps
* Inrush current generation
* Household appliances (refrigerator, air conditioner, etc.), motor, train, heating room, dryer, other
1. High voltage resistance
2. Good impact resistance
3, long service life
4. Small residual current
5, low power
6. Good flame retardant performance
7. Metallization
8. Suitable for clamp contacting
9. High withstand voltage and inrush current
10. Various pellet sizes and curie temperature for optimum inrush current and switching time
| P/N | CNAMPFORT MZ92D-40RN |
| Nominal resistance | 40Ω±30% |
| Switch Temperature | 120±10℃ |
| Max. operating voltage | 450VAC |
| Max. current | 10A |
| Operating time | 0.4~1.9 SEC |
| Power consumption | <3.5W |
| Recovery time | <100 SEC |
| Insulation Resistance | >100MΩ |
| Operating temperature range | -10~+85C |
Disc Type(MZ9 Series)
| Order Number | Resistance At25℃ | Maximum Voltage | Maximum Current | Breakdown Voltage | Curie Temp. | Size (Φxt) |
| R25(Ω) | Vmax(V) | Imax(A) | VBD(V) | Tc(°C) | (mm) | |
| MZ9-3R3 X3S1625 | 3.3 | 160 | 12 | 320 | 135 | 16x2.5 |
| MZ9-3R9 X3S1625 | 3.9 | 180 | 12 | 360 | ||
| MZ9-4R7 X3S1625 | 4.7 | 180 | 12 | 420 | ||
| MZ9-5R0X0S1625 | 5 | 200 | 12 | 480 | 105 | |
| MZ9-5R5X2S1625 | 5.5 | 200 | 12 | 450 | 120 | |
| MZ9-6R8X0S1625 | 6.8 | 200 | 10 | 480 | 105 | |
| MZ9-6R8X3S1625 | 6.8 | 200 | 10 | 450 | 135 | |
| MZ9-10RX0S1625 | 10 | 200 | 10 | 500 | 105 | |
| MZ9-10RX3S1625 | 10 | 200 | 8 | 500 | 135 | |
| MZ9-15RX3S1625 | 15 | 350 | 8 | 700 | 135 | |
| MZ9-22RX3S1625 | 22 | 350 | 8 | 700 | ||
| MZ9-33RX3S1625 | 33 | 355 | 6 | 720 | ||
| MZ9-47RX3S1625 | 47 | 400 | 5 | 720 | ||
| MZ9-68RX3S1625 | 68 | 450 | 4 | 800 | ||
| MZ9-5R0X2S1725 | 5 | 200 | 12 | 450 | 120 | 17.5x2.5 |
| MZ9-6R8X2S1725 | 6.8 | 200 | 10 | 500 | ||
| MZ9-10RX2S1725 | 10 | 200 | 10 | 550 | ||
| MZ9-20RX2S1725 | 20 | 320 | 8 | 650 | ||
| MZ9-3R3X2S2025 | 3.3 | 160 | 12 | 350 | 135 or 120 | 20x2.5 |
| MZ9-3R9X2S2025 | 3.9 | 180 | 12 | 400 | ||
| MZ9-4R7X3S2025 | 4.7 | 180 | 12 | 420 | ||
| MZ9-5R6X3S2025 | 5.6 | 180 | 12 | 450 | ||
| MZ9-6R8 X3S2025 | 6.8 | 200 | 10 | 500 | ||
| MZ9-10RX3S2025 | 10 | 230 | 9 | 550 | ||
| MZ9-12RX3S2025 | 12 | 250 | 8.5 | 600 | ||
| MZ9-15RX3S2025 | 15 | 350 | 8 | 700 | ||
| MZ9-22R X3S2025 | 22 | 350 | 8 | 720 | ||
| MZ9-33RX3S2025 | 33 | 355 | 6 | 750 | ||
| MZ9-47RX3S2025 | 47 | 400 | 5 | 800 | ||
| MZ9-68RX3S2025 | 68 | 450 | 5 | 860 | ||
| MZ9-3R9X2S2032 | 3.9 | 180 | 16 | 350 | 120 | 20x3.2 |
| MZ9-12R X2S2032 | 12 | 350 | 8 | 700 | ||
| MZ9-15R X2S2032 | 15 | 350 | 8 | 750 | ||
| MZ9-30R X2S2032 | 30 | 450 | 7 | 800 | ||
| MZ9-33R X2S2032 | 33 | 385 | 8 | 750 | ||
| MZ9-40R X2S2032 | 40 | 450 | 8 | 800 | ||
| MZ9-25R X2S2050 | 25 | 400 | 9 | 800 | 120 | 20x5.0 |
| MZ9-38R X2S2050 | 38 | 400 | 9 | 800 | ||
| MZ9-50R X2S2050 | 50 | 410 | 8 | 800 | ||
| MZ9-75R X2S2050 | 75 | 410 | 6 | 800 |
Case Type(MZ92D Series)
| Order Number | Resistance at 25°C | Max. Voltage | Max. Current | Residual Current at Vmax |
| R25(Ω) | Vmax(V) | Imax(A) | Iss(mA) | |
| MZ92D-3R9 | 3.9 | 160 | 12 | <32 |
| MZ92D-4R7 | 4.7 | 180 | 12 | <32 |
| MZ92D-5R0 | 5.0 | 180 | 12 | <25 |
| MZ92D-6R8 | 6.8 | 200 | 15 | <25 |
| MZ92D-10R | 10 | 200 | 15 | <25 |
| MZ92D-15R | 15 | 350 | 12 | <20 |
| MZ92D-22R | 22 | 350 | 15 | <20 |
| MZ92D-25R | 25 | 400 | 12 | <12 |
| MZ92D-30R | 30 | 450 | 12 | <10 |
| MZ92D-33R | 33 | 450 | 12 | <10 |
| MZ92D-38R | 38 | 450 | 12 | <10 |
| MZ92D-40R | 40 | 450 | 10 | <10 |
| MZ92D-47R | 47 | 450 | 12 | <10 |
| MZ92D-50R | 50 | 500 | 10 | <9 |
| MZ92D-68R | 68 | 500 | 9 | <9 |
| MZ92D-101R | 100 | 500 | 9 | <9 |
Notes:
1. is the resistance tolerance M:±20% X:±25% N:±30% S: Special
2.Other type are available on request.
|
