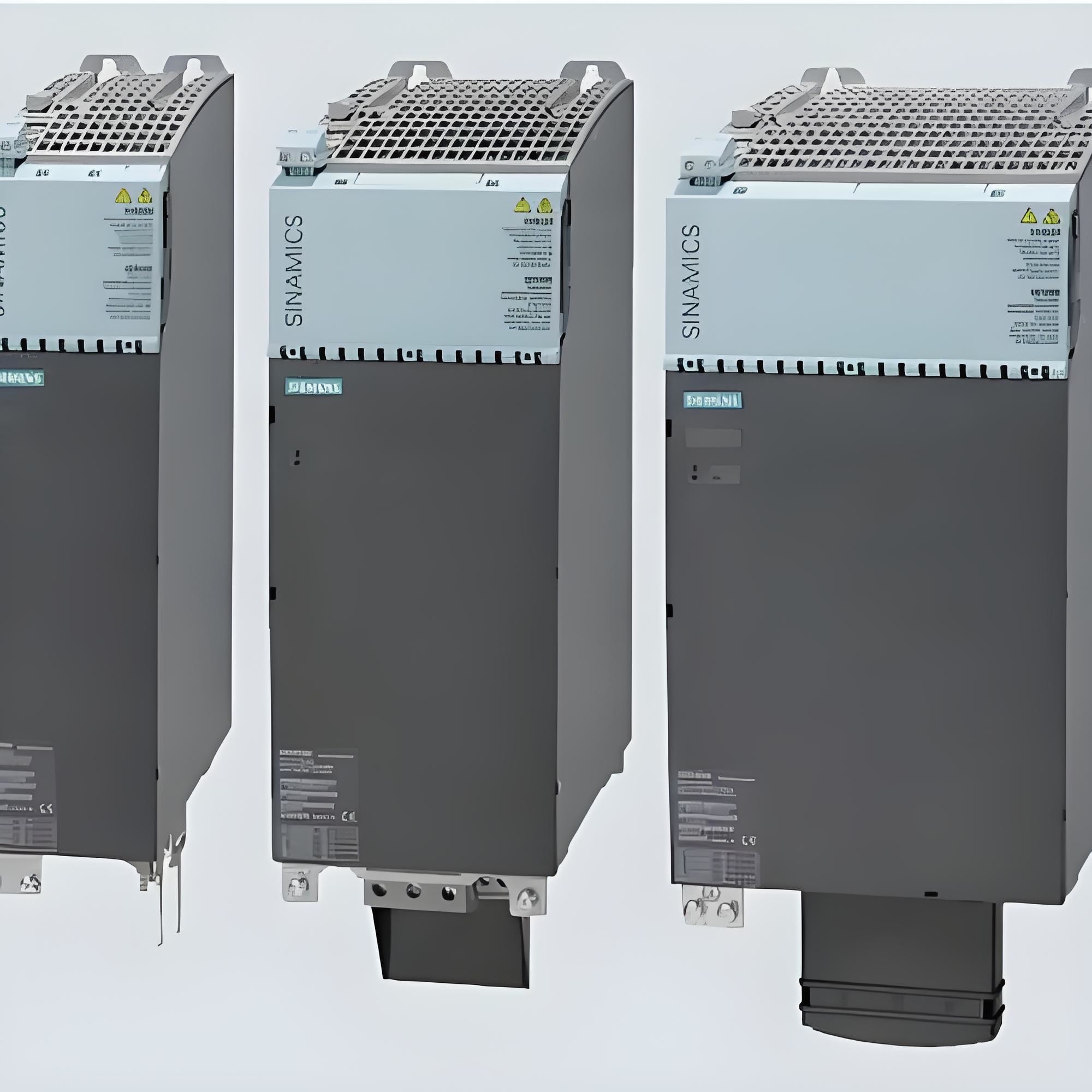

6SL3130-1TE31-0AA0 Siemens Frequency Converter SINAMICS S120 Basic Line Module

6SL3130-1TE31-0AA0 Siemens Frequency Converter SINAMICS S120 Basic Line Module

Alibaba Web : http​s://shkautomation.en.alibaba.com

Description:

SINAMICS S120 BASIC LINE MODULE INPUT: 3PH 380-480V, 50/60HZ OUTPUT: DC 600V, 167 A,

100KW FRAME SIZE: BOOKSIZE INTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE.

Frequently bought together:6SL3130-7TE25-5AA3

Description:

SINAMICS S120 ACTIVE LINE MODULE INPUT: 3AC 380-480V, 50/60HZ OUTPUT: DC 600V, 92A, 55KW

FRAME SIZE: BOOKSIZE INTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE.

Siemens frequency converter is a power device capable of changing the operating frequency and voltage of a motor, also known as a "governor" or "variable frequency governor". It can control the voltage and frequency of the AC power supply equipment and provide the output signal to the motor, so that the motor can run at a preset speed.
The working principle of Siemens inverter can be divided into the following aspects:
1. AC/DC conversion: Siemens drives first convert the input alternating current (AC) into direct current (DC), which is usually achieved by a rectifier.
2. Capacitor smoothing: The direct current is then smoothed and stabilized through one or more capacitors to ensure that it remains stable during the frequency conversion process.
3. PWM modulation: Siemens drives use pulse width modulation (PWM) technology to control the frequency and power of the output power supply. This is achieved by adjusting the duty cycle of the input DC voltage, usually using an IGBT (insulated gate bipolar transistor) switching device to control the voltage. The inverter converts the input direct current into a high-frequency pulse signal and outputs it to the cable that drives the motor.
4. Control system: Finally, the inverter uses a control system to monitor the operating state of the motor and adjust the output frequency and power accordingly. This enables precise speed and torque control, as well as ensuring that the motor is always operating at optimum efficiency.
In general, Siemens drives work by controlling the voltage and frequency of the input and output to achieve precise control of the motor, thus ensuring that the motor always operates at optimal efficiency.

The features of Siemens inverter are:
1. Good control performance: Siemens inverter control performance is very excellent, can achieve accurate speed, torque control, improve operating efficiency.
2. High efficiency and energy saving: Siemens inverter adopts advanced PWM technology, which can realize efficient power conversion, reduce system loss, improve energy utilization efficiency, and thus achieve energy saving.
3. High stability: Siemens inverter adopts advanced circuit design and control algorithm, which can achieve stable operation, reduce the incidence of failure and improve the reliability of equipment.
4. Strong versatility: Siemens inverter has a wide range of applications, suitable for various industrial control fields, and can be flexibly selected according to different needs.
5. Easy maintenance: Siemens inverter has simple structure and easy maintenance, which can support real-time monitoring and remote diagnosis, improve maintenance efficiency and reduce maintenance costs.
