AV HDMI Splitter Distribution with LPCM Audio Support and User Manual

Product Description:

Features:

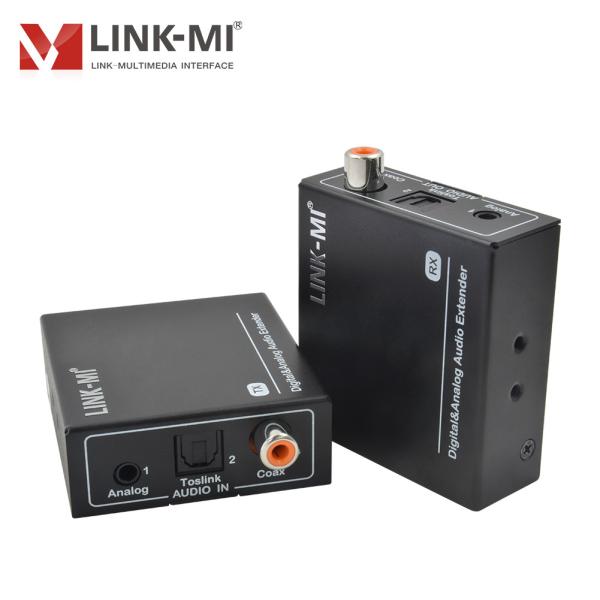

• Transmission Range: Analog audio up to 1480ft (450 meters), Digital audio up to 1640ft (500 meters)
• Accepts Analog, Digital Coax or Optical Toslink
• Auto identify audio input: Analog>Digital Coax>Optical Toslink
• Supports PCM2.0, Digital 5.1 (DTS, Dolby Digital, etc.)
• Input 44.1-96khz, output 48khz, 16-24bit
• Support AC 100~240V 50/60hz power, DC 12V/1A, dual POC

This device is designed to provide reliable audio transmission over long distances, with support for both analog and digital audio sources. It can handle various audio formats, including PCM2.0 and digital 5.1, and it automatically detects the type of input it receives (analog, digital coaxial, or optical Toslink) without any manual switching required.

Thanks to its advanced specs, this device can deliver a high-quality audio experience even in challenging environments. It can withstand input frequencies ranging from 44.1 to 96 kHz, and it always outputs at 48 kHz and 16 to 24 bits, ensuring optimal performance and compatibility with a wide range of audio gear.

The device is also flexible when it comes to power options. It can be connected to both AC outlets (from 100 to 240 volts at 50 or 60 Hz) and DC sources (12 volts and 1 amp), and it features dual POC support, which means you can use both the input and output sides of the device to power other gear if needed.

Technical Parameters:

Applications:

The LM-AEX02 is a reliable audio extractor that supports LPCM, DTS, Dolby(CH7.1) audio formats. Its HDMI compliance is HDMI 2.0b, which means it can support 4K@60Hz and HDR signals. The device also supports a sampling frequency of up to 192KHz.

The LINK-MI LM-AEX02 HDMI Audio Extractor is easy to use and install. It comes with a user manual, a power adapter, and the device itself. The device is compact and lightweight, making it a portable audio analyzer that you can carry around with you.

The LM-AEX02 is perfect for scenarios where audio needs to be extracted from an HDMI signal, such as in home theater systems, multimedia presentations, and conference rooms. The device is also ideal for analog audio extenders, allowing you to extend the audio signal to a distance of up to 50 meters.

Overall, the LINK-MI LM-AEX02 HDMI Audio Extractor is a reliable and versatile device that can be used in various audio applications. Its audio support, HDMI compliance, and package contents make it a great choice for anyone who needs an audio extender or analyzer.
