15m Truck Painting Room 2024 CE Approved Bus Spray Booth with Air Speed m/s of 0.2-0.3

15m Truck Painting Room 2024 CE Approved Bus Spray Booth with Air Speed m/s of 0.2-0.3

15m Truck Painting Room 2024 CE Approved Bus Spray Booth with Air Speed m/s of 0.2-0.3
15m Truck Painting Room 2024 CE Approved Bus Spray Booth with Air Speed m/s of 0.2-0.3
Categories Car Spray Booth
Type: Spray Booths
Power: 24KW, 380V/3phrase/50 or60HZ
External Size: 15.2m L*6.7m W*5.5m H, 15.2m L*6.7m W*5.5m H
Internal Size: 15.0m L*5.0m W*5.0m H
Voltage: 380V/220V/3phrase/50 or60HZ
Disc Dia.: nm
No Load Speed: nm
Place of Origin: Guangdong, China
Brand Name: wintai
Model Number: WT15000
Warranty: 1 YEAR
Room size: 15.0m L*5.0m W*5.0m H
Air Flow(m³/h): 60000m³
Air Speed(m/s): 0.2-0.3
Total Power(KW): 24
Price: $25,800.00/sets >=1 sets
Contact Now
Company Info.
Guangzhou Wintai Car Tools Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

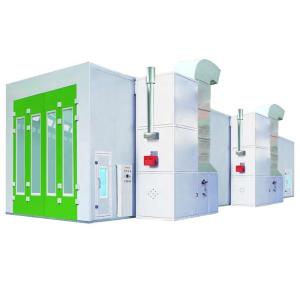

15m Truck Painting Room 2024 CE Approved Bus Spray Booth with Air Speed m/s of 0.2-0.3

Product Description
2023 new CE approved bus spray booth 15m truck painting room

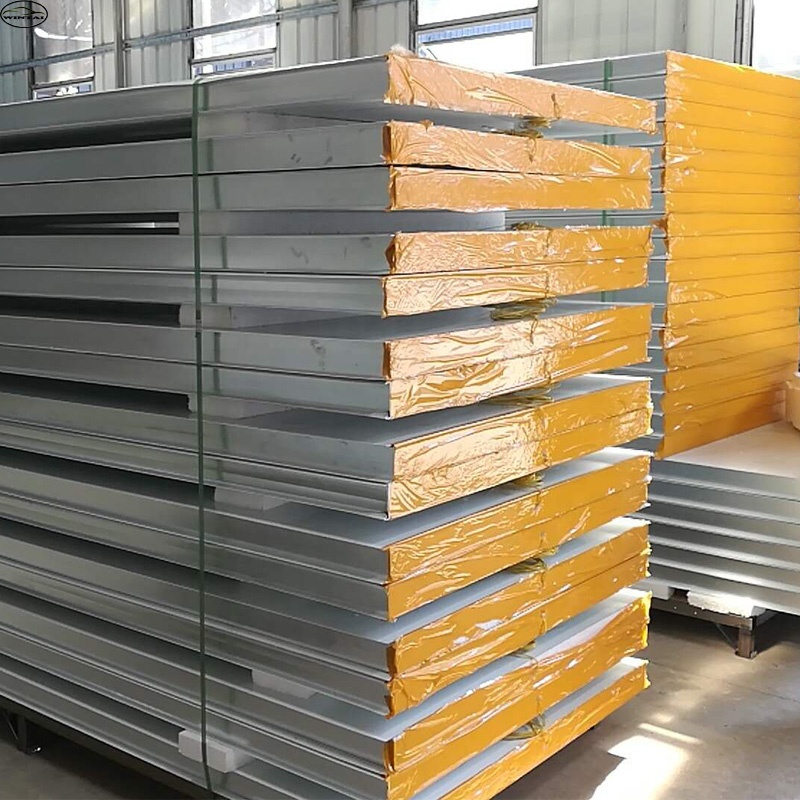

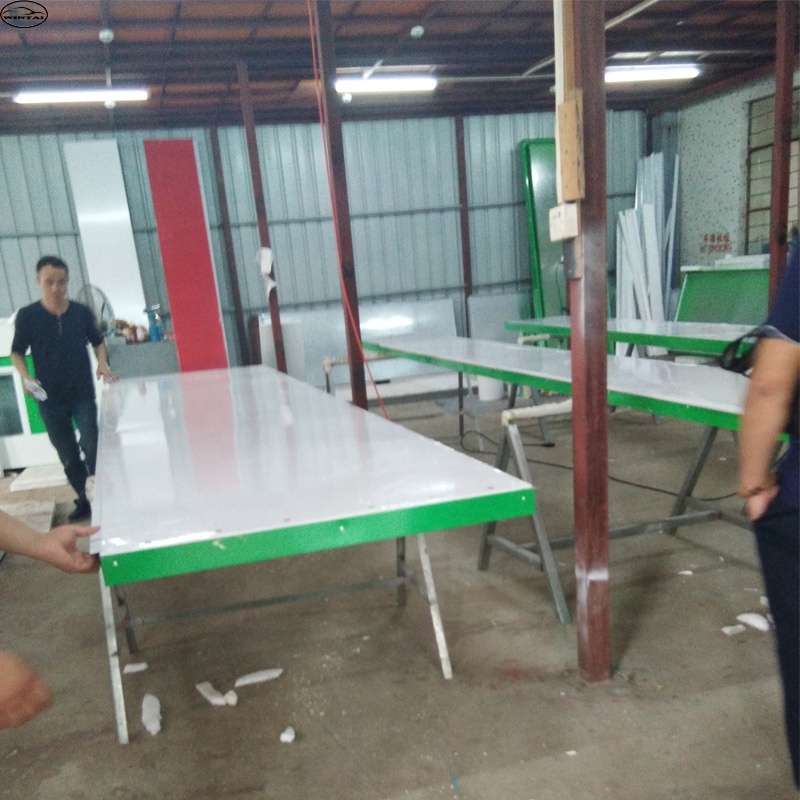

Wallboard: Fire-retardant composite molding Sandwich style EPS (epispastics polystyrene) (Rock wool and PU are optional ) 75mm thickness; EPS foam Density is 14kg/m³. The Colorful steel skin boards have been HDG(hot dip galvanizing). High quality galvanized steel roof panel.

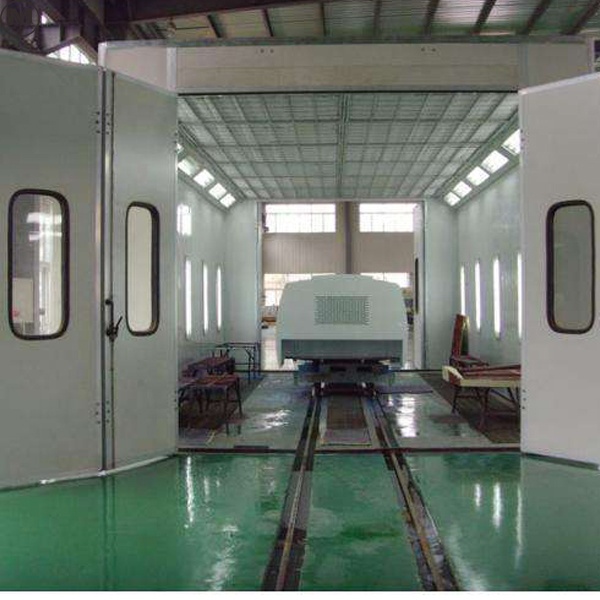

Door: 4 pcs of front doors with aluminum bordure. Size: 4000*5000(mm)(W*H). 2 pc of emergency doors 650*1800mm(W*H)/pc.

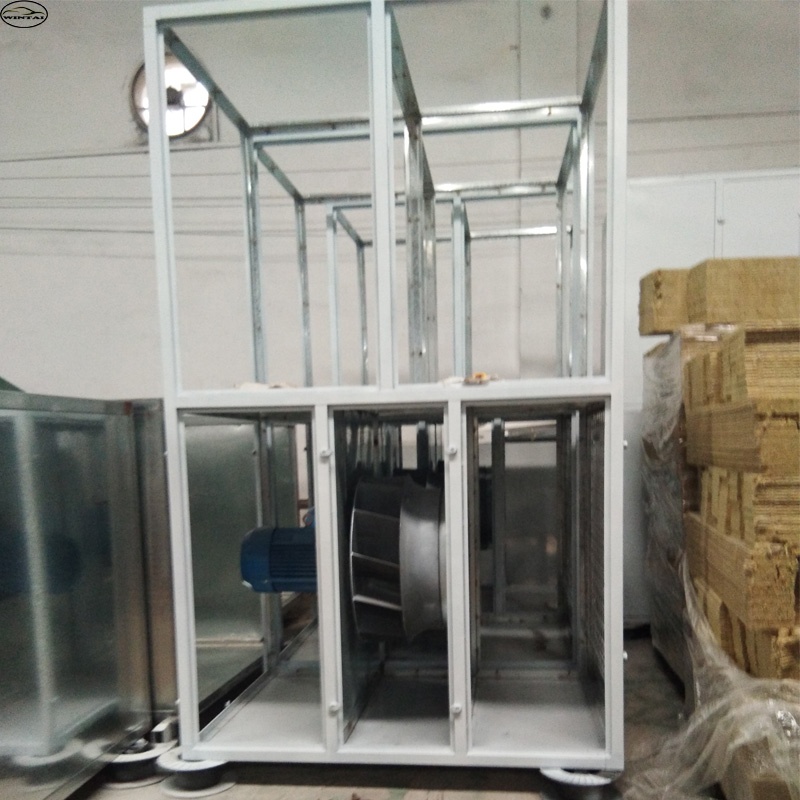

Intake Fan(2groups): 1 sets of 11kw intake fan/per group, total 2 units of 11kw intake fans. BELIMO 20N electric damper. Siemens technology production, large air volume and low noise. Air flow:64,000m3/h.
Exhaust Fan(2rgoups):1 set of 11kw exhaust fan/per group, total 2sets of 11kw exhaust fans, Air flow:64,000m3/h.
Filtering: Multilayer filtering structure. The primary filter can capture granules larger than10μm. Ceiling filter capture granules bigger than 5μm. The green filter on the basement plenum and exhaust fan can filter the paint and dust emission. The air cleanliness in the working environment can reach 98%.
Burner: Original Italy RIELLO RG5S diesel burner, 260,000Kcal/h per unit, total 2 units of burners and 520,000Kcal/h. Max temperature at 80°C.
Heat Exchanger(2sets): it’s made of 1.5mm thickness stainless steel which features more heat dissipating surface, better heat exchange and better burner efficiency. The heat exchange rate reaches 85%.
LED Lighting System: Ceiling lights have 18units×4pieces of 16w LED lamps. Side light has 22units×2pieces of 16kw LED lamps. Total 116pieces of 16w LED lamps. 900 Lux.

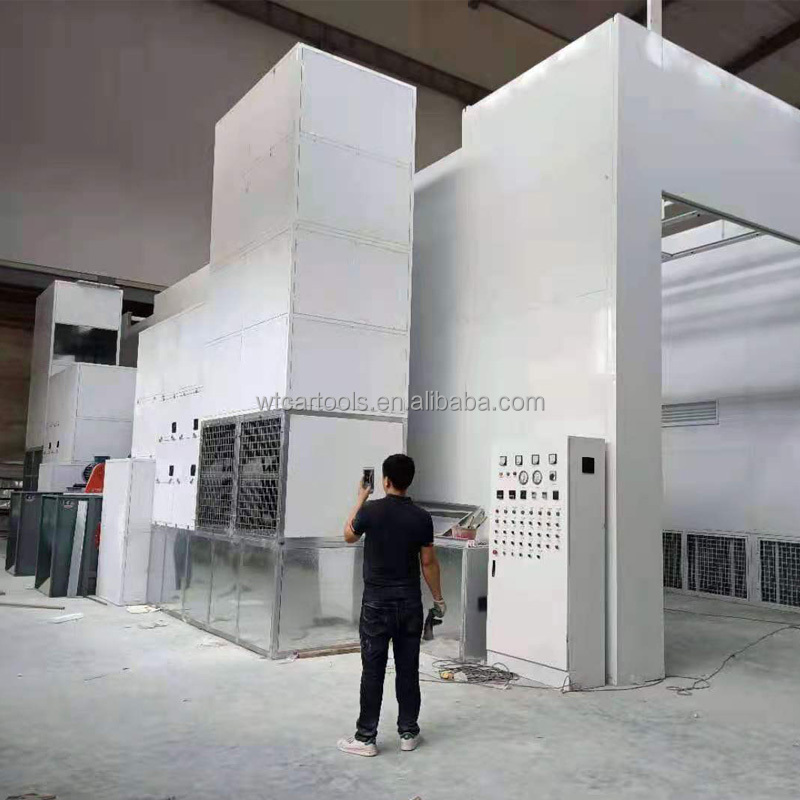

Control System: Microcomputer control system. Cabinet type, easy to control and maintain.
Remark:
Any sizes can be customized;
3D lift is optional.
Air exhaust from two sides of spray room or pit are optional;
Drive through type door, rolling door and folding door are optional.
Air generation system on the top of spray room is optional.
Specification
item
value
Type
Spray Booths
Power
24KW
External Size
15.2m Lⅹ6.7m Wⅹ5.5m H
Internal Size
15.0m Lⅹ5.0m Wⅹ5.0m H
Voltage
380V/220V/3phrase/50 or60HZ
No Load Speed
nm
Place of Origin
China
Guangdong
Brand Name
wintai
Model Number
WT15000
Warranty
1 YEAR
External Size
15.2m L*6.7m W*5.5m H
Room size
15.0m L*5.0m W*5.0m H
Air Flow(m³/h)
60000m³
Air Speed(m/s)
0.2-0.3
Total Power(KW)
24
Power
380V/3phrase/50 or60HZ
Packing & Delivery

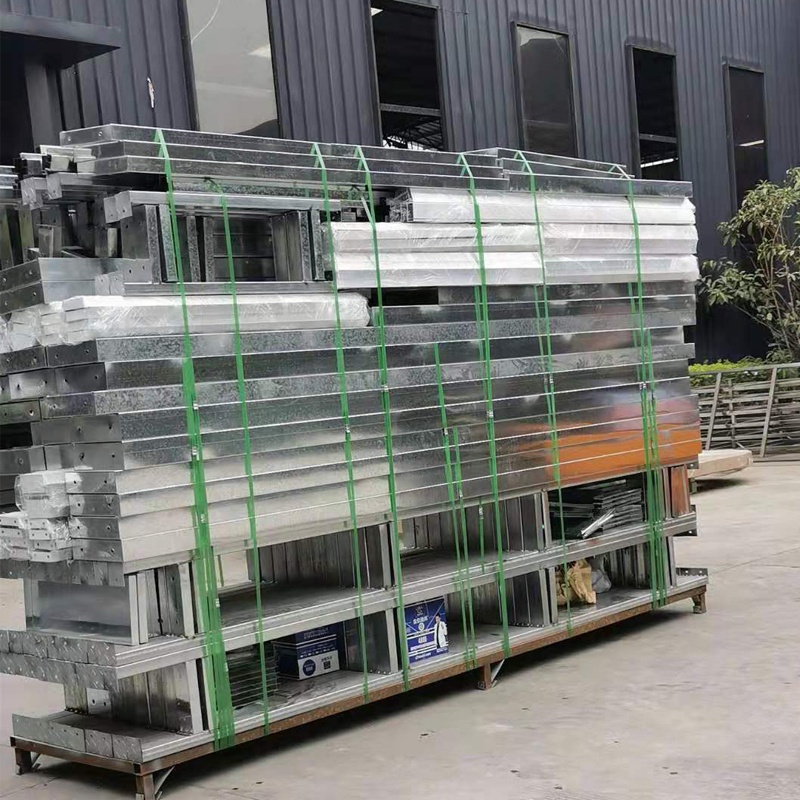

standard export package
