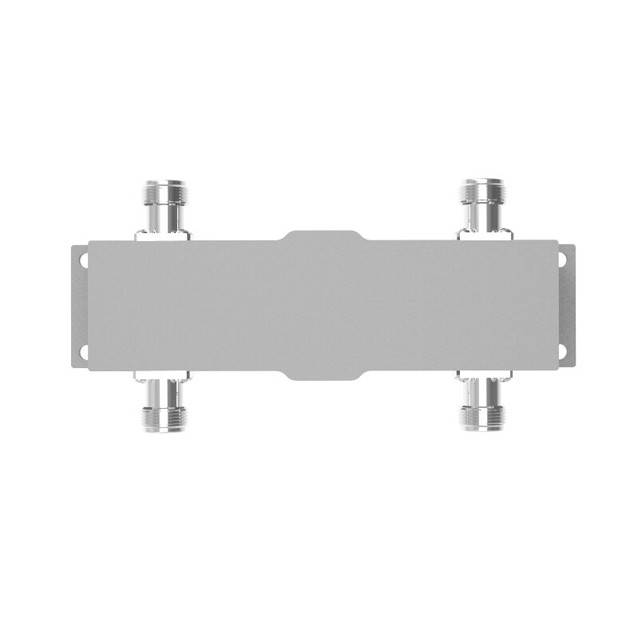

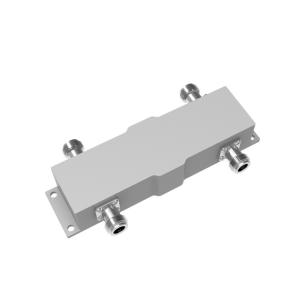

450-900MHz 2in 2out N Female Hybrid Coupler With Customized Connector

450-900MHz 2in 2out N Female Hybrid Coupler

• Good VSWR at all ports
• High isolation
• Good PIM up to -163@43dBm*2

Part Number	VN-HC2x2-04509-ON-xxx
Operating Frequency ( MHz )	450-900
Impedance ( Ohm )	50
VSWR	≤1.25
Coupling (dB)	3.0±0.5
Insertion Loss (dB)	3.5
Isolation (dB)	≥22
IM3 (dBc @ 2×43dBm)@xxx	-150 / -155 / -160 /-163
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Female
Handling Power (Watt, max)	300
Peak Power (Watt, max)	1200

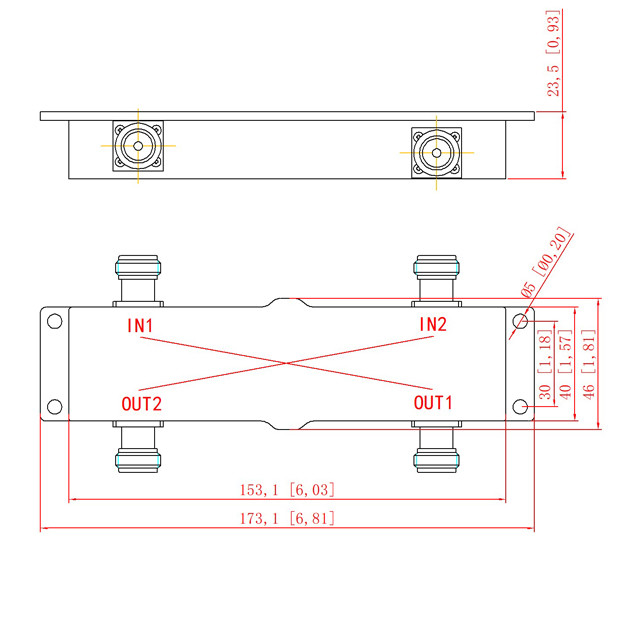

Dimension (mm)(L×W×H, excl connector)	173.1×46×31.5
ROHS Compliance	Yes
