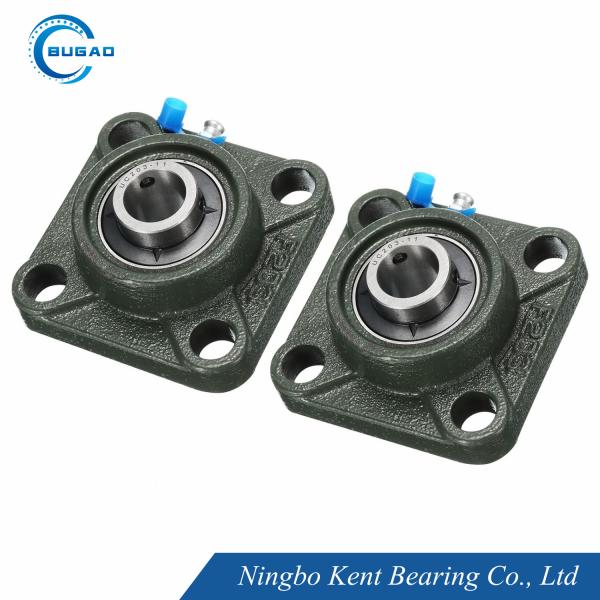

UCF202 UCF203 Flange Mount Bearing Self Aligning Flange Ball Bearing

Space-Saving Design:
- The compact flange design allows for installation in tight spaces, making these bearings perfect for equipment with limited mounting areas.
Self-Aligning Feature:
- The self-aligning capability compensates for shaft misalignment, reducing stress on the bearing and extending its lifespan. This is particularly useful in applications where alignment precision is difficult to maintain.
Sturdy Construction:
- The cast iron housing provides excellent strength and durability, while the GCr15 bearing steel insert ensures resistance to wear, corrosion, and heavy loads.
Easy Installation:
- The flange design allows for quick and secure mounting on flat surfaces, reducing installation time and effort.
Low Maintenance:
- Pre-lubricated and sealed to keep contaminants out, these bearings require minimal maintenance, saving time and operational costs.
Versatility:
- Suitable for a wide range of applications, from light-duty machinery to heavy industrial equipment.

Model	Bore Diameter (d)	Outer Diameter (D)	Bearing Width (B)	Flange Dimensions (L x W x H)	Mounting Hole Spacing (A)	Mounting Hole Diameter (B)	Weight
UCF202	15 mm	35 mm	11 mm	90 x 60 x 35 mm	70 mm	9 mm	~0.8 kg
UCF203	17 mm	40 mm	12 mm	100 x 65 x 40 mm	80 mm	9 mm	~1.0 kg

UCF Series Pillow Block Ball Bearings Parameters

Wide Applications of Pillow Block Bearings


Customization Welcomed:

We can printing your brand (logo,artwork)on the shield or laser engraving your brand on the shield.
We can custom your packaging according to your design.
All copyright owned by clients and we promised don't disclose any information.

Packing and Shipping:

The deep groove ball bearings will be securely packaged individually, or tube packing or packed as customization packing
Shipping method is negotiable.

ABEC-1 Tolerance Class ABEC-1 (P0)

Outer Ring									Tolerance in um/s
D mm		Δdmp		VDp²)⁴)Open Bearings Diameter Series			Capped Bearings²)³)	Vdmp	Kia	ΔBs		Vbs
D mm		Δdmp		9	0,1	2,3,4	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max				max	max	high	low	max
1)2.5	6	0	-8	10	8	6	10	6	15	Identical to ΔBs and VBs of inner ring of same bearing
6	18	0	-8	10	8	6	10	6	15
18	30	0	-9	12	9	7	12	7	15
30	50	0	-11	14	11	8	16	8	20
50	80	0	-13	16	13	10	20	10	25
80	120	0	-15	19	19	11	26	11	35
120	150	0	-18	23	23	14	30	14	40

ABEC-3 Tolerance Class ABEC-3 (P6)

Outer Ring									Tolerance in um/s
D mm		Δdmp		VDp²)⁴)Open Bearings Diameter Series			Capped Bearings²)³)	Vdmp	Kia	ΔBs		Vbs
D mm		Δdmp		9	0,1	2,3,4	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max				max	max	high	low	max
1)2.5	6	0	-7	9	7	5	9	5	8	Identical to ΔBs and VBs of inner ring of same bearing
6	18	0	-7	9	7	5	9	5	8
18	30	0	-8	10	8	6	10	6	9
30	50	0	-9	11	9	7	13	7	10
50	80	0	-11	14	11	8	16	8	13
80	120	0	-13	16	16	10	20	10	18
120	150	0	-15	19	19	11	25	11	20

ABEC-5 Tolerance Class ABEC-5 (P5)

ABEC-7 Tolerance Class ABEC-7 (P4)

Outer Ring												Tolerance in um/s
D mm		Δdmp		Δds		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sia	ΔBs		Vbs
D mm		Δdmp		Δds		7,8,9	1,7,2,3,4	Vdmp	Kia	Sd	Sia	ΔBs		Vbs
over	including	high	low	high	low	max		max	max	max	max	High	low	max
1)2.5	6	0	-4	0	-4	4	3	2	3	4	5	Identical to ΔBs and VBs of inner ring of same bearing		2.5
6	18	0	-4	0	-4	4	3	2	3	4	5			2.5
18	30	0	-5	0	-5	5	4	2.5	4	4	5			2.5
30	50	0	-6	0	-6	6	5	3	5	4	5			2.5
50	80	0	-7	0	-7	7	5	3.5	5	4	5			3
80	120	0	-8	0	-8	8	6	4	6	5	6			4
120	150	0	-9	0	-9	9	7	5	7	5	7			5

Tolerance Data for Vibration of Single Bearing

Maximum Vibration Acceleration of Single Bearing

Product Tags:

UCF202 Flange Mount Bearing

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Ningbo Kent Bearing Co., Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	UCF Pillow Block Bearing
Brand Name:	BUGAO
Model Number:	UCF202 UCF203
Certification:	ISO9001:2015
Place of Origin:	China
MOQ:	Negotiatable
Price:	Negotiable
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	3000000 sets
Delivery Time:	2-4 weeks
Packaging Details:	Single Packing, Industrial/Tube Packing
Noise &Vibration:	Z1V1, Z2V2, Z3V3, Z4V4
Structure:	Pillow Block Bearing/Insert Bearing
HS Code:	8482102000
OEM Service:	Customization Welcomed
Product Name:	Flange Mount Bearing
Material:	Bearing Steel (GCr15), Stainless Steel, Ceramic, etc
Precision:	P0, P6, P5, P4
Tolerance Class:	ABEC-1, ABEC-3,ABEC-5,ABEC-7
Clearance:	C2, C0, C3, C4
Specification:	Open, Z, ZZ, RZ, 2RZ, RS, 2RS
