| Categories | PMMA Raw Material |
|---|---|
| Brand Name: | France Arkema |
| Model Number: | PMMA DR101 |
| Certification: | MSDS |
| Place of Origin: | France |
| MOQ: | 25KG |
| Price: | USD4.5-5 |
| Payment Terms: | T/T |
| Supply Ability: | 500TONS |
| Delivery Time: | 7-15days |
| Packaging Details: | Plastic bag/Paper bag |
| Color: | lucency |
| Transmittance: | 93% |
| Haze: | 0.3% |
| Refractive Index: | 1.49 |
| Elongation: | 6% |
| Tensile Strength: | 77MPa |
| Port: | ShenZhen/GuangZhou,China |
| Flexural Modulus: | 3,000-3,500 MPa |
| Appearance: | Transparent solid |
| Elongation At Break: | 4-6% |
| Thermal Conductivity: | 0.19 W/mK |
| Flammability: | UL 94 HB |
| Water Absorption: | 0.3% |
| Company Info. |
| Dongguan Pengchen New Materials Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Products Description
| PMMA France Arkema DR101 high impact high rigidity film injection
molding |
| PMMA Basic Innovative Plastic 20HR, also known as polymethyl methacrylate, is an engineering plastic produced by SABIC in Saudi Arabia. This plastic has several excellent physical properties and is suitable for a variety of applications, such as hard packaging, lighting fixtures, automotive parts and packaging materials. First, from the appearance, the PMMA 20HR is particle-like, usually transparent or translucent, with a high gloss, making it visually attractive. In terms of processing, the PMMA 20HR is suitable for injection molding and extrusion processes, which gives manufacturers the flexibility to choose the right processing method to manufacture products of various shapes and sizes. In terms of physical performance, the PMMA 20HR performs well. It has high toughness and high impact resistance, allowing it to maintain stability when subjected to external shocks, reducing the risk of rupture |

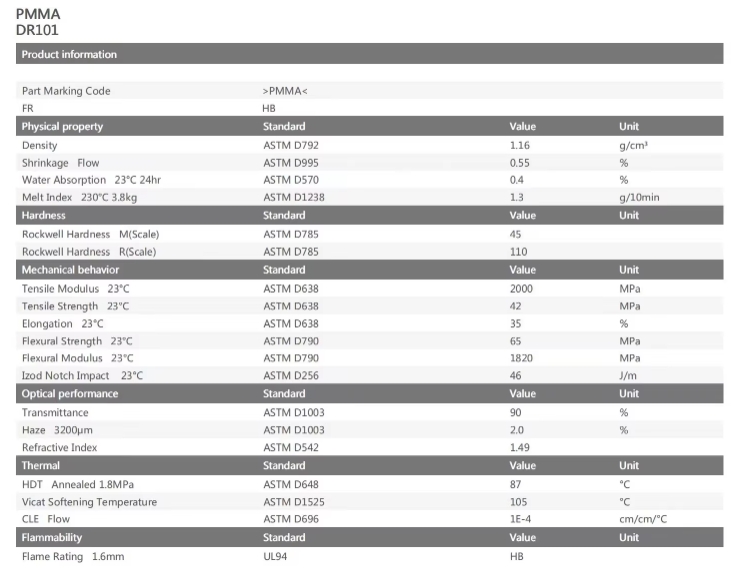

PMMA DR101
| Product information | |||
| Part Marking Code FR | >PMMA< HB | ||
| Physical property | Standard | Value | Unit |
| Density | ASTM D792 | 1.16 | g/cm¹ |
| Shrinkage Flow | ASTM D995 | 0.55 | % |
| Water Absorption 23℃24hr | ASTMD570 | 0.4 | % |
| Melt Index 230℃3.8kg | ASTM D1238 | 1.3 | g/10min |
| Hardness | Standard | Value | Unit |
| RockwellHardness M(Scale) | ASTM D785 | 45 | |
| RockwellHardness R(Scale) | ASTMD785 | 110 | |
| Mechanical behavior | Standard | Value | Unit |
| Tensile Modulus 23℃ | ASTM D638 | 2000 | MPa |
| Tensile Strength 23℃ | ASTM D638 | 42 | MPa |
| Elongation 23℃ | ASTM D638 | 35 | % |
| Flexural Strength 23℃ | ASTM D790 | 65 | MPa |
| Flexural Modulus 23℃ | ASTM D790 | 1820 | MPa |
| zod Notch Impact 23℃ | ASTM D256 | 46 | J/m |
| Optical performance | Standard | Value | Unit |
| Transmittance | ASTM D1003 | 90 | % |
| Haze 3200μm | ASTM D1003 | 2.0 | % |
| Refractive Index | ASTM D542 | 1.49 | |
| Thermal | Standard | Value | Unit |
| HDT Annealed 1.8MPa | ASTM D648 | 87 | ℃ |
| Vicat Softening Temperature | ASTM D1525 | 105 | ℃ |
| CLE Flow | ASTM D696 | 1E-4 | cm/cm/℃ |
Fammability Flame Rating 1.6mm | Standard UL94 | Value HB | Unit |
product feature
 |  |
Application
 Optical lighting It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft. |  Electronic appliancesIt used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on. |  Mechanical equipmentIt used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields |
Company Profile:
Dongguan Pengchen plastic Co., LTD Was Established On November 15, 2022, Located Indongguan City.
 |  |
Warehouse:
 | |
 |  |
| Application | Electronics electrical appliances mobile phones cars |
| Grade | Injection Grade,Extrusion Grade |
| OEM/ODM | Accepted |
|
