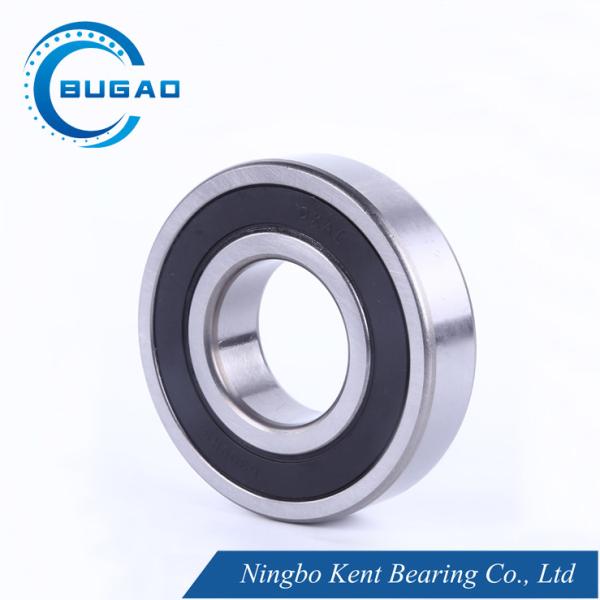

6214-2RS Motor Bearings For Large Electric Motors From Bearing Factory

As a medium-sized general-purpose bearing (70×125×24mm), 6214 deep groove ball bearing is widely used in motors, generators and pumps due to its excellent radial load capacity and moderate axial load characteristics.

6214 Deep Groove Ball Bearing Technical Specifications

Parameter	Value (mm)	Tolerance Standard	Notes
Bore Diameter (d)	70	h6 (Standard Grade)	Shaft fit recommendation: h6/k6
Outer Diameter (D)	125	H7 (Standard Grade)	Housing bore recommendation: H7
Width (B)	24	±0.2	Single-width tolerance
Chamfer Radius (r min)	1.5	-	Min. shaft/housing fillet requirement
Dynamic Load Rating (C)	68.2 kN	ISO 281	Basic rating life (grease lubrication)
Static Load Rating (C₀)	44.5 kN	ISO 76	Maximum static load capacity

Customization:

We can printing your brand (logo,artwork)on the shield or laser engraving your brand on the shield.

We can custom your packaging according to your design.

All copyright owned by clients and we promised don't disclose any information.

Packing and Shipping:

The deep groove ball bearings will be securely packaged individually, or tube packing or packed as customization packing

Shipping method is negotiable.

Selection tips:

For high-speed applications (＞4000rpm), it is recommended to choose a nylon cage + oil lubrication solution

When there is an axial impact load, a thrust bearing must be used in conjunction with it

For humid environments, special models with anti-corrosion coatings should be preferred

This bearing is used in rotating parts of various industrial equipment due to its moderate size and balanced load capacity. In actual use, the appropriate clearance grade and seal configuration should be selected according to the specific working

conditions.

Other Technical Data of Ball Bearings:

6200 Series Bearings Parameters

Basic Bearing No.	Bore d		Outer Diameter D		Width W		Radius r		Basic Load Rating KN		Maximum Run out Speed		Weight kg/pc
	mm	inch	mm	inch	mm	inch	mm	inch	Dynamic	Static	Grease	Oil
									Dynamic	Static	Grease	Oil
									C	C_O	r/min	r/min
627	7	0.2756	22	0.8661	7	0.2756	0.3	0.012	3.35	1.4	26000	34000	0.013
628	8	0.3149	24	0.9448	8	0.3149	0.3	0.012	4	1.59	24000	32000	0.017
629	9	0.3543	26	1.0236	8	0.3149	0.3	0.012	4.55	1.96	22000	30000	0.02
6200	10	0.3937	30	1.1811	9	0.3543	0.6	0.024	5.1	2.39	19000	26000	0.032
6201	12	0.4724	32	1.2598	10	0.3937	0.6	0.024	6.1	2.75	18000	24000	0.037
6202	15	0.5906	35	1.3780	11	0.4331	0.6	0.024	7.75	3.6	17000	22000	0.045
6203	17	0.6693	40	1.5748	12	0.4724	0.6	0.024	9.6	4.6	16000	20000	0.066
6204	20	0.7874	47	1.8504	14	0.5512	1.0	0.039	12.8	6.65	14000	18000	0.106
6205	25	0.9843	52	2.0470	15	0.5906	1.0	0.039	14	7.85	12000	16000	0.128
6206	30	1.1811	62	2.4409	16	0.6299	1.0	0.039	19.5	11.3	10000	13000	0.199
6207	35	1.3780	72	2.8346	17	0.6693	1.1	0.043	25.7	15.3	8800	10000	0.287
6208	40	1.5748	80	3.1496	18	0.7087	1.1	0.043	29.1	17.8	7700	9200	0.367
6209	45	1.7717	85	3.3465	19	0.7480	1.1	0.043	32.5	20.4	6800	8200	0.416
6210	50	1.9685	90	3.5433	20	0.7874	1.1	0.043	35	23.2	6100	7300	0.462
6211	55	2.1654	100	3.9370	21	0.8268	1.5	0.059	43.5	29.2	5500	6600	0.602
6212	60	2.3622	110	4.3307	22	0.8661	1.5	0.059	52.5	36	5000	6000	0.789
6213	65	2.5591	120	4.7244	23	0.9055	1.5	0.059	58.5	40.5	4800	5800	0.99
6214	70	2.7559	125	4.9213	24	0.9449	1.5	0.059	63.7	45	4600	5600	1.1
6215	75	2.9528	130	5.1181	25	0.9843	1.5	0.059	68.9	49	4400	5400	1.2

ABEC-1 Tolerance Class ABEC-1 (P0)

Inner Ring									Tolerance in um/s
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max			max	max	high	low	max
1)0.6	2.5	0	-8	10	8	6	6	10	0	-40	12
2.5	10	0	-8	10	8	6	6	10	0	-120	15
10	18	0	-8	10	8	6	6	10	0	-120	20
18	30	0	-10	13	10	8	8	13	0	-120	20
30	50	0	-12	15	12	9	9	15	0	-120	20
50	80	0	-15	19	19	11	11	20	0	-150	25

Outer Ring									Tolerance in um/s
D mm		Δdmp		VDp²)⁴)Open Bearings Diameter Series			Capped Bearings²)³)	Vdmp	Kia	ΔBs		Vbs
D mm		Δdmp		9	0,1	2,3,4	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max				max	max	high	low	max
1)2.5	6	0	-8	10	8	6	10	6	15	Identical to ΔBs and VBs of inner ring of same bearing
6	18	0	-8	10	8	6	10	6	15
18	30	0	-9	12	9	7	12	7	15
30	50	0	-11	14	11	8	16	8	20
50	80	0	-13	16	13	10	20	10	25
80	120	0	-15	19	19	11	26	11	35
120	150	0	-18	23	23	14	30	14	40

ABEC-3 Tolerance Class ABEC-3 (P6)

Inner Ring									Tolerance in um/s
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max			max	max	high	low	max
11)0.6	2.5	0	-7	9	7	5	5	5	0	-40	12
2.5	10	0	-7	9	7	5	5	6	0	-120	15
10	18	0	-7	9	7	5	5	7	0	-120	20
18	30	0	-8	10	8	6	6	8	0	-120	20
30	50	0	-10	13	10	8	8	10	0	-120	20
50	80	0	-12	15	15	9	9	10	0	-150	25

Outer Ring									Tolerance in um/s
D mm		Δdmp		VDp²)⁴)Open Bearings Diameter Series			Capped Bearings²)³)	Vdmp	Kia	ΔBs		Vbs
D mm		Δdmp		9	0,1	2,3,4	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max				max	max	high	low	max
1)2.5	6	0	-7	9	7	5	9	5	8	Identical to ΔBs and VBs of inner ring of same bearing
6	18	0	-7	9	7	5	9	5	8
18	30	0	-8	10	8	6	10	6	9
30	50	0	-9	11	9	7	13	7	10
50	80	0	-11	14	11	8	16	8	13
80	120	0	-13	16	16	10	20	10	18
120	150	0	-15	19	19	11	25	11	20

ABEC-5 Tolerance Class ABEC-5 (P5)

Inner Ring									Tolerance in um/s
d mm		Δdmp		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sis³⁾	ΔBs	Vbs
d mm		Δdmp		9	0,1,2,3,4	Vdmp	Kia	Sd	Sis³⁾	ΔBs	Vbs
over	including	high	low	max		3	max	max	max	High	Low	max
1)0.6	2.5	0	-5	5	4	3	4	7	7	0	-40	5
2.5	10	0	-5	5	4	3	4	7	7	0	-40	5
10	18	0	-5	5	4	3	4	7	7	0	-80	5
18	30	0	-6	6	5	3	4	8	8	0	-120	5
30	50	0	-8	8	6	4	5	8	8	0	-120	5
50	80	0	-9	9	7	5	5	8	8	0	-150	6

Outer Ring									Tolerance in um/s
D mm		Δdmp		Vdp²)Diameter Series		Vdmp	Kia	SD⁴⁾ SD1⁵⁾	Sea⁴⁾⁵⁾	ΔBs		Vbs
D mm		Δdmp		9	0,1,2,3,4	Vdmp	Kia	SD⁴⁾ SD1⁵⁾	Sea⁴⁾⁵⁾	ΔBs		Vbs
over	including	high	low	max			max	max	max	High	Low	max
1)2.5	6	0	-5	5	4	3	5	8	8			5
6	18	0	-5	5	4	3	5	8	8			5
18	30	0	-6	6	5	3	6	8	8			5
30	50	0	-7	7	5	4	7	8	8			5
50	80	0	-9	9	7	5	8	8	10			6
80	120	0	-10	10	8	5	10	9	11			8
120	150	0	-11	11	8	6	11	10	13			8

ABEC-7 Tolerance Class ABEC-7 (P4)

Inner Ring												Tolerance in um/s
d mm		Δdmp		Δds		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sia	ΔBs		Vbs
d mm		Δdmp		Δds		7,8,9	1,7,2,3,4	Vdmp	Kia	Sd	Sia	ΔBs		Vbs
over	including	high	low	high	low	max		max	max	max	max	High	low	Low	max
1)0.6	2.5	0	-4	0	-4	4	3	2	2.5	3	3	0	-40	-40	2.5
2.5	10	0	-4	0	-4	4	3	2	2.5	3	3	0	-40	-40	2.5
10	18	0	-4	0	-4	4	3	2	2.5	3	3	0	-80	-80	2.5
18	30	0	-5	0	-5	5	4	2.5	3	4	4	0	-120	-120	2.5
30	50	0	-6	0	-5	6	4	3	4	4	4	0	-120	-120	3
50	80	0	-7	0	-5	7	5	3.5	4	5	5	0	-150	-150	4

Outer Ring												Tolerance in um/s
D mm		Δdmp		Δds		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sia	ΔBs		Vbs
D mm		Δdmp		Δds		7,8,9	1,7,2,3,4	Vdmp	Kia	Sd	Sia	ΔBs		Vbs
over	including	high	low	high	low	max		max	max	max	max	High	low	max
1)2.5	6	0	-4	0	-4	4	3	2	3	4	5	Identical to ΔBs and VBs of inner ring of same bearing		2.5
6	18	0	-4	0	-4	4	3	2	3	4	5			2.5
18	30	0	-5	0	-5	5	4	2.5	4	4	5			2.5
30	50	0	-6	0	-6	6	5	3	5	4	5			2.5
50	80	0	-7	0	-7	7	5	3.5	5	4	5			3
80	120	0	-8	0	-8	8	6	4	6	5	6			4
120	150	0	-9	0	-9	9	7	5	7	5	7			5

Product Tags:

6214-2RS motor bearings

bearing factory motor bearings

electric motors motor bearings

6214-2RS Motor Bearings For Large Electric Motors From Bearing Factory

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Ningbo Kent Bearing Co., Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	6200 Series Bearing
Brand Name:	BUGAO
Model Number:	6214
Certification:	ISO9001:2015
Place of Origin:	China
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,T/T,Western Union
Supply Ability:	30,000,000 sets per year
Delivery Time:	2-5days
Packaging Details:	Single/Barrel/Individual packing, Industrial/Tube Packing, Custom Packing
Bearing Type:	Single Row Deep Groove
Row Number:	Single
Precision Of Bearing:	P0, P6, P5
Seal Type:	Open, Z, ZZ, RZ, 2RZ, RS, 2RS
Noise Of Bearing:	Z1V1, Z2V2, Z3V3,Z4V4
Tolerance Class:	ABEC-1, ABEC-3, ABEC-5
Material:	Chrome Steel
Bearing Life:	Up to 10 years
Cage Material:	Steel
Material Of Bearing:	Bearing Steel, Stainless Steel, Ceramic
Application:	Electric Motors
Bore Diameter:	130mm
Static Load Rating:	49kN
Weight:	1.2kg
Stock:	Rich
Hs Code:	8482102000
Packaging:	Individual packing, Tube packing, Custom packing
