PET Flakes Separator Non- Ferrous Metal Separator Scrap Aluminum Copper Plastic Eddy Current Separator

Categories Non Ferrous Metal Separator
Brand Name: Xrido
Model Number: Customizable
Certification: CE ISO
MOQ: 1
Delivery Time: 5-30 word days
place of origin: Henan, China
brand name: Xrido
model number: ESS-600-1600
type: Magnetic Separator
warranty: 1 Year
material: Export Wooden Packing
machinery test report: Provided
video outgoing-inspection: Provided
core components: Pressure vessel, motor, Bearing, Gear, PLC, Pump, Engine
weight (kg): 2000 kg
Product name: Eddy Current Separator Non Ferrous Metal Separator
Application: Nonferrous separation
Machine type: waste sorting machine
After Warranty Service: Field Maintenance
Advantage: Easy Operation High Efficiency
Raw material: Ubran Waste Garbage
Separation rate: 98-99%
Function: Garbage Recycling Sorting
Production Capacity: 2500-4500 KG/H, ≥20T/H
Voltage: 380V(can customized)
Condition: New
Showroom Location: None
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Food Shop, Construction works , Energy & Mining, Other
Power: 26.7-79
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

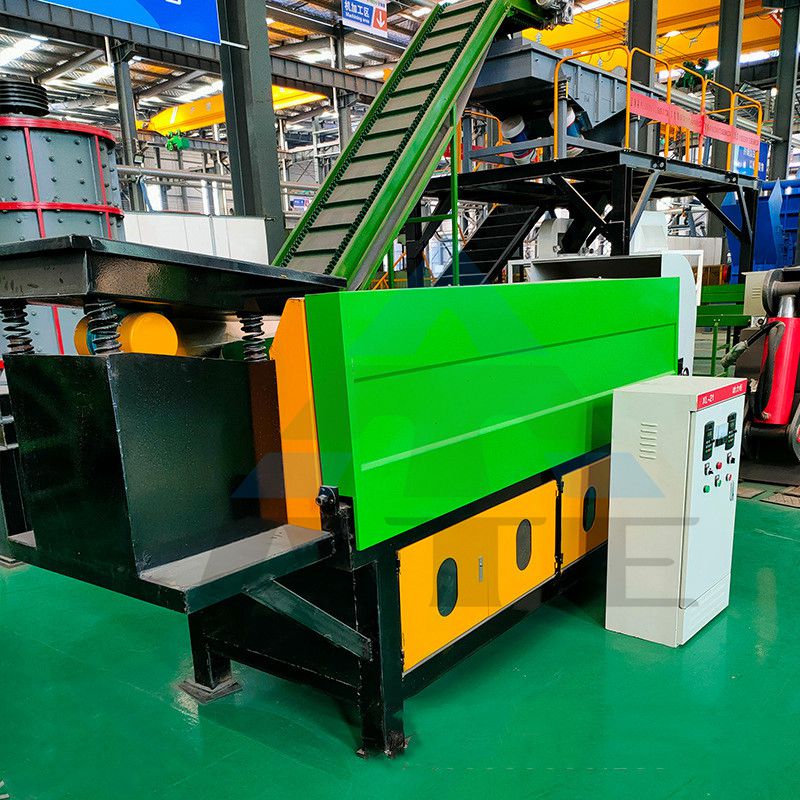

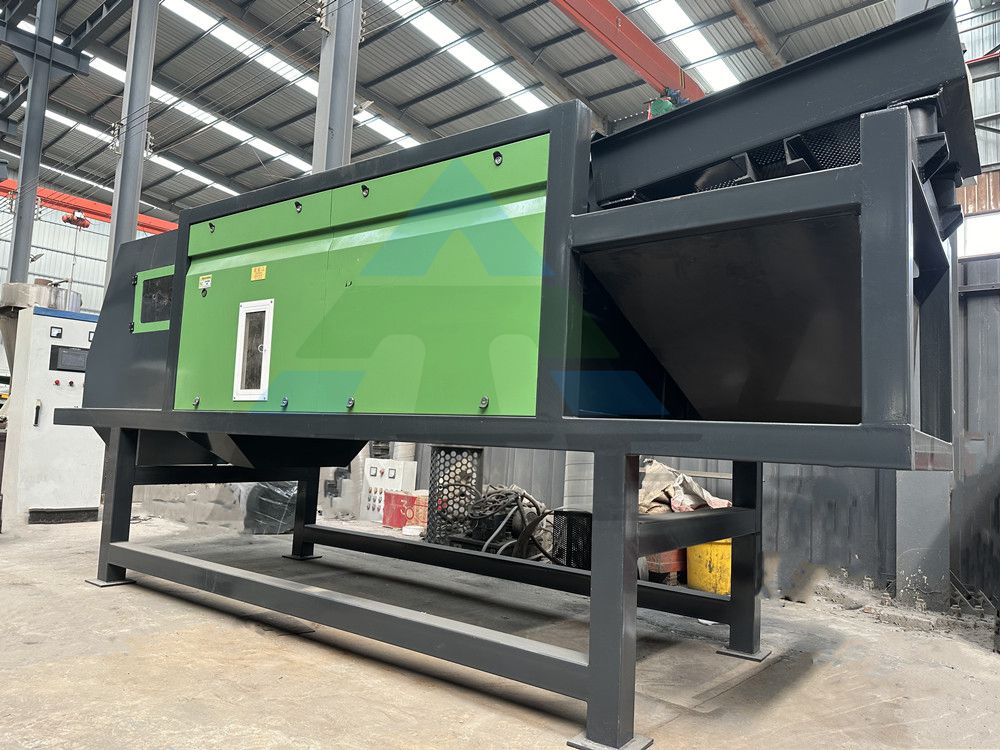

PET Flakes Separator Non- Ferrous Metal Separator Scrap Aluminum Copper Plastic Eddy Current Separator

Products Description

The non-ferrous metal separator uses rare earth permanent magnets to induce eddy currents into metal particles during operation. The repulsive force generated by the eddy currents separates metals from non-metals, providing a cleaner product for subsequent processing. The removal of metals is selective and minimizes product loss.

The non-ferrous metal separator consists of an external drum, an internal permanent magnet rotor, a drive unit and a belt conveyor. The external drum shell is made of non-metallic composite materials and rotates at conventional belt conveyor speeds. The internal rare earth alternating polarity rotor rotates at a much higher speed than the external drum shell.

Through the induction of eddy currents and the resulting repulsive force, the alternating magnetic field selectively repels non-ferrous metals and physically separates them from other materials while minimizing product loss.



Product Paramenters
ModelFlat belt conveyor(HP)Polar wheel drum(HP)workload (Kg)vibrating screen(HP)number of machines
X6002 (1.5kW) or 3 (2.3kW)7.5 (5.6kW)400~8001/22
X8002 (1.5kW) or 3 (2.3kW)10 (7.5kW)500~10001/22
X10002 (1.5kW) or 3 (2.3kW)10 (7.5kW)600~12003/42
X12002 (1.5kW) or 3 (2.3kW)10 (7.5kW)700~14003/42
X15002 (1.5kW) or 3 (2.3kW)15 (11.3kW)800~160012
X18002 (1.5kW) or 3 (2.3kW)15 (11.3kW)1000~200012

Key Features and Benefits of the Eddy Current Separator
• Precision Engineering: Our separator is manufactured with precision to ensure high-speed rotor operation with minimal vibration. The rotor spins at up to 3000 RPM, capable of handling even the smallest electronic components.

• Powerful Eddy Currents: Equipped with high-performance magnets, our separator generates a powerful magnetic field of up to 3000 Gauss, ensuring efficient and precise metal separation.

• Durable and Efficient Separation System: Our advanced separation system accurately identifies and separates non-ferrous metals like aluminum, copper, and zinc, handling a wide range of waste materials.

• Automated Control: The fully automated control system minimizes operator error and ensures optimal performance, reducing downtime and operating costs.

• Environmental Friendly: Our separator features a fully enclosed design to reduce dust emissions and maintain a clean working environment, contributing to a sustainable future.

Product Application
• Electronic waste recycling: Separate valuable metals from electronic scrap.
• Automotive recycling: Recover non-ferrous metals from end-of-life vehicles.
• Metal shredding: Process shredded metal to extract valuable materials.
