High Durability Woven Fabric Dyeing Machine With Double Tube

Categories Woven Fabric Dyeing Machine
Brand Name: Alees
Model Number: AS-631
Certification: CE
Place of Origin: China
MOQ: 1
Price: USD5000-250000
Packaging Details: Wooden Case/Plastic Film
Delivery Time: 6-9 weeks
Supply Ability: 50 sets per month
Shape: L Shape
Meterial: SUS 316L
Voltage: 380V-50HZ
Controller: SEDO6007 / SETEX747 / AS9000A(China) / EAS-PCT310
Control System: Full Automatic
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

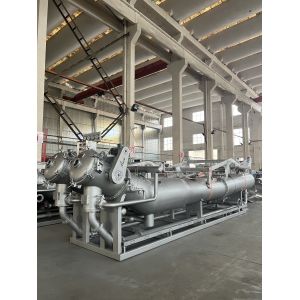

High Durability Woven Fabric Dyeing Machine With Double Tube

Introduction


The AS631 dyeing machine is primarily designed for processing woven fabrics, including natural and synthetic fibers, blended fibers such as T/C, T/R, and T/W, as well as high value-added microfibers and composite fibers. With its large-capacity design, the machine ensures smooth operation for both lightweight and heavyweight fabrics while maintaining an efficient low liquor ratio ranging from 1:6 to 1:8. The system incorporates a large-flow nozzle that works in conjunction with a high-lift main pump to enhance uniform dyeing effects through high-speed circulation. For improved operational efficiency, the machine features a special guide cloth device at the tail section that optimizes fabric arrangement and minimizes production stoppages, ensuring continuous and stable running throughout the dyeing process.


Technical Parameters


-Maximum fabric speed: 600-700 m/min
-Maximum working pressure: Mpa 0.4

-Maximum operating temperature: 135℃
-Heating rate: 20℃~130℃ average 5℃/min
(dry saturated steam pressure at 0.7Mpa)
-Cooling rate: 130℃~80℃ average 2.5℃/min
(cooling water pressure at 0.3Mpa, cooling water temperature: 5℃~10℃)

-Liquor Ratio: 1:5-1:8



Model and Specifications


Model

No. Of Tubes

Capacity (KG)

Dimension

Main Pump Power (KW)

L*W*H (MM)

AS-631-250B

1

250

1800×10250×3250

18.75

AS-631-500B

2

500

2800×10250×3250

41.5

AS-631-1000B

4

1000

5600×10250×3250

65.5
