| Brand Name: | GoreLink |
| Model Number: | GL-FB12-1SC |
| Certification: | RoHS,REACH |
| Place of Origin: | China |
| MOQ: | Negotiable |
| Payment Terms: | T/T, Western Union,Paypal |
| Delivery Time: | 1-7 Working days |
| Packaging Details: | 1pcs/box |
| Part No.: | GL-FB12-1SC |
| No. of Port: | 1 Port |
| Material: | ABS |
| Application: | Outdoor |
| Suitable Adapter: | SC/LC |
| Max Capacitry: | 2 Core |
| Adapter Type: | Simplex/Duplex |
| Cable Diameter: | 6-12mm |
| Mounting Way: | Wall mounted |
| Lock Compatible: | Screws |
| Operating Temperature: | -20℃ to 75℃ |
| Color: | White |
| OEM: | Yes |
| Company Info. |
| Gorelink Communication (Shenzhen) Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

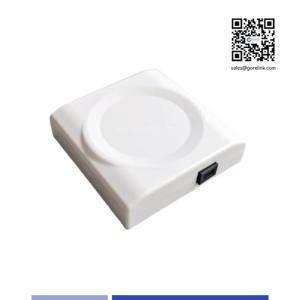

Gorelink Fiber Surface Box is designed to a termination point for
the feeder cable to connect with drop cable in FTTx communication
network system. It cancan be used indoor or outdoor environment. It
can be used to protect the connection between cable and pigtail and
optic fiber terminations in the optic access network. It provides a
safe and organized way to connect fiber optic cables to devices
such as routers, switches, and other networking equipment.
Application
FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks
General Specification
Design | Fiber Wall Box |
Material | ABS |
Mounting Type | Wall Mounting |
Max. Capacity | 2 Fibers |
Suitable Cable | 4.0mm & 2*3mm Drop cable |
Suitable Adapter | LC/SC |
Loaded | SC/APC SM Simplex adapter without flange |
Insertion Loss | ≤ 0.3dB |
Return Loss | ≥ 55dB |
Color | White |
Dimension | 80x80x20.5mm |
Operating Temperature (°C) | -20 ~ +75 |
Storage Temperature (°C) | -40 ~ +85 |
Ordering Information
PART NO. | DESCRIPTION |
GL-FB12-1SC | 1 Port Fiber Surface Box, SC Simplex, unloaded |
GL-FB12-1LC | 1 Port Fiber Surface Box, LC Duplex, unloaded |
GL-FB12-1SC-901 | 1 Port Fiber Surface Box, SC Simplex, Loaded SC/APC SM Simplex Adapter |
GL-FB12-1LC-901 | 1 Port Fiber Surface Box, LC Duplex, Loaded LC/APC SM Duplex Adapter |
* Customized | |
