Incoloy 800 Forged Ring Ni-Fe-Cr Superalloys Circle-Shaped Components

Incoloy 800 Forged Ring Ni-Fe-Cr Superalloys Circle-Shaped Components

Incoloy 800 Forged Rings are forged ring-shaped precision components made of Ni-Fe-Cr-based superalloys, with the following core features and applications:

1. Core attributes
▶Composition: Ni (30~35%), Cr (19~23%), Fe (balance), supplemented by Al, Ti, C and other elements (low C design + Ti/C ratio optimization to improve intergranular corrosion resistance).
▶Metallographic structure: Face-centered cubic lattice, the grains are refined and arranged along the direction of force after forging, and the stability is excellent.
2. key performance
▶High temperature resistance: It can work stably for a long time above 800°C, and is resistant to high temperature oxidation, carburizing, and vulcanization.
▶Strong corrosion resistance: Resists corrosion from acids and alkalis, seawater, and high-temperature media, especially against chloride stress corrosion and cracking.
▶Mechanical strengthening: Forging eliminates internal defects, making the tensile strength reach more than 550MPa, and the creep resistance and fatigue resistance are much better than that of castings.
3. Manufacturing and standards
▶Forging process: Hot forging temperature 800~1200°C, through die forging/ring rolling forming, and then through solution treatment to optimize the structure.
▶Standard compliance: ASTM B564 (forging specification), ultrasonic flaw testing (UT), grain size testing (ASTM No. 5 or above) is required for key parts.
4. Typical applications
▶Petrochemical energy: Cracking furnace flanges, ethylene furnace tube bearing rings, hydrogen reformer manifolds (800°C+ high temperature media corrosion resistance);
▶Nuclear power field: Steam generator ring seals (resistant to high temperature and high pressure water corrosion);
▶High-end equipment: Gas turbine combustion chamber ring, high temperature heat exchanger tube sheet (to withstand thermal cycling and pressure).
5. Comparative advantages
It has 30% higher high temperature resistance than pure nickel alloys and 50% stronger resistance to complex corrosion than stainless steel, and the forging process further strengthens the mechanical properties, making it a core bearing component under extreme working conditions.

In short, Incoloy 800 forging rings have become the "top material" for high-end industries such as energy and chemical industry by virtue of the composite advantages of "high temperature + corrosion resistance + strong toughness".

DINGSCO

Hunan Dinghan New Material Technology Co., Ltd. (DINGSCO) specialized in Nickel Based Corrosion Resistant and High Temperature alloys products which used in the world’s most technically demanding industries and applications.We are dedicated to providing our customers with best quality products, fastest possible deliveries, most competitive prices of Nickel Based Corrosion Resistant and High Temperature alloys in bars, rods, forged flanges, valve parts (Ball, Stem, Seat Ring, etc), forged shapes (shafts, discs, blocks, hubs, rings, cylinders and other custom shapes) according to ASTM, ASME, API, AMS, NACE and other industry standards.

PROFESSIONAL NICKEL ALLOY MANUFACTURER

• Monel, Incoloy, Inconel, Hastelloy
• VIM, ESR, Forging, Heat treatment, Machining
• Round Bar, Ball, Stem, Ring, Flange, etc
• ISO9001, API-6A, API-20B, PED, NORSOK

CORE VALUE

• QUALITY ASSURANCE
• SCIENCE AND TECHNOLOGY INNOVATION STRATEGY
• COOPERATION

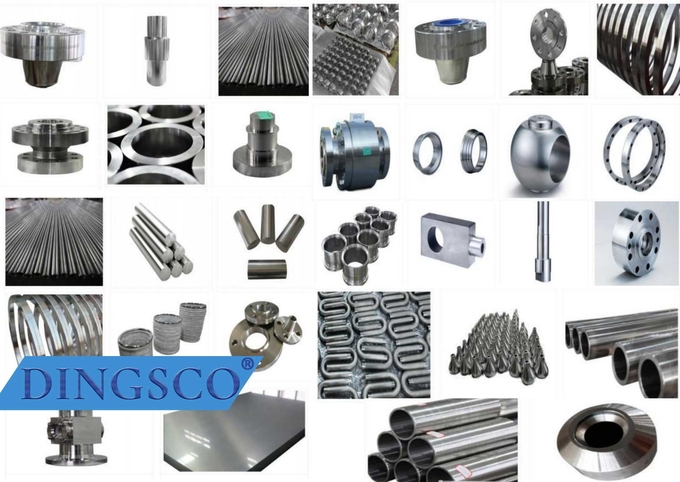

CUSTOMIZED PRODUCTS:

APPLICATION:

Hunan Dinghan New Material Technology Co.,Ltd. (DINGSCO) specialized in Nickel Based Corrosion Resistant and High Temperature alloys products which used in the world’s most technically demanding industries and applications.

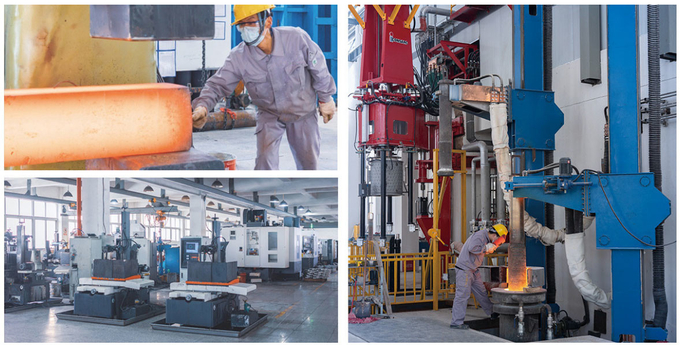

We have complete advanced technology facilities to produce best quality alloys to meet exacting your specifications such as VIM (Vacuum lnduction Melting) furnace to provide high purity Alloys,ESR (Electro Slag Re-melting) furnace to enhances the structure and purity of the Alloys, and CNC machining equipments (Lathe, Wire cutting, Drilling,Milling) to provide high precision finished products.

We are dedicated to providing our customers with best quality products,fastest possible deliveries, most competitive prices of Nickel Based Corrosion Resistant and High Temperature alloys in bars,rods,forged flanges, valve parts, forged shapes (shafts, discs, blocks, hubs,rings, cylinders and tailor shapes) according to ASTM,ASME,API,AMS, NACE and other industry standards.

We can help you gain a competitive edge in the market by responding to a rush quote in less than 24 hours and even complex requests for price and delivery quotations are responded to within 48 hours.
