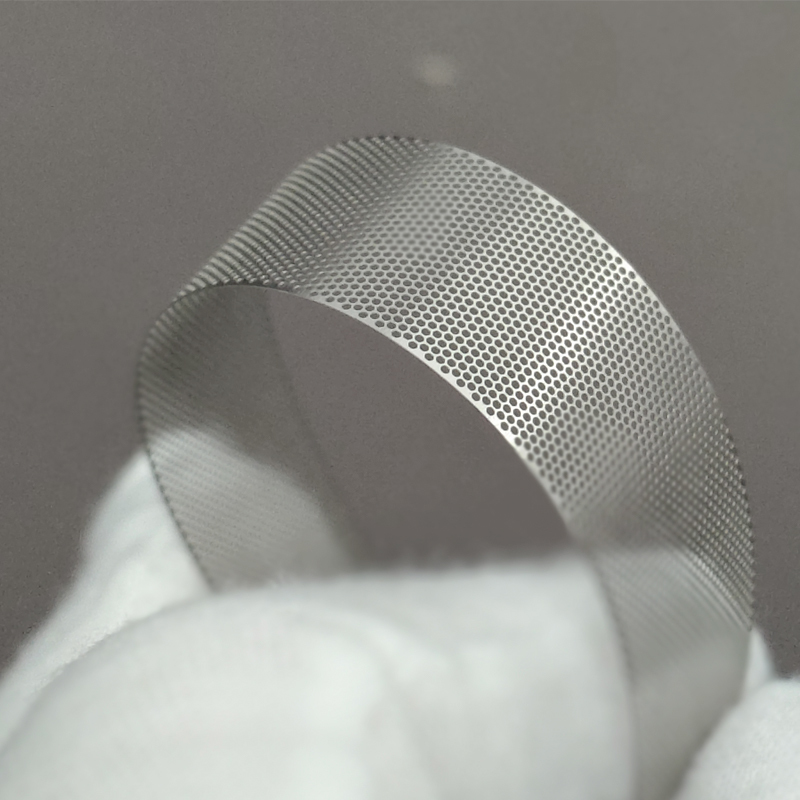

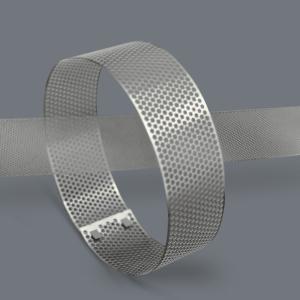

High Precision Metal Mesh for Smoke Detector with Chemically Etching Service

High Precision Metal Mesh for Smoke Detector with Chemically Etching Service

Features of Metal Mesh for Smoke Detector:

• High Precision: Our chemically etched stainless steel mesh ensures uniform hole size and placement, optimizing performance in smoke detection systems.
• Customizable Thickness: Available in 0.1mm, 0.2mm, and 0.3mm thicknesses to fit various smoke detector models.
• Corrosion Resistance: Crafted from premium stainless steel for excellent rust and corrosion resistance, ensuring durability in tough environments.

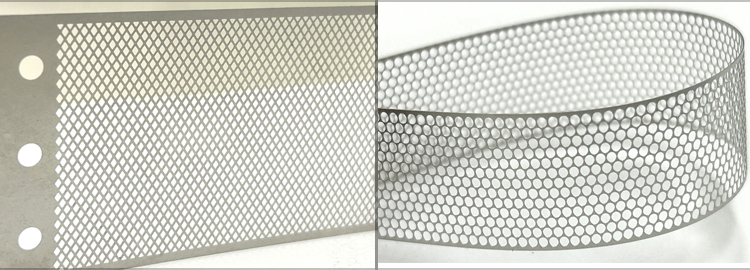

• Fine Mesh Pattern: Delivers superior filtration and airflow, crucial for accurate smoke detection.
• Lightweight & Durable: Thin yet strong, providing durability without extra weight for the smoke detector.

Specifications of Etched Metal Mesh for Smoke Detector:

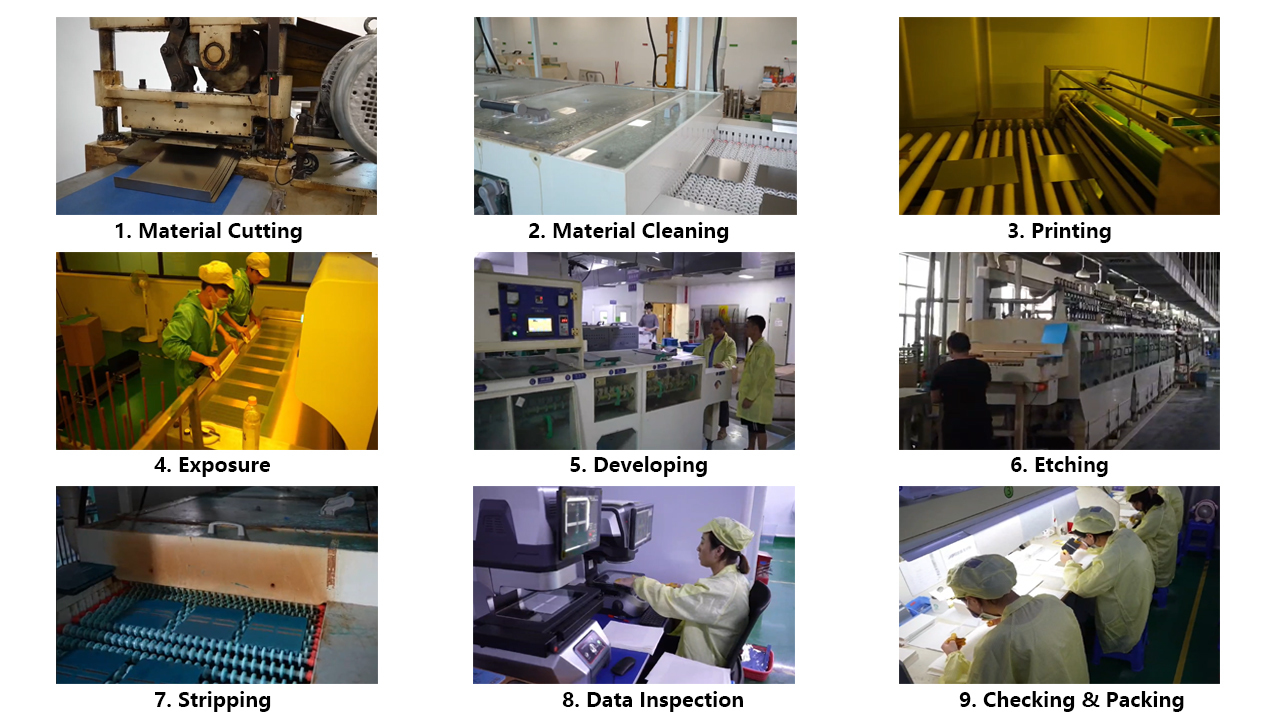

How to Chemically Etch Metal Mesh for Smoke Detectors:

1. Material Cutting: Cut the stainless steel sheet to the required size and thickness (0.1mm, 0.2mm, or 0.3mm).
2. Material Cleaning: Clean the surface to remove grease, dust, and oxidation for proper photoresist adhesion.
3. Printing: Print the mesh pattern onto the metal using photolithography or digital printing.
4. Exposure: Expose the photoresist to UV light, hardening the exposed areas and leaving the unexposed ones soft.
5. Developing: Remove the unexposed photoresist, revealing the mesh pattern.
6. Etching: Submerge the metal in an etching solution (e.g., ferric chloride) to dissolve the exposed metal and form the mesh.
7. Stripping: Remove the remaining photoresist using a chemical stripper.
8. Data Inspection: Inspect the etched mesh under a microscope to ensure accuracy.

Advantages of Etched Metal Mesh for Smoke Detectors:

How to Custom Metal Mesh for Smoke Detectors from Us:

• Consultation & Design: Share your mesh specifications (size, thickness, aperture, material), and we’ll ensure your design needs are met.

• Prototype Development: We provide a prototype for approval, allowing you to test its fit and performance.

• Custom Production: Upon approval, we begin mass production, ensuring precision and consistency with advanced etching techniques.

• Quality Assurance: Each mesh is inspected for hole size, corrosion resistance, and durability to meet quality standards.

• Flexible Order Quantities: We offer flexible order sizes, whether small or large scale.

• On-time Delivery: We ensure fast delivery without compromising quality, meeting your schedule.

For over 13 years Xinhaisen has pioneered developments in photochemical etching, achieving standards admired by the industry and appreciated by a global customer base from a wide range of high-tech engineering markets.

Since found in 2012, in affiliating with our customers we have pioneered many new production techniques and methodologies in order to better serve their needs. It is these techniques that have advanced our capabilities further, enabling us to take what was once considered art and turn it into a science.

Now, we became China's leading photochemical etching specialist, with also the capacity of offering stamping and laser-cutting service. Our products include etching bipolar plates for fuel cell, speaker grills,  micro meshes&filters, tea&coffee infusers, shims&gaskets, Optical encoderdisk&strip, EMI/RFI shielding, Leadframes, connectors&contacts, printingstencils&foils and metal crafts.

Quality and service is our mission, Xinhaisen is committed to pursuing the highest standards of environmental performance. Responsibility for sustainability resides with all employees. The company has achieved ISO 14001 and IS0 9001 and IATF 16949 and is committed to maintaining that standard. With a fast response, high quality, best service and fair price, we have gained high reputation from our customers all over the world.
