A4VSO355DRG 30R-PPB13N00 Hydraulic Pump for Off-Highway Machinery

Categories Mechanical Hydraulic Pump
Brand Name: Rexroth
Model Number: A4VSO355DRG 30R-PPB13N00
Certification: cc
Place of Origin: Germany
MOQ: 1
Price: RMB/100-10000/PC
Payment Terms: T/T
Supply Ability: 10PCS/days
Delivery Time: 3 work days
Packaging Details: wooden case/carton
Material: Cast Iron
Local Service Location: None
Shipping Date: Within 3 Days After Payment
Payment: TT
Standard Or Nonstandard: standard
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

A4VSO355DRG 30R-PPB13N00 Hydraulic Pump for Off-Highway Machinery

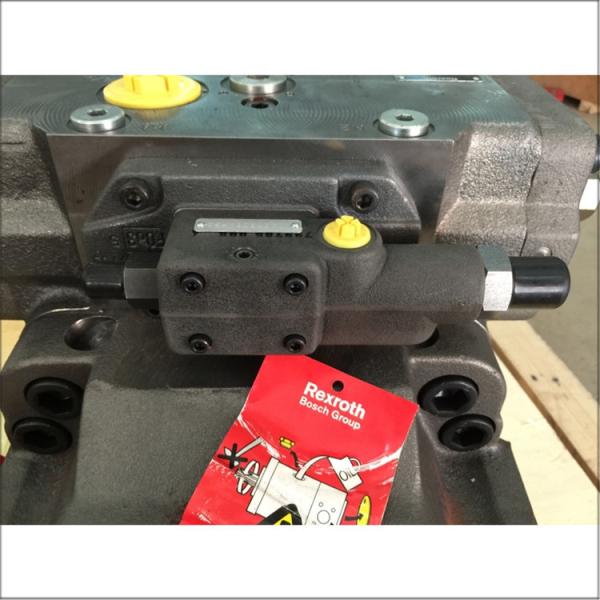

Rexroth Hydraulic Pump A4VSO355DRG 30R-PPB13N00

The A4VSO355DRG 30R-PPB13N00 represents the pinnacle of hydraulic pump technology from Rexroth, engineered for the most demanding open-circuit hydraulic applications. This industrial-grade variable displacement axial piston pump delivers exceptional performance with its massive 355 cm³ displacement capacity, operating at a nominal pressure of 350 bar and capable of handling peak pressures up to 400 bar.

Technical Specifications:

  • Construction: Heavy-duty cast iron housing (187.9 kg)

  • Performance Parameters:

    • Speed range: 0-2200 RPM

    • Variable flow rate controlled by displacement and speed

    • Operating temperature range: -25°C to +90°C (-13°F to +195°F)

  • Fluid Compatibility: Compatible with mineral and synthetic hydraulic oils (15-160 mm²/s viscosity)

  • Sealing Options: Available with Viton or NBR seals

  • Control System: Pressure-controlled operation with clockwise rotation (R)

Key Features & Benefits:

  1. Precision Flow Control: Advanced variable displacement mechanism enables precise flow adjustment to match exact system requirements

  2. Extreme Pressure Performance: 400 bar maximum pressure capability for heavy industrial applications

  3. Superior Reliability:

    • Robust cast iron construction ensures extended service life

    • Excellent suction characteristics maintain stable performance

    • Low-noise operation suitable for noise-sensitive environments

  4. Flexible System Integration:

    • Modular design simplifies installation

    • Multiple mounting options available

    • Visual swivel angle indicator for easy operation monitoring

  5. Responsive Operation: Fast response times guarantee precise hydraulic control

Industrial Applications:

  • Heavy Construction Equipment: Hydraulic systems for excavators, cranes, and bulldozers

  • Metal Processing: Hydraulic stations in rolling mills and forging equipment

  • Plastic Manufacturing: High-pressure control for injection molding machines

  • Material Processing: Ceramic and refractory press applications

  • General Industrial Use: Heavy-duty hydraulic power units

Bosch Rexroth A4VSO40DR10R-PPB13N00 hydraulic pump
