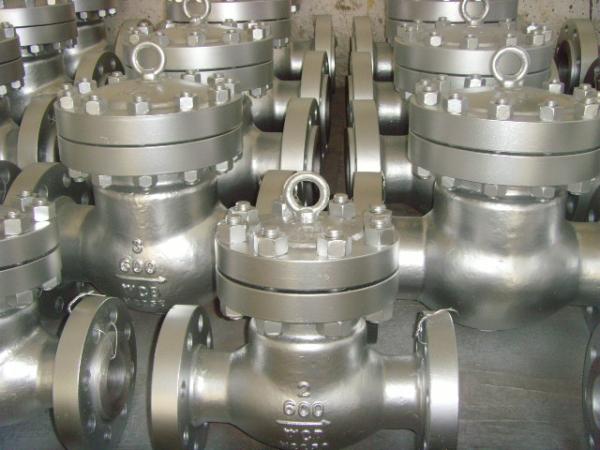

API Standard Cast Steel Swing Check Valve With Eye Bolt Class 150LBS - 900LBS

API Standard Cast Steel Swing Check Valve With Eye Bolt Class 150LBS - 900LBS

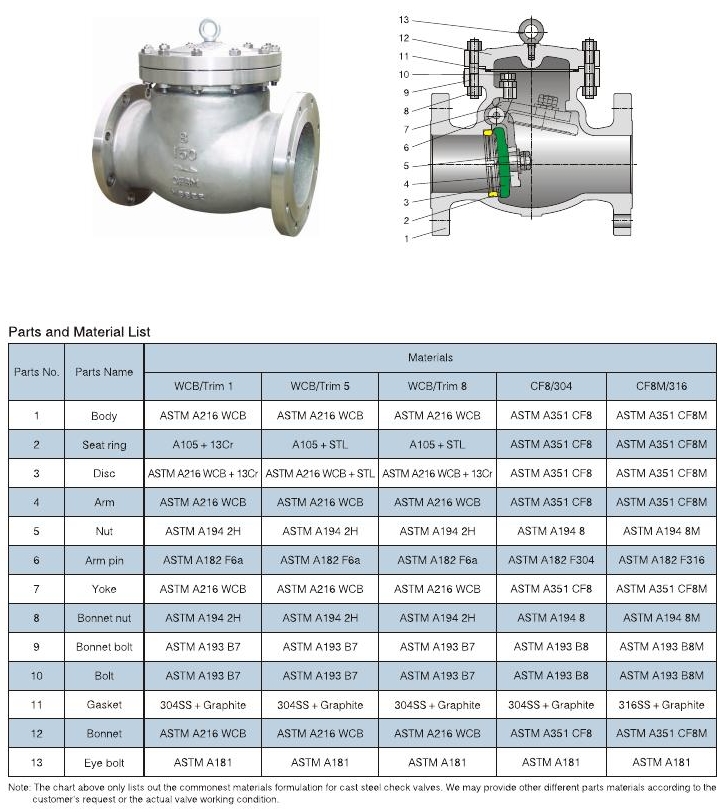

Swing Check Valve And Non-Return Valve NRV:

1. Design & Manufacture: API6D, ANSI B16.34, BS1868
2. Bolted Bonnet, Swing Type Disc,
3. Size Range: 2" to 24".
4. Pressure Ratings: ANSI 150LB, 300LB, 600LB, 900LB
5. End Connections: Flanged, Butt Weld.
6. Materials: WCB, LCB, CF8, CF8M, CF3, CF3M, WC6, WC9, C5, C12 or Equivalent,

7. Various Trim Materials Available to Suit Service Conditions;
8. NACE MR 0175

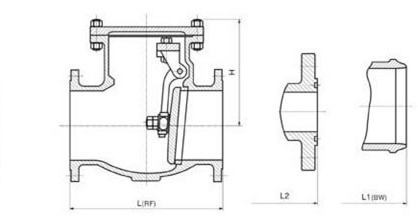

Dimensions for Api Standard Cast Steel Swing Check Valve:

Class 150LBS

Class 300LBS

Class 600LBS

Class 900LBS

Tengs Valve is a professional industrial valves, strainers and pipe fittings supplier and exporter. We focus on the  valves manufacturing and export for more than 20 years.

We supply various kinds of valves and strainers, and the leading products are Y type strainer, Basket strainer, Gate valve, Globe valve, Swing check valve, Ball valve, Butterfly valve, Temporary strainer, Tee strainer, Air release valve and flange etc; All the products are designed and manufactured according to the international standards API, ANSI, GB and DIN; And main materials are carbon steel, alloy steel and stainless steel, such as WCB, WCC, LCB, LCC, WC6, WC9, C5, C12, CF8, CF8M, CF3, CF3M, A105, LF2, F11, F22, 304, 304L, 316, 316L, F51, F53. Size range from 1/2″ to 48″ (DN15 - DN1200); Pressure rating from Class 150 to Class 2500, PN10 - PN100;

The products are widely used in Petroleum, Nature gas, Chemical, Power industry and water treatment fields.

Now our products are exported around world, specially to South-East Asia, Middle-East region, West Europe, East Europe and South America.

Good quality and fast delivery. We are continuous improving our service to meet all of your requirements.
