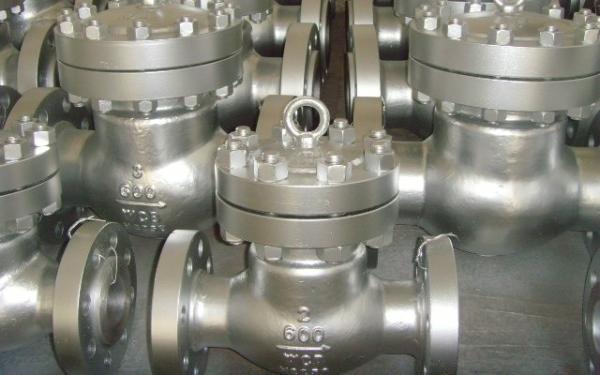

API 6D Cast Steel Flanged Swing Check Valve Class 600Lbs

API 6D Cast Steel Flanged Swing Check Valve Class 600Lbs

Carbon Steel Flanged Swing Check Calve, NON-RERUN VALVE Class 600LB

1. Design & Manufacture: API6D, ANSI B16.34, BS1868
2. Bolted Bonnet, Swing Type Disc,
3. Size Range: 2" to 24".
4. Pressure Ratings: ANSI 150, 300, 600, 900, 1500LBS
5. End Connections: Flanged, Butt Weld.
6. Materials: WCB, LCB, CF8, CF8M, CF3, CF3M, WC6, WC9, C5, C12 or Equivalent,

7. Various Trim Materials Available to Suit Service Conditions: Trim 1#, 8#, 5#, 10#, 12# etc.
8. Cover with Lift Lug

9. NACE MR 0175

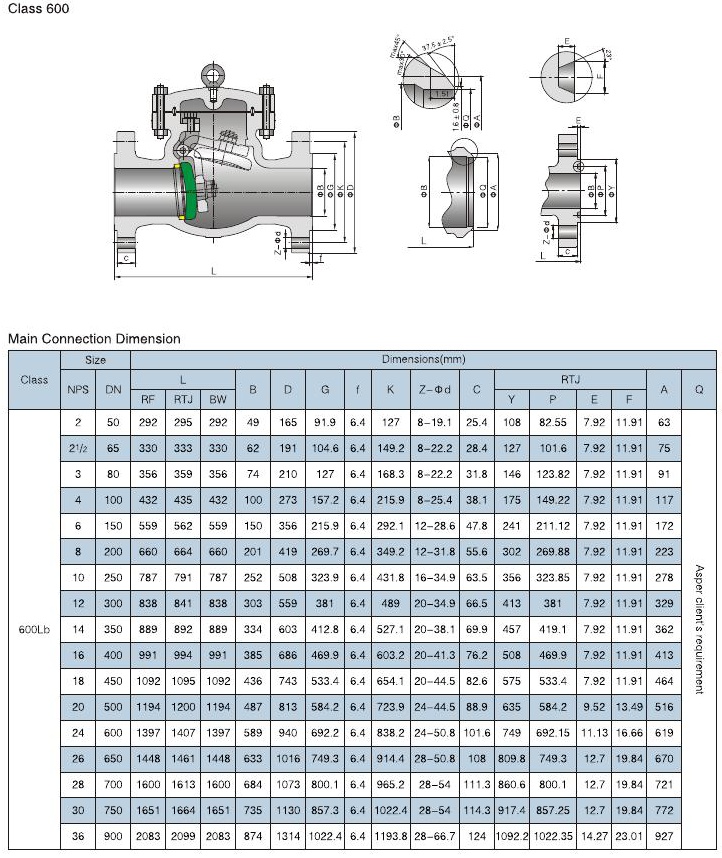

CAST STEEL SWING CHECK VALVE, NON-RETURN VALVE CLASS 600 DIMENSIONS:

Tengs Valve is a professional industrial valves, strainers and pipe fittings supplier and exporter. We focus on the  valves manufacturing and export for more than 20 years.

We supply various kinds of valves and strainers, and the leading products are Y type strainer, Basket strainer, Gate valve, Globe valve, Swing check valve, Ball valve, Butterfly valve, Temporary strainer, Tee strainer, Air release valve and flange etc; All the products are designed and manufactured according to the international standards API, ANSI, GB and DIN; And main materials are carbon steel, alloy steel and stainless steel, such as WCB, WCC, LCB, LCC, WC6, WC9, C5, C12, CF8, CF8M, CF3, CF3M, A105, LF2, F11, F22, 304, 304L, 316, 316L, F51, F53. Size range from 1/2″ to 48″ (DN15 - DN1200); Pressure rating from Class 150 to Class 2500, PN10 - PN100;

The products are widely used in Petroleum, Nature gas, Chemical, Power industry and water treatment fields.

Now our products are exported around world, specially to South-East Asia, Middle-East region, West Europe, East Europe and South America.

Good quality and fast delivery. We are continuous improving our service to meet all of your requirements.
