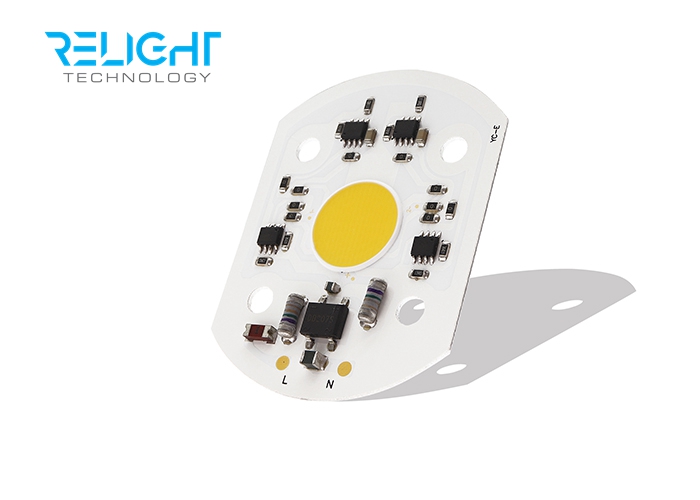

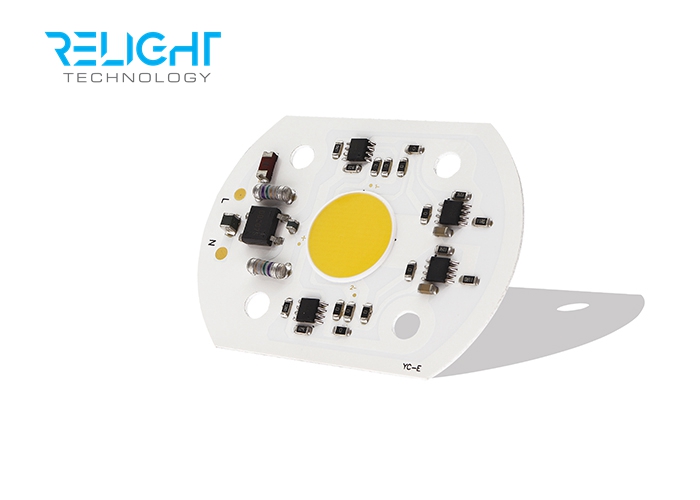

| Categories | DOB LED Module |
|---|---|
| Brand Name: | Relight |
| Model Number: | RLK-TOD4257 |
| Certification: | CE,RoHS |
| Place of Origin: | China |
| MOQ: | 100PCs |
| Price: | 4-8USD/PC |
| Delivery Time: | 10 working days |
| Packaging Details: | standard neutral packing |
| Power: | 20-70W |
| Emitter area: | 20mm |
| Size: | 42*57mm |
| CCT: | 2700-5700K |
| CRI: | 95 |
| Efficiency: | 110lm/W |
| PF: | >0.95 |
| Color variation: | within 5steps macadam |
| Input voltage: | 220-240V |
High efficiency up to 110lm/W, specifically customized;
Quick and easy wiring & assembly with low cost;
High CRI even up to 98;
No color issue, single color support, with special spectrum;
Low thermal resistance, No EMI issue.
Alternative solutions for flood lights
Color variation is within 5-step Macadam
Specification
| DOB Solution | VS | SMT Module+Driver |
| 1.AC220/110V direct-in 2.Fast assembly 3.Easy wiring 4.Low cost 5.High reliability 6.No EMI issue 7.Low thermal resistance 8.No color issue | 1.Color bin control 2.SMT process control 3.Complicated wiring 4.External space for driver 5.Slow assembly 6.Different supplier-Logistics 7.High cost |
| Part Number | Size (mm) | PF | Voltage (VAC) | Emitting area (mm) | Ra | Efficacy (lm/w) | Power (W) |
| Typ | |||||||
| RL-TOD4036A005HV-8** | 40*36 | >0.95 | 120/230 | 10 | >80 | 100 | 5 |
| RL-TOD4036A010HV-8** | 40*36 | 10 | 100 | 10 | |||
| RL-TOD4257A020HV-8** | 42*57 | 20 | 100 | 20 | |||
| RL-TOD4257A030HV-8** | 42*57 | 20 | 100 | 30 |
1. Down lights

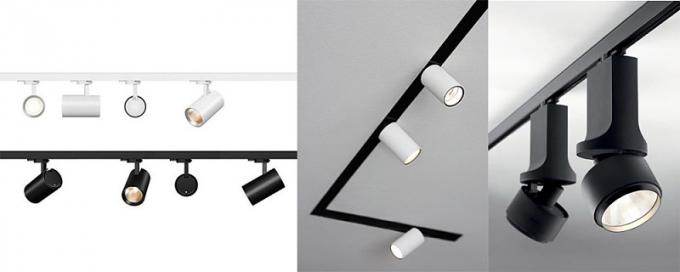

2. Track lights
3. Spot lights
4. Wall Sconces
5. Commercial luminaires
Accessory

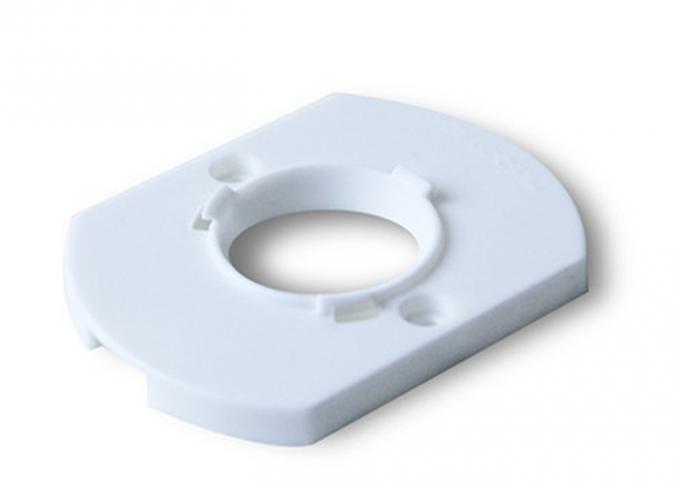

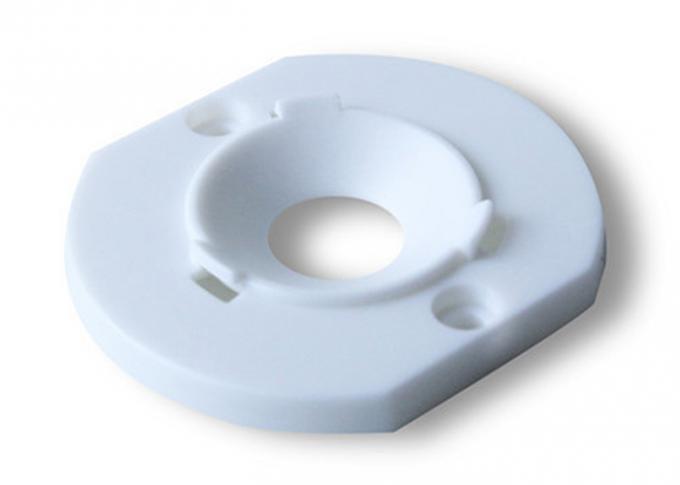

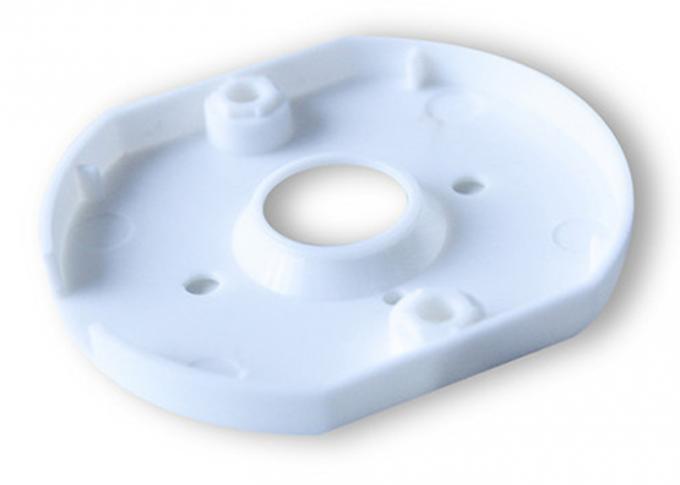

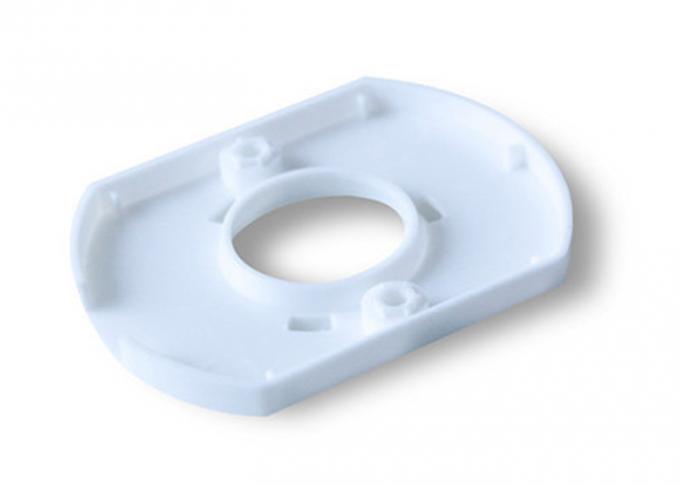

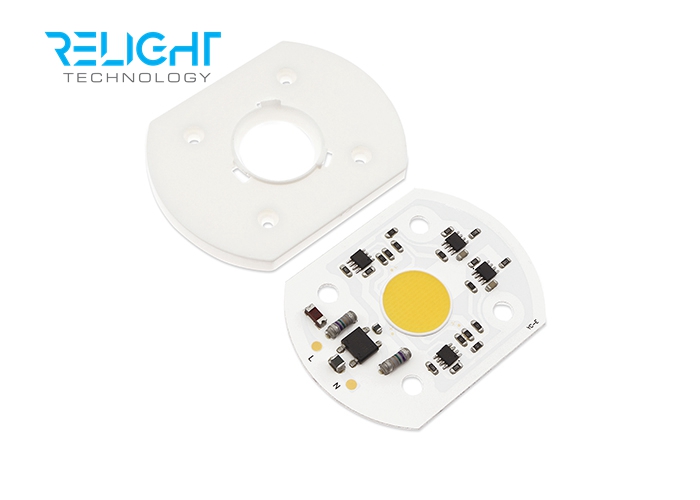

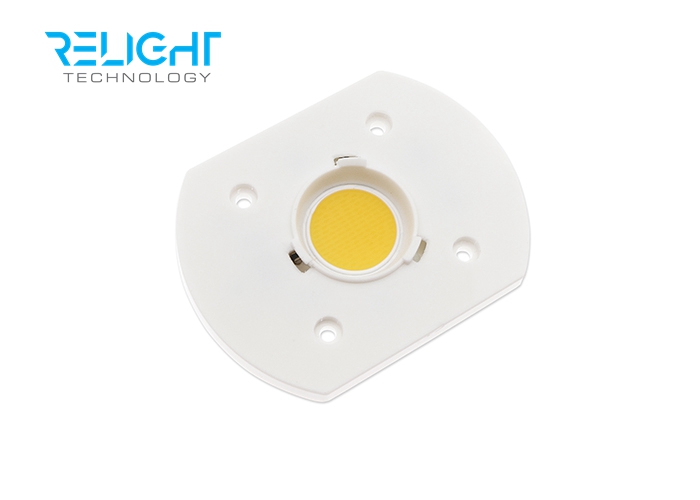

DK50-11-AC-K Holder

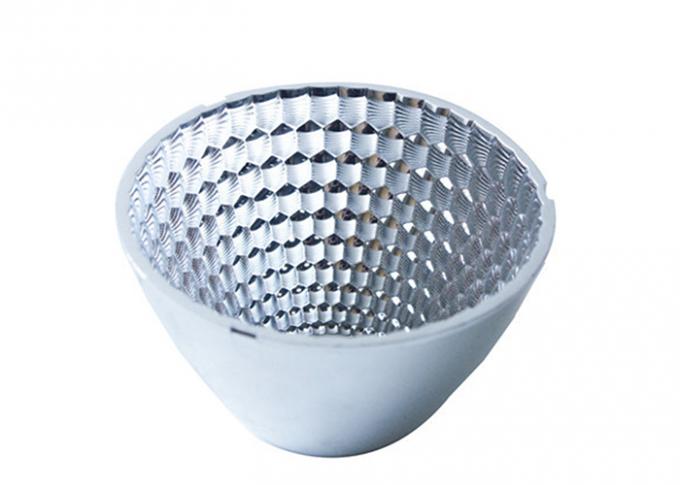

24/40/60 degree reflector
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
A: Low MOQ, 1pc for sample checking is available
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
A: Yes, we offer 2-5 years warranty to our products.
A: Firstly, Our products are produced in strict quality control
system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with
new order for small quantity. For
defective batch products, we will repair them and resend them to
you or we can discuss the solution i
ncluding re-call according to real situation.
|

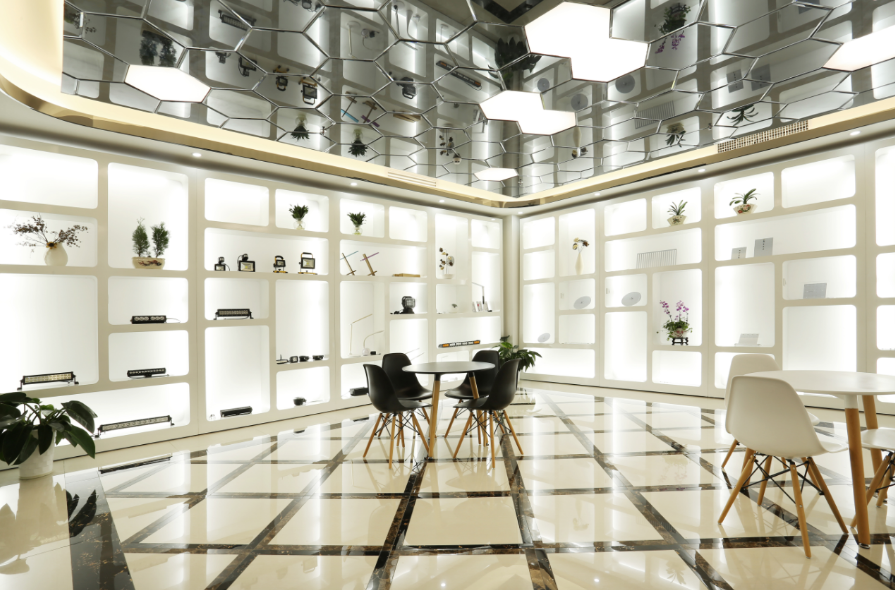

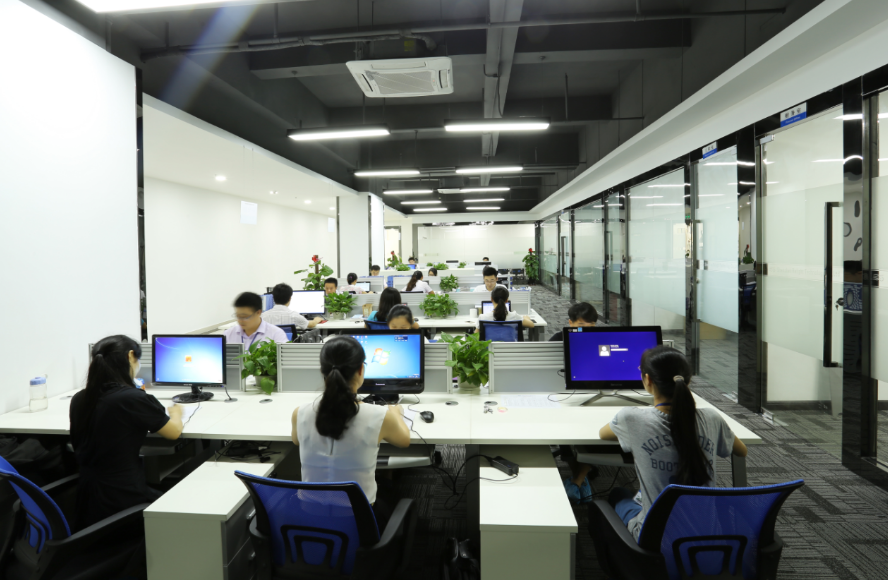

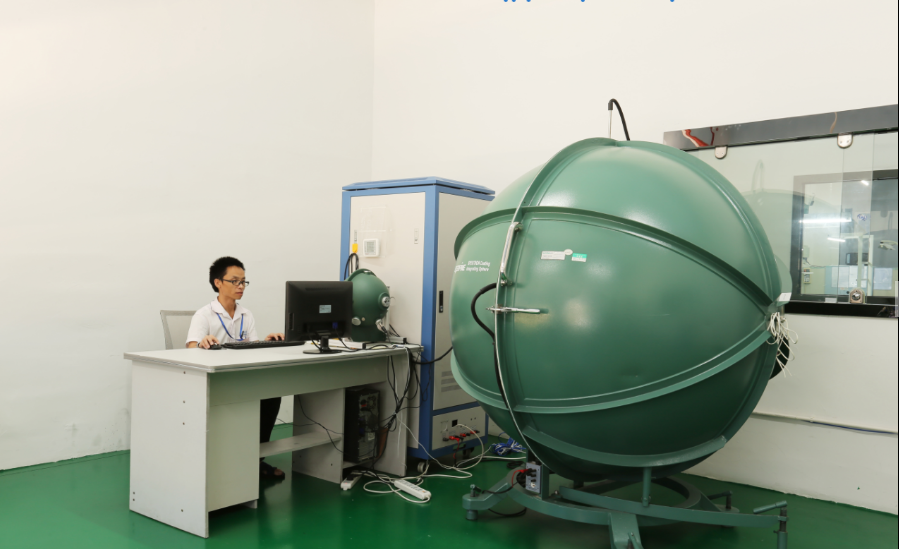

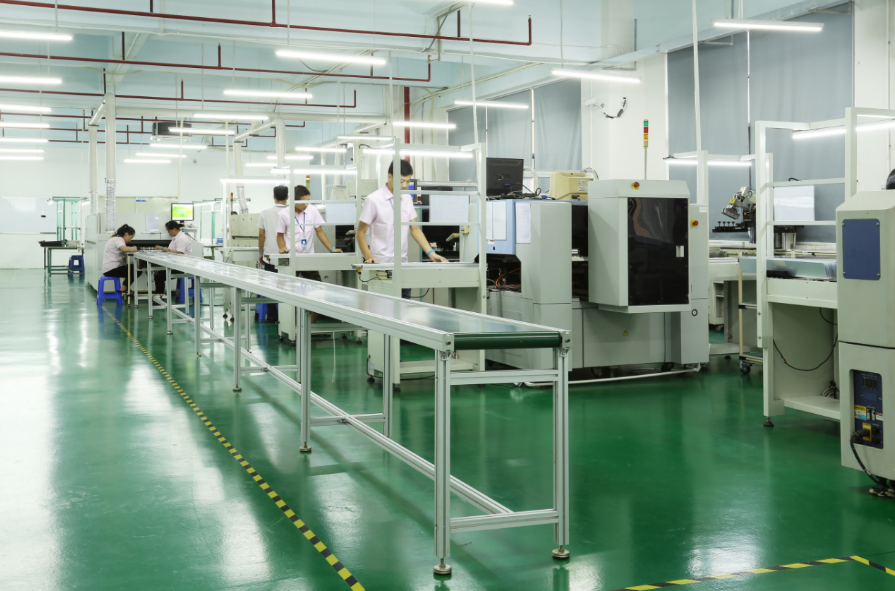

Certifications Factory Edison Bulb ST64 LED Bulb Lights E26 60w Replacement Clear Warm White Customized Specialised
