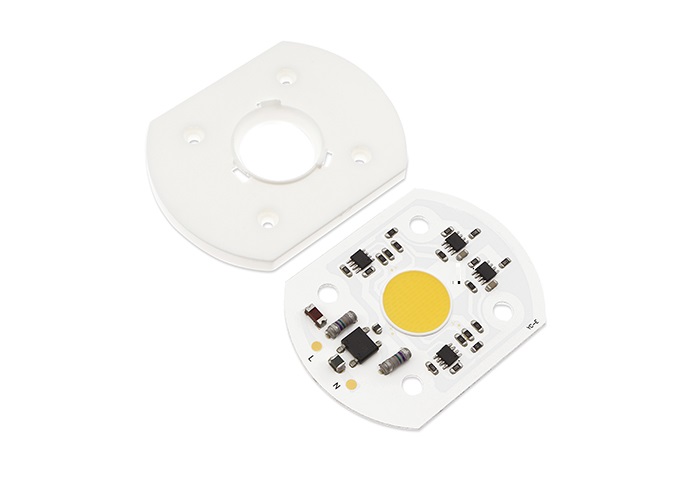

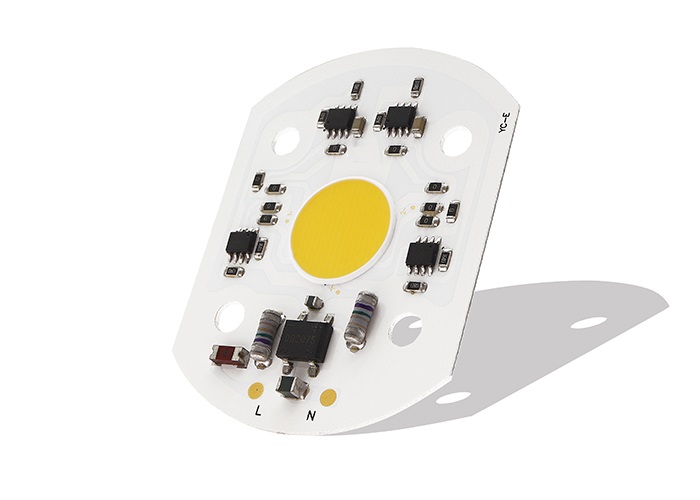

COB LED PCB Module High Voltage AC 220V 50W Sport light Downlight

COB LED PCB Module High Voltage AC 220V 50W Sport light Downlight

Quick Details:

Feature:

l CRI:80/90/95 options

l High total efficiency

l Various CCT available:2700-6500K

l CRI:80/90/95 options

l Solutions for Down-light/ Track light/ Flood light etc.

l 230Vac input directly without driver

l Surge protection 2.0KV

l Power factor higher than 0.95, Low THDI<10%

Characteristics:

Input Voltage 200~240Vac

Frequency 50/60Hz

Protection IP20

Surge level 2.0KV

Hi-pot 1.5KVac

THDI <10%

Storage temperature -30-85℃

Operation temperature -30-90℃(Ts of led components)

Beam Angle 120 deg

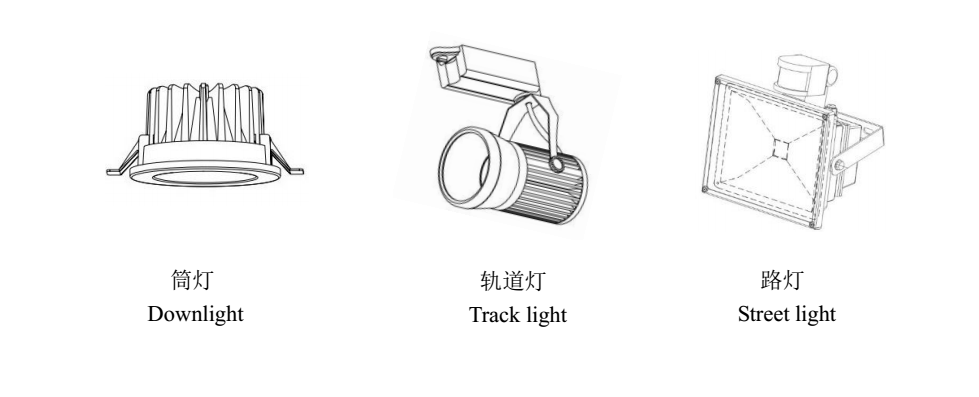

Application:

Competitive Advantage:

Why us Relight?

Super Capable

Relight offers the latest in assembly capabilities and qualifications insuring that

quality is built into every product we produce.

------------------------------------------------------------------------------

Many years' Experience

When it comes to your build you want a partner you can depend on.

Our management team has over 8 years of combined industry knowledge. O

ur engineering team has over 10years experience.

--------------------------------------------------------------------------------

Professional Engineer

We pride ourselves on our ability to custom tailor programs around our customers' needs.

ABOUT US

Shenzhen Relight Technology Co., Ltd. is professional in the designing, producing LED Module, LED Strip and finish LED  products based on specific project. Relight is exporting to the global customers, focusing on the main markets of Australia, Europe and North America. Relight factory has dust free anti-static room, fully-automatic manufacturing line and high performance testing equipment, which is able to deliver to the customers within 2 weeks. Relight also own its strong develop and research ability with own patents in LED industry.

Relight is also committed to provide more practical, comfortable, simple, and artical light products and solutions.We seek the research and design of “lighting module” products, thus optimizing either consuming electric products, domestic products or healthcare and commercial products.

Based on a thorough understanding of the customer needs, Relight engineers can design the products according customers idea and comments till the satisfied products out. RELIGT solution will be your best one, and you can do now with starting here.
