Worm Gear Stepper Motor 4 Leads Nema 23 Small Geared Stepper Motor 1.2N.M 2.8A Current For Industrial

Categories Geared Stepper Motor
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Model Number: JK57HS56-2804SV
Certification: CE, ROHS,ISO9001
Price: US $30 - 39 / Pieces
MOQ: 3-10pcs
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 30000 pcs/month
Phase: 2
Type: Hybrid
Step Angle(degrees): 1.8 Degree
Holding Torque: 1.2N.m
Current / Phase: 2.8A
Weight: 0.68kg
Motor length: 56mm
Leads(No.): 4
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Worm Gear Stepper Motor 4 Leads Nema 23 Small Geared Stepper Motor 1.2N.M 2.8A Current For Industrial

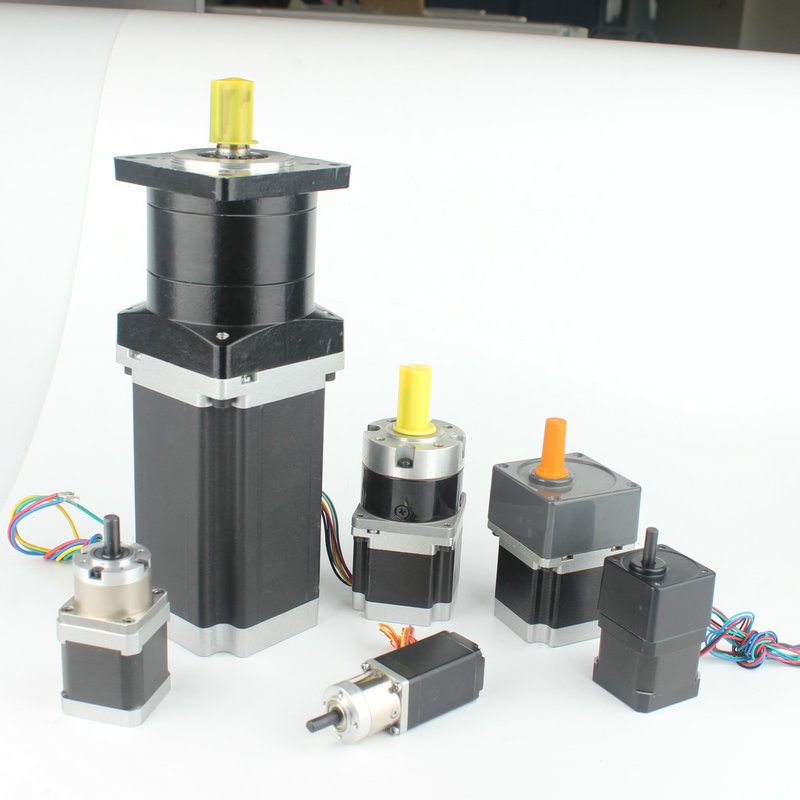

Stepper Motor Worm Gear / Stepping Motor Nema23 1.2N.m With Gearbox Ratio From 1:5 to 1:100



Genaral Specification of worm gear stepper motor nema 23:


Item

Specifications

Step Angle

1.8°

Temperature Rise

80℃max

Ambient Temperature

-20℃~+50℃

Insulation Resistance

100 MΩ Min. ,500VDC

Dielectric Strength

500VAC for 1minute

Shaft Radial Play

0.02Max. (450g-load)

Shaft Axial Play

0.08Max. (450g-load)

Max. radial force

75N (20mm from the flange)

Max. axial force

15N


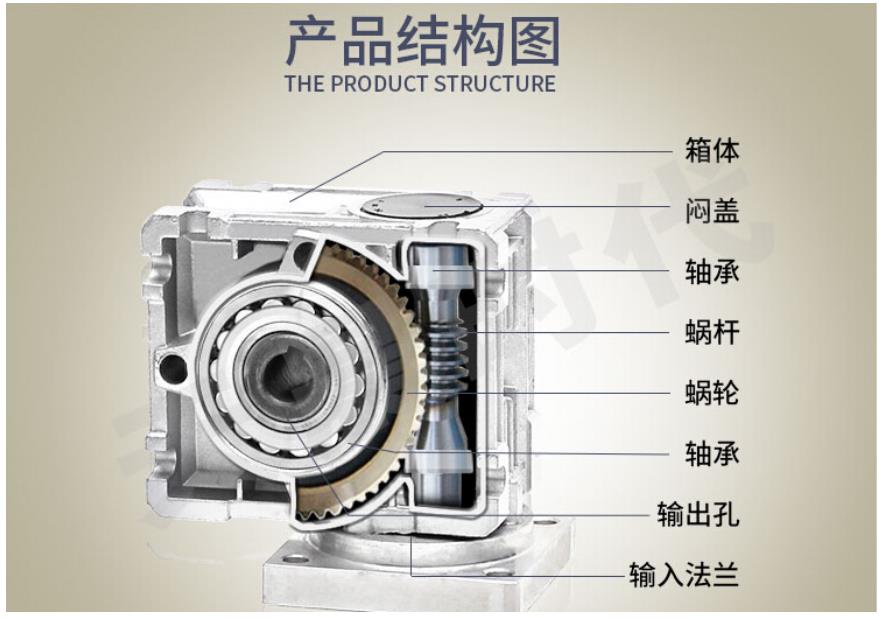

Deails of worm gearbox:

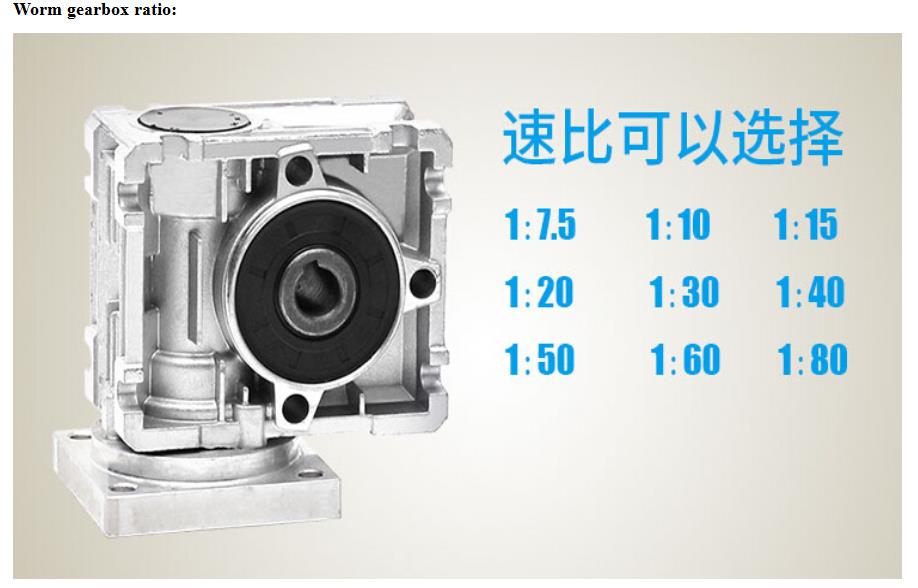

Worm gearbox ratio:

There are 7.5:1 10:1 15:1 20:1 30:1 40:1 50:1 60:1 80:1

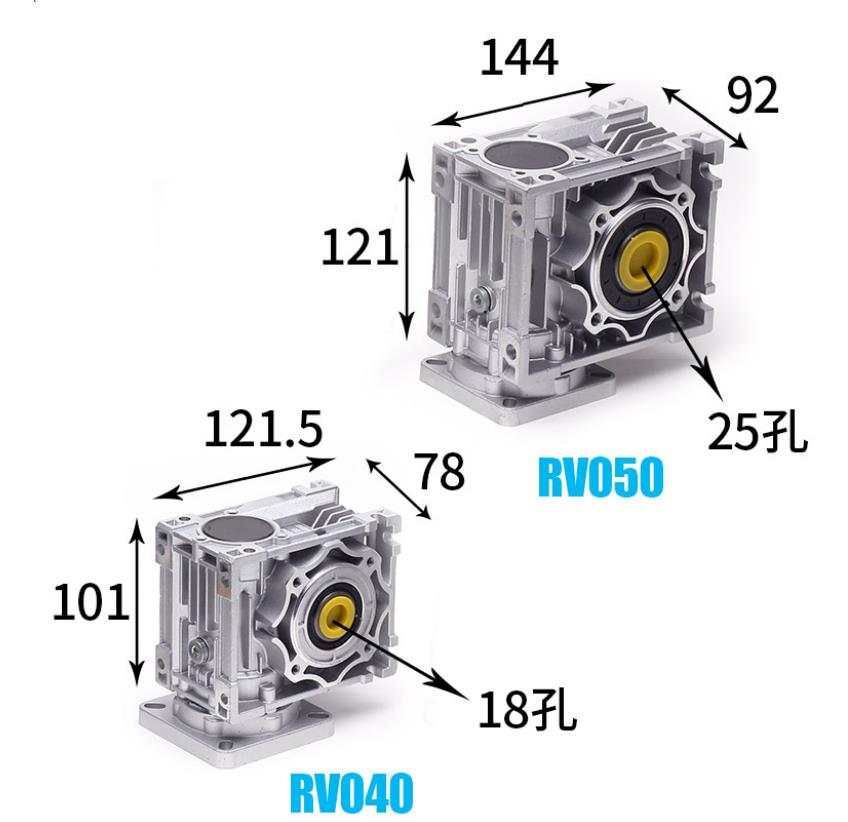

The size of RV40 and RV50:
