Stainless Steel Twill Weave Filter Cloth, 180Mesh With 0.0019" & 0.0023" Wire

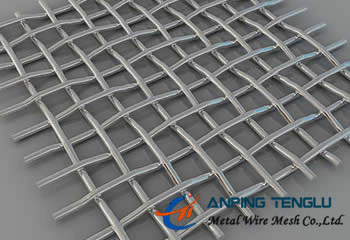

Stainless Steel Twill Weave Wire Cloth

Twill Weave Wire Mesh:

Each weft wire passes alternately over two, and then under two successive warp wires and each warp wire passes alternately over two and under two successive weft wires. It is possible to be used to allow a heavier than standard wire diameter.

180 wires per inch. Material can easily bend by hand and cut with scissors and laser. Commonly used for laboratories, screen printing, and filters. This market grade mesh is woven from a standard wire diameter which is heavier than the wire used to weave bolting cloth.

Materials: SS304, SS304L, SS316, SS316L

304 stainless steel: Most common stainless alloy used in wire weaving. Excellent corrosion properties and can withstand temperatures of 1100 Degrees F.

304L stainless steel: Similar properties as 304ss but lower carbon content to permit better welding.

316 stainless steel: Similar properties to 304ss but is stabilized by the addition of Molybdenum for increased resistance to chemical corrosion.

316L stainless steel: Similar properties as 316ss but lower carbon content to permit better welding.

Weaving Type: Twill weave

Characteristics:

Superior corrosion and abrasion resistance;
Can resist to rust and bad weather;
High filter precision;
Durable and high strength;
Beautiful appearance, etc.

Applications:

Fiber Spinning Mesh;

Pharmaceutical Powder Preparation;

Flour Machine Screening;

Oil Filter;

Cement and Lime Selection;

Laboratories and Filters;

Process Screening and Sieving;

Hydraulic Filters;

Internal Combustion Engine Air Filter;

Mulled Wine Filter;

Decorative/Cosmetic Mesh, etc.

Specifications:

Packing: Other specifications according to your requirements.
