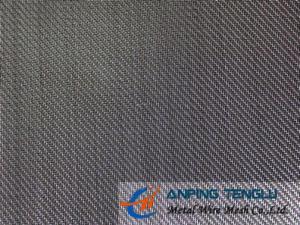

230Mesh Twill Weave Wire Cloth, 0.036mm Wire, 0.074mm Aperture, SS304 316

Stainless Steel Twill Weave Wire Cloth

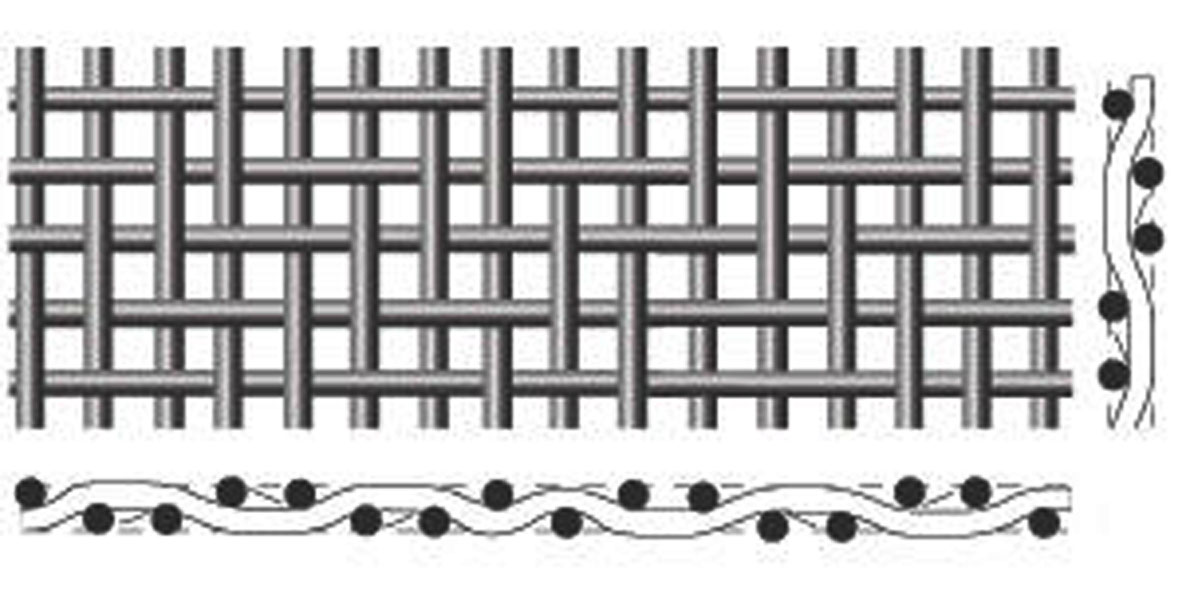

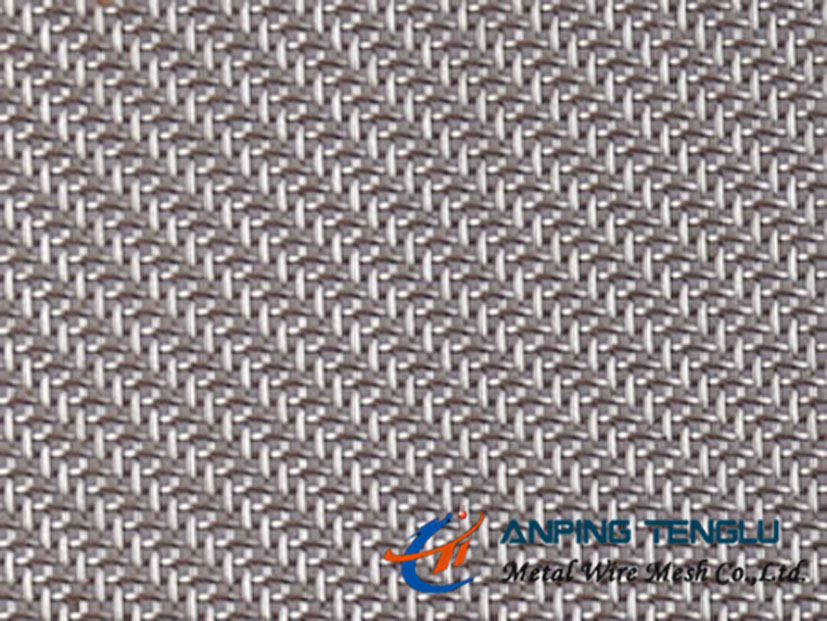

Twill Weave Wire Mesh: In the Twilled Woven Wire Mesh, the wires of the weft and the warp intercross two above and two below, inverting the intersections of the warp wire at an established distance, obtaining a rigid, stable and robust type of wire mesh fabric. The pattern is staggered on successive warp wires, giving the appearance of parallel diagonal lines.

230 mesh twill weve stainless steel wire mesh including 230 wires and openings of 1 inch. Using 0.036mm diameter wire, by twill weaving, woven 230 mesh opening for 0.074mm liquid or gas filter. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better. Material can easily bend by hand and cut with scissors and laser. Commonly used for laboratories, screen printing, and filters. This market grade mesh is woven from a standard wire diameter which is heavier than the wire used to weave bolting cloth.

Materials: SS304, SS304L, SS316, SS316L

304 stainless steel: Most common stainless alloy used in wire weaving. Excellent corrosion properties and can withstand temperatures of 1100 Degrees F.

304L stainless steel: Similar properties as 304ss but lower carbon content to permit better welding.

316 stainless steel: Similar properties to 304ss but is stabilized by the addition of Molybdenum for increased resistance to chemical corrosion.

316L stainless steel: Similar properties as 316ss but lower carbon content to permit better welding.

Weaving Type: Twill weave

Features of Twill SS Weave Wire Mesh:

Superior corrosion and abrasion resistance;
Can resist to rust and bad weather;
High filter precision;
Durable and high strength;
Beautiful appearance.

Applications:

Crossed twilled wire mesh are basic components in the production of filters, colanders for aliments, chemicals products, shielding, mosquito nets, etc.

This weave allows the use of proportionately heavier wires in a particular mesh count(number of openings per lineal inch) than is possible in plain weave.

This cloth has a wide application capable of supporting greater loads and finer filtrations.

Specifications:

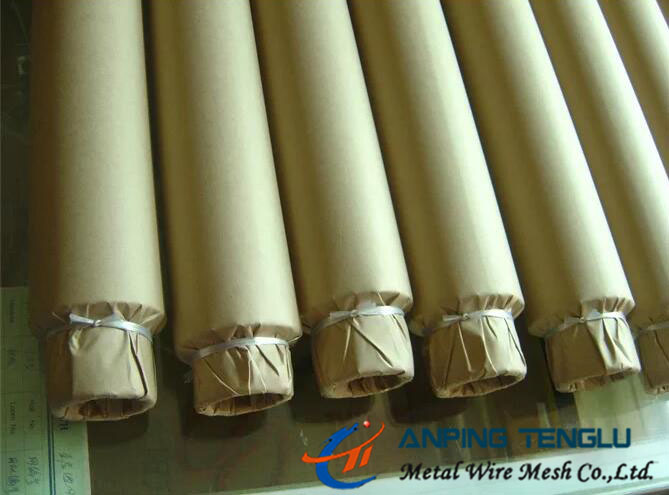

Packing: Other specifications according to your requirements.

Anping Tenglu metal Wire Mesh Co.LTD. is located in Anping County, Hebei Province, the famous Chinese industry base and the township of wire mesh. Its west is Beijing-Guangzhou Railway and Beijing- Shenzhen Expressway, the east is the Beijing-Kowloon Railway and the Beijing-Shanghai Expressway, and the south is Shihuang Expressway. Inside the city, there is a large logistics center of railway and highway, so the transportation is so developed.

We are a professional wire mesh company, which mainly produce stainless steel woven mesh, square wire mesh, dutch wire mesh, stainless steel ultra-thin mesh, reverse dutch woven cloth, five-heddle dutch woven cloth, sintered wire mesh, crimped wire mesh, stainless steel printing screen, stainless steel security screen, knitted wire mesh, stainless steel wire, nickel wire mesh, brass wire mesh, black wire cloth, epoxy wire mesh, stainless steel welded mesh, shale shaker screen ,steel frame screen, wedge wire screen, water well screen, wave type screen,balanced belt, spiral conveyor belt, ladder belt, double spiral belt, sani grid belt, wire ring belt, flat wire belt,compound balanced belt, filter elements, filter disc and filter tube. We win customers at home and abroad with excellent and high-quality products and service.
