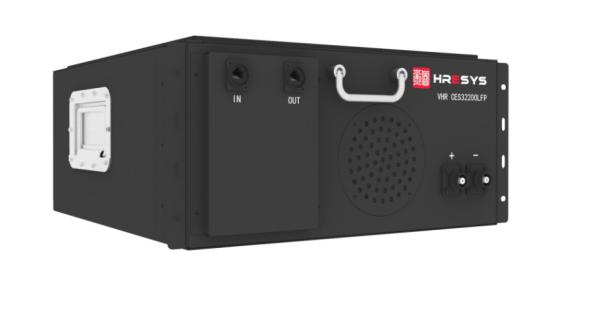

200Ah Energy Storage Lithium Battery Over Discharging Protection

Categories	Energy Storage Lithium Battery
Brand Name:	HRESYS
Model Number:	VHR CES32200LFP
Certification:	CE/UL
Place of Origin:	China
Nominal Capacity:	200Ah
Nominal Voltage:	32.0V
Charge Voltage:	36.0V
Voltage at End of Discharge:	26.7V
Maximum Continuous Charge Current (CC Threshold):	100A
Maximum Continuous Discharge Current:	200A
Charge Voltage-cell:	3.80V/cell
Weight:	65.5(±2)kg
MOQ:	10 Pcs
Price:	Negotiable
Packaging Details:	Box/carton(standard package)
Delivery Time:	30 DAYS
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1800000 PCS/YEAR

Contact Now

Add to Cart

Company Info.

Zhejiang Hengrui Technology Co., Ltd.

View Contact Details

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

1.32V 200Ah LITHIUM ION(LFP) BATTERY Module W: 482.0 mm X D: 465.0 mm X H: 220.0mm

High energy density: the battery delivers double to triple energy compared with lead acid battery of the same volume and mass.
Long cycle life: cycle life is five times that of lead acid battery
Adaptability to a wide range of temperature: the battery can work at temperature between -20℃ and +65℃.
High C-rate: support high charge/discharge rate to meet the requirement for high-current discharge in a short time and quick charging.
Environmentally friendly and free from heavy metal.

Item	Specification	Remarks
Nominal Capacity	150Ah	Standard discharge (1) capacity after standard charge (2)
Nominal Voltage	32.0V	Configuration: 10S1P - VHR 45173184LFP-150Ah. Voltage of single cell is 3.2V.
Charge Voltage	36.0V	@ 25 ± 3℃
Voltage at End of Discharge	26.7V	@ 25 ± 3℃
Maximum Continuous Charge Current (CC Threshold)	75A	@ 25 ± 3℃
Charge Voltage-cell	3.80V/cell	N.A.
Maximum Continuous	150A	@ 25 ± 3℃
Discharge Current	150A	@ 25 ± 3℃
Voltage at End of Discharge-cell	2.50V/cell	N.A.
Operation Allowable	Charge: 0～60°C	N.A.
Temperature Range	Discharge: -20～60°C	N.A.
Continuous Discharge Power	2.4KW	50%SOC
Continuous Charge Power	0.96KW	N.A
Self-discharge Rate/Month	≤4%	@ 25 ± 3℃,50%SOC

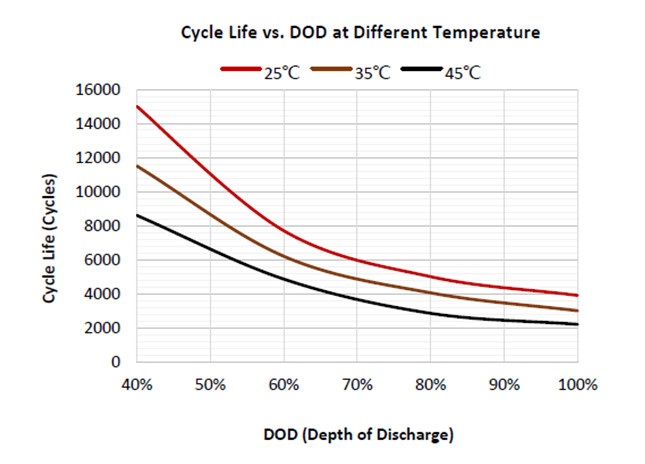

Cycle Life(cycles)	≥5000	@ 25 ± 3℃,0.2C/0.5C @80%DOD
Operation Allowable	≤95% RH	Operation
Humidity Range	≤85% RH	Storage
Recommended	0～40°C	Max. 6 month
Storage temperature	0～40°C	Max. 6 month
Weight	45.2(±2)kg	N.A.

1. Do not use different charger to charge the battery.

2. Do not charge with constant current higher than maximum charge current allowed.

3. Do not disassemble or reconstruct the battery.

4. Do not throw or cause impact.

5. Do not pierce a hole in the battery with sharp objects, such as nail, knife, pencil, drill, etc.

6. Do not mixing with other batteries.

7. Do not solder on battery directly.

8. Do not use old and new battery together in connection.

9. Do not expose the battery to high heat, such as fire, etc.

10. Do not put the battery into a microwave or high-pressure container.

11. Do not use the battery in reverse.

12. Do not connect positive (+) and negative (-) with conductive materials, such as metal, cables, etc.

13. Do not immerge or wet battery with water or sea water.

14. Do not bend the battery without prior permission from manufacturer
