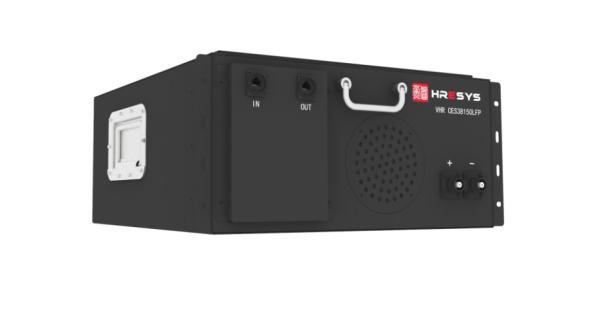

Eco Friendly Energy Storage Lithium Battery High Energy Density No Memory Effect

Categories	Energy Storage Lithium Battery
Brand Name:	HRESYS
Model Number:	VHR CES38150LFP
Certification:	CE/UL
Place of Origin:	China
Nominal Capacity:	150Ah
Nominal Voltage:	38.4V
Charge Voltage:	43.2V
Voltage at End of Discharge:	32.0V
Maximum Continuous Charge Current (CC Threshold):	75A
Maximum Continuous Discharge Current:	150Ah
Charge Voltage-cell:	3.80V/cell
Weight:	51.3(±2)kg
MOQ:	10 Pcs
Price:	Negotiable
Packaging Details:	Box/carton(standard package)
Delivery Time:	30 DAYS
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1800000 PCS/YEAR

Contact Now

Add to Cart

Company Info.

Zhejiang Hengrui Technology Co., Ltd.

View Contact Details

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

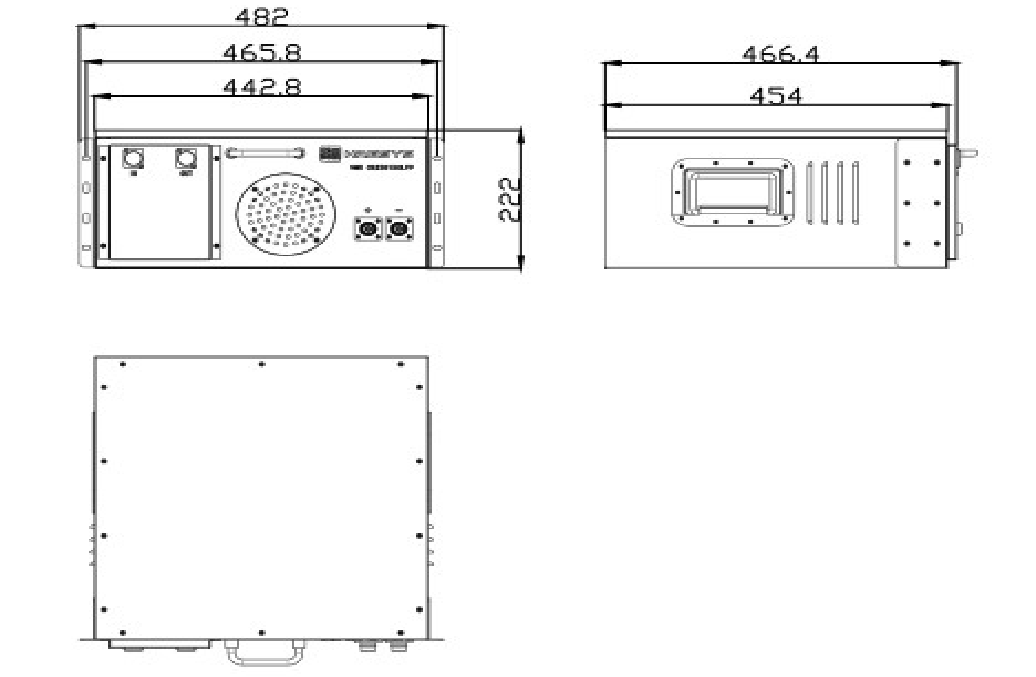

38V 150Ah LITHIUM ION(LFP) BATTERY Module W: 482.0 mm X D: 466.0 mm X H: 222.0mm

Item	Specification	Remarks
Nominal Capacity	150Ah	Standard discharge (1) capacity after standard charge (2)
Nominal Voltage	38.4V	Configuration: 12S1P - VHR 45173184LFP-150Ah. Voltage of single cell is 3.2V.
Charge Voltage	43.2V	@ 25 ± 3℃
Voltage at End of Discharge	32.0V	@ 25 ± 3℃
Maximum Continuous Charge Current (CC Threshold)	75A	@ 25 ± 3℃
Charge Voltage-cell	3.80V/cell	N.A.
Maximum Continuous	150A	@ 25 ± 3℃
Discharge Current	150A	@ 25 ± 3℃
Voltage at End of Discharge-cell	2.50V/cell	N.A.
Operation Allowable	Charge: 0～60°C	N.A.
Temperature Range	Discharge: -20～60°C	N.A.
Continuous Discharge Power	3.6KW	50%SOC
Continuous Charge Power	1.4KW	N.A
Self-discharge Rate/Month	≤4%	@ 25 ± 3℃,50%SOC
Cycle Life(cycles)	≥5000	@ 25 ± 3℃,0.2C/0.5C @80%DOD
Operation Allowable	≤95% RH	Operation
Humidity Range	≤85% RH	Storage
Recommended	0～40°C	Max. 6 month
Storage temperature	0～40°C	Max. 6 month
Weight	51.3(±2)kg	N.A.

1, High energy density.

2, For a single-layer battery, its operating voltage is high.

3, Environment friendly.

4, Long cycle life.

5, No memory effect.

6, The capacity, resistance, voltage, platform time can maintain good consistency

7, very safe and reliable because of the short-circuit production function.

8, Good consistency, low self-discharge.

9, Light weight, compact size
