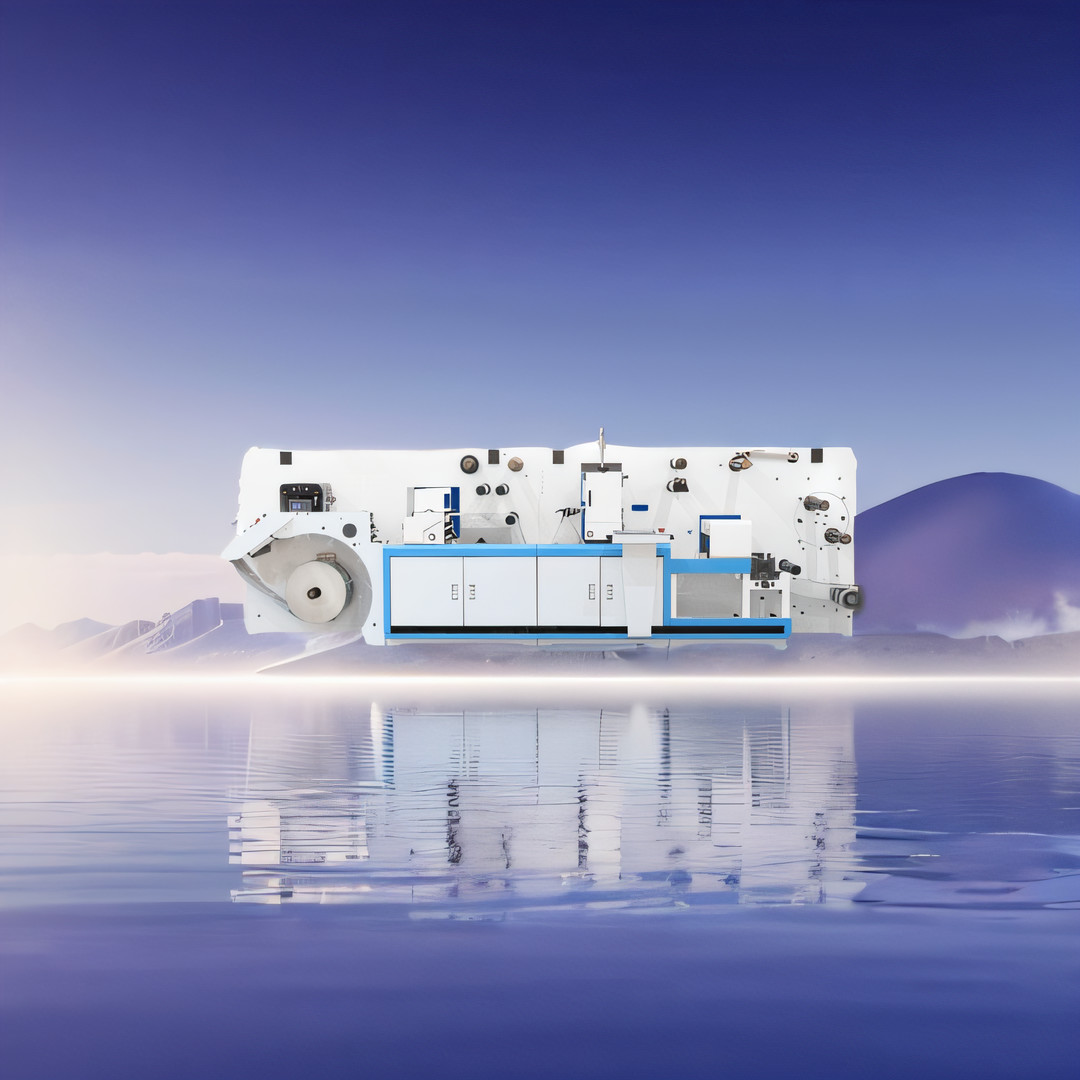

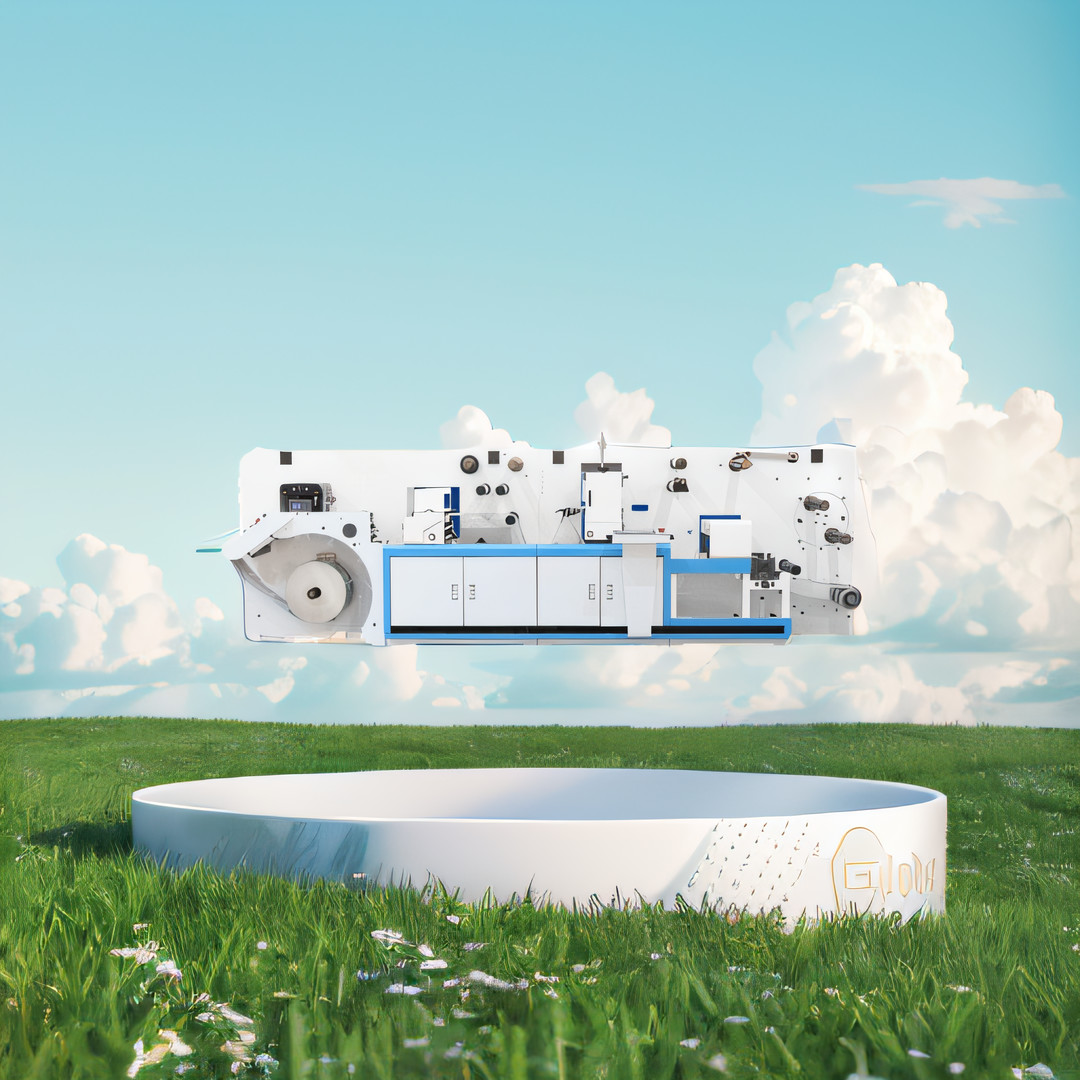

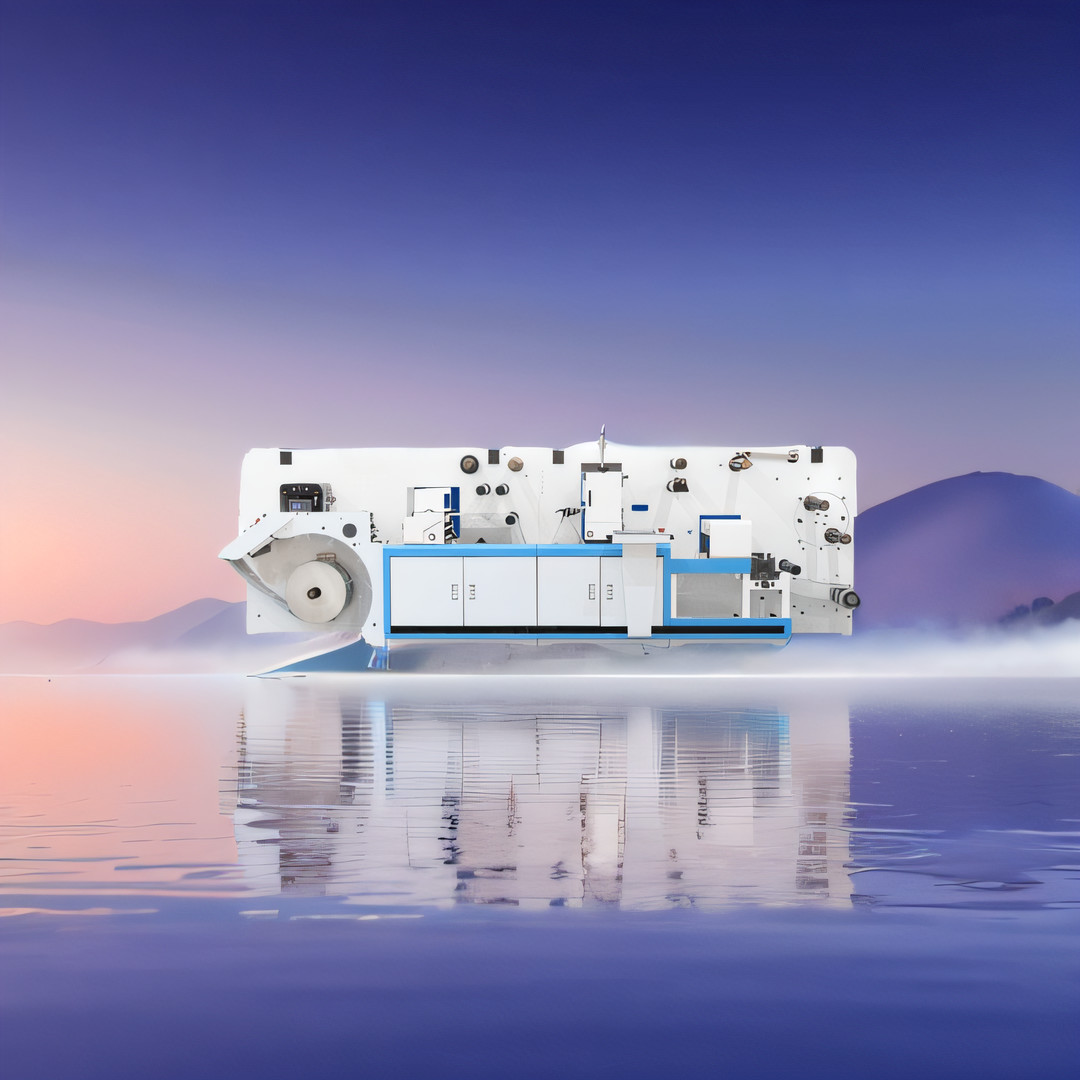

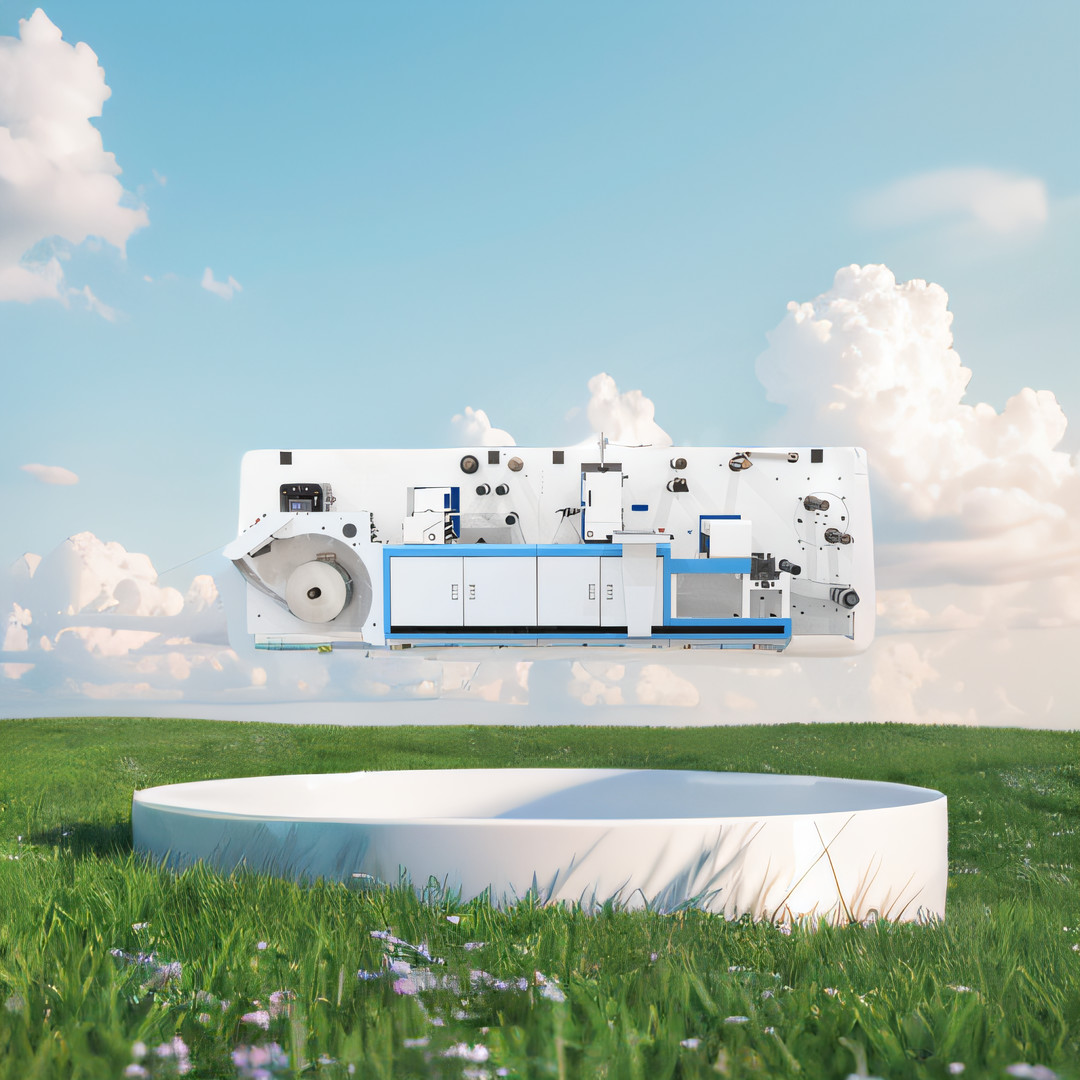

Multifunctional combined machine intermittent type or full-rotary type flexographic rotary die cutting and slitting ect

Multifunctional combined machine intermittent type or full-rotary type flexographic rotary die cutting and slitting ect

Performance characteristics:

This machine is the latest research and development by our company, with the function of full-rotary /intermittent flexographic unit, full-rotary/intermittent rotary die cutting and slitting station, it can be flexo printing, cold stamping, varnishing, laminating, die cutting, sheet cutting ect. It adopt advanced servo controlled system, user-friendly operation panel, more quality and higher efficiency; with two mode: full-rotary and intermittent die cutting; suit for industrial of digital printing label.

Technical Parameters

Intermittent flexographic type:

Technical parameters

Operating environment

1.Temperature: 0-50℃

2.Relative humidity: 5%-90%, no condensation in the air

3.Voltage: 380V/50HZ

Machine parameters

1. The maximum operating speed of the machine: full-rotary:120m/min, Intermittent:300times/min

2. Die cutting precision:+-0.15mm

3. Max unwinding diameter:800mm

4. Max rewinding diameter:800mm

5: Paper core inner size:1-6 inch(3 inch standard)

6. Maximum paper width: 350mm

7: Material thickness: 30um-300um

Intermittent flexographic specification:

1: Repeat printing length: 200-444.5mm

2: The printing cylinder Teeth: 63T-140T

3: Max printing width: 350mm

4: Printing precision: +-0.15mm

5: Plate thickness: 1.14mm

6: Double side tape: 0.38mm

7: Laminating max unwinding diameter: 300mm

8: Laminating max rewinding diameter: 300mm

9: UV power: 7.5KW

Intermittent/full rotary die cutting specification:

1: Standard Magnetic cylinder: 140T

2: Magnetic cylinder range: 80-210T

3: Max die cutting width: 350mm

4: die cutting precision: +-0.15mm

Sheet cutting specification:

1: Mini sheet cutting length: 80mm

2: Sheet cutting cylinder: rotary knife

3: Precision: +-0.2mm

Fully-rotary flexographic type:

Technical parameters

Operating environment

1.Temperature: 0-50℃

2.Relative humidity: 5%-90%, no condensation in the air

3.Voltage: 380V/50HZ

Machine parameters

1. The maximum operating speed of the machine: full-rotary:120m/min, Intermittent:300times/min

2. Die cutting precision:+-0.15mm

3. Max unwinding diameter:800mm

4. Max rewinding diameter:800mm

5: Paper core inner size:1-6 inch(3 inch standard)

6. Maximum paper width: 350mm

7: Material thickness: 30um-300um

Fully-rotary flexographic specification:

1: Repeat printing length: 200-444.5mm

2: The printing cylinder Teeth: 63T-140T (we will equipment with 80T as standard)

3: Max printing width: 350mm

4: Printing precision: +-0.15mm

5: Plate thickness: 1.14mm

6: Double side tape: 0.38mm

7: Laminating max unwinding diameter: 300mm

8: Laminating max rewinding diameter: 300mm

9: UV power:7.5KW

Intermittent/full rotary die cutting specification:

1: Standard Magnetic cylinder: 140T

2: Magnetic cylinder range: 80-210T

3: Max die cutting width: 350mm

4: die cutting precision: +-0.15mm

Sheet cutting specification:

1: Mini sheet cutting length: 80mm

2: Sheet cutting cylinder: rotary knife

3: Precision: +-0.2mm

Support and Services:

We provide technical support and services for Multifunctional combined machine intermittent type or full-rotary type flexographic rotary die cutting and slitting ect. Our team of experienced technicians and engineers are available to help you with any questions or issues you may have. We offer a wide range of services such as installation, maintenance, troubleshooting, and repairs. In addition, we offer training and consulting to ensure that your machinery is running at its best.

At our facility, we provide a full range of services for Multifunctional combined machine intermittent type or full-rotary type flexographic rotary die cutting and slitting ect. Our team of technicians and engineers are available to help you with any questions or issues you may have. From installation to maintenance, our team is fully equipped and ready to assist you.

Our goal is to provide the best technical support and services for Multifunctional combined machine intermittent type or full-rotary type flexographic rotary die cutting and slitting ect. Our team of experts is available to answer any questions or concerns you may have. We take pride in providing quality service, and we are committed to ensuring your satisfaction.

Packing and Shipping:

Multifunctional combined machine intermittent type or full-rotary type flexographic rotary die cutting and slitting ect is packaged carefully to ensure it arrives safely and in excellent condition. The machines are fully assembled, and then wrapped in film then packed with the fumigation wooden box.

Machines are shipped via air or sea freight, depending on the customer’s preference.

FAQ:

Q: What is the Minimum Order Quantity of Multifunctional combined machine intermittent type or full-rotary type flexographic rotary die cutting and slitting ect?

A: The Minimum Order Quantity is 1.
