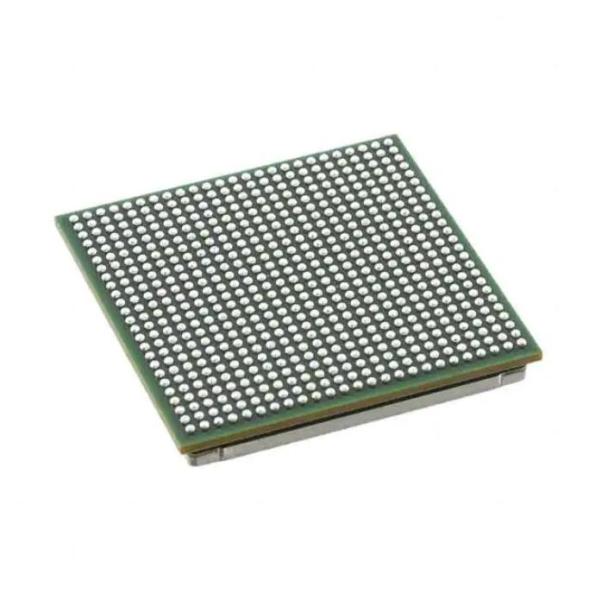

TMS320C6657CZH IC DSP FIX / FLOAT POINT 625FCBGA Surface Mount

TMS320C6657CZH IC DSP FIX / FLOAT POINT 625FCBGA Surface Mount

TMS320C6657CZH IC DSP FIX / FLOAT POINT 625FCBGA Surface Mount
TMS320C6657CZH IC DSP FIX / FLOAT POINT 625FCBGA Surface Mount
Categories EMMC Memory Chip
Brand Name: original
Model Number: TMS320C6657CZH
Certification: original
Place of Origin: original
MOQ: 1
Price: negotiation
Payment Terms: T/T, L/C
Supply Ability: 100,000
Delivery Time: 1-3working days
Packaging Details: carton box
Clock Rate: 1GHz
Non-Volatile Memory: ROM (128kB)
On-Chip RAM: 2.06MB
Voltage - I/O: 1.0V, 1.5V, 1.8V
Voltage - Core: 1.00V
Operating Temperature: 0°C ~ 85°C (TC)
Mounting Type: Surface Mount
Package / Case: 625-BFBGA, FCBGA
Contact Now
Company Info.
SZ ADE Electronics Co., Ltd
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

TMS320C6657CZH IC DSP FIX / FLOAT POINT 625FCBGA Surface Mount

TMS320C6657CZH Emmc Memory Chip Ic Dsp Fix/Float Point 625fcbga
IC DSP FIX/FLOAT POINT 625FCBGA

Specifications of TMS320C6657CZH


TYPEDESCRIPTION
CategoryIntegrated Circuits (ICs)
Embedded
DSP (Digital Signal Processors)
MfrTexas Instruments
SeriesTMS320C66x
PackageTray
Product StatusActive
TypeFixed/Floating Point
InterfaceDDR3, EBI/EMI, Ethernet, McBSP, PCIe, I²C, SPI, UART, UPP
Clock Rate1GHz
Non-Volatile MemoryROM (128kB)
On-Chip RAM2.06MB
Voltage - I/O1.0V, 1.5V, 1.8V
Voltage - Core1.00V
Operating Temperature0°C ~ 85°C (TC)
Mounting TypeSurface Mount
Package / Case625-BFBGA, FCBGA
Supplier Device Package625-FCBGA (21x21)
Base Product NumberTMS320

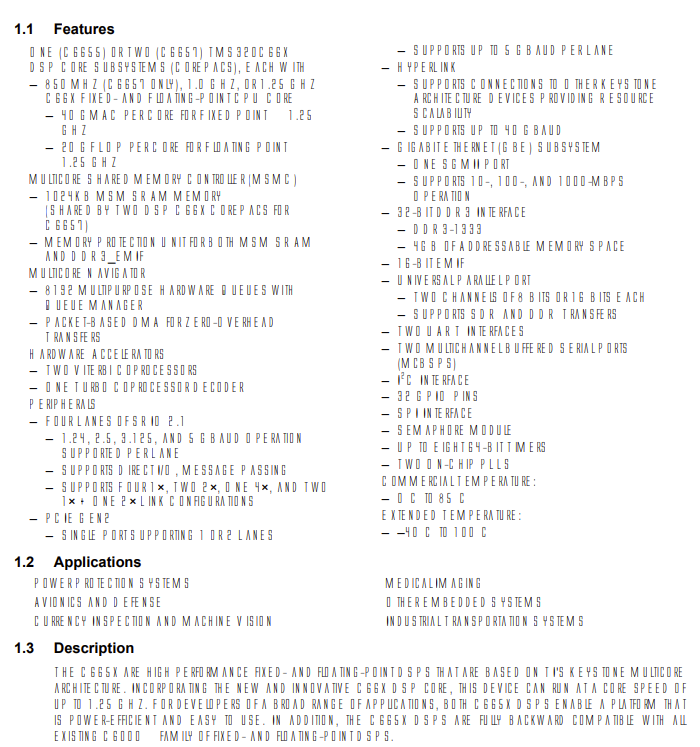

Features of TMS320C6657CZH


• One (C6655) or Two (C6657) TMS320C66x™ DSP Core Subsystems (CorePacs), Each With
– 850 MHz (C6657 only), 1.0 GHz, or 1.25 GHz C66x Fixed- and Floating-Point CPU Core
– 40 GMAC per Core for Fixed Point 1.25 GHz
– 20 GFLOP per Core for Floating Point 1.25 GHz
• Multicore Shared Memory Controller (MSMC)
– 1024KB MSM SRAM Memory (Shared by Two DSP C66x CorePacs for C6657)
– Memory Protection Unit for Both MSM SRAM and DDR3_EMIF
• Multicore Navigator
– 8192 Multipurpose Hardware Queues with Queue Manager
– Packet-Based DMA for Zero-Overhead Transfers
• Hardware Accelerators
– Two Viterbi Coprocessors
– One Turbo Coprocessor Decoder
• Peripherals
– Four Lanes of SRIO 2.1
– 1.24, 2.5, 3.125, and 5 GBaud Operation Supported Per Lane
– Supports Direct I/O, Message Passing
– Supports Four 1×, Two 2×, One 4×, and Two 1× + One 2× Link Configurations
– PCIe Gen2
– Single Port Supporting 1 or 2 Lanes

Applications of TMS320C6657CZH


• Power Protection Systems
• Avionics and Defense
• Currency Inspection and Machine Vision
• Medical Imaging
• Other Embedded Systems
• Industrial Transportation Systems

Environmental & Export Classifications of TMS320C6657CZH


ATTRIBUTEDESCRIPTION
RoHS StatusROHS3 Compliant
Moisture Sensitivity Level (MSL)3 (168 Hours)
REACH StatusREACH Unaffected
ECCN5A991B1
HTSUS8542.31.0001
