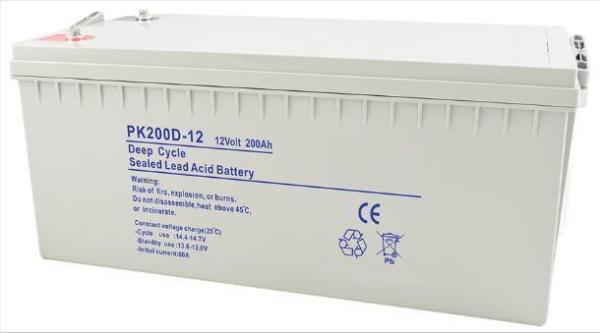

Name: Deep Cycle Lead Acid Sealed Battery 12v 200ah 6 Cells In Series
Brand: Mitscn
Price: 1 USD

Home > Batteries >

Deep Cycle Lead Acid Sealed Battery 12v - 200ah 6 Cells In Series

Categories	Lead Acid Battery
Brand Name:	Mitscn
Certification:	ISO
Place of Origin:	China
MOQ:	Negotiatble
Payment Terms:	T/T, D/P, D/A, MoneyGram, Western Union, L/C
Delivery Time:	30days
Packaging Details:	carton,pallet
Internal Resistance:	3.5mΩ @25℃ (Full Charged Battery)
Nominal Voltage:	12V (6 cells in series)
Rated Capacity:	200Ah (C10,1.80V/cell)
Approx. Weight:	60 kg
DOD 80%:	≥450 Cycles @25℃
Container Material:	A.B.S, UL94-HB, UL94-V0, Optional

Contact Now

Add to Cart

Company Info.

Beijing MITSCN Co., Ltd.

View Contact Details

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Charging Procedure:

Float service:

Every month, recommend inspection every battery voltage.

Every three months, recommend equalization charge for one time. Equalization charge method: Step 1:Discharge: 100% rate capacity discharge.

Step 2:Charge: Max. Current 0.3CA, constant voltage 2.40-2.45V/Cell charge 24h.

Cycle service:

Avoid battery over discharge, especially battery sereis connection use.

Charged with recommend voltage, ensure battery can be full recharged.

Ingeneral, recharge capacity should be 1.1~1.15 times discharge capacity.

Length of service life will be directly affected by the number of discharge cycles, depth of discharge, Ambient temperature and charging voltage.

Charge the batteries at least once every six months, if they are stored at 25℃.Charging Method:

Constant Voltage : -0.2C×2h+2.40~2.45V/cell×24h , Max. Current 0.25CA

Constant Current : -0.2C×2h+0.1C×12h

Fast : -0.2C×2h+0.3C×4h

Terminal of torque:
