ISUZU Light Duty Concrete Mixer Truck 4CBM Capacity With Standard Cab

Categories ISUZU Concrete Mixer Truck
Brand Name: ISUZU
Model Number: CL5111GSJB1
Place of Origin: China
Certification: CGC,ISO9001:2015,TUV SUD,PV,CNAS,
MOQ: 1 UNIT
Price: USD 34000- USD 39200/ UNIT
Delivery Time: 45-60 work days
Cab: Standard
Type: Concrete mixer Truck
Body: Steel
Engine: ISUZU 4HK1
GVW: 11000kg
Model: ISUZU Mixer Truck
Payload Capacity: 5,500 kg
Power: 190 HP
Transmission: 6-speed manual
Wheelbase: 3815 mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

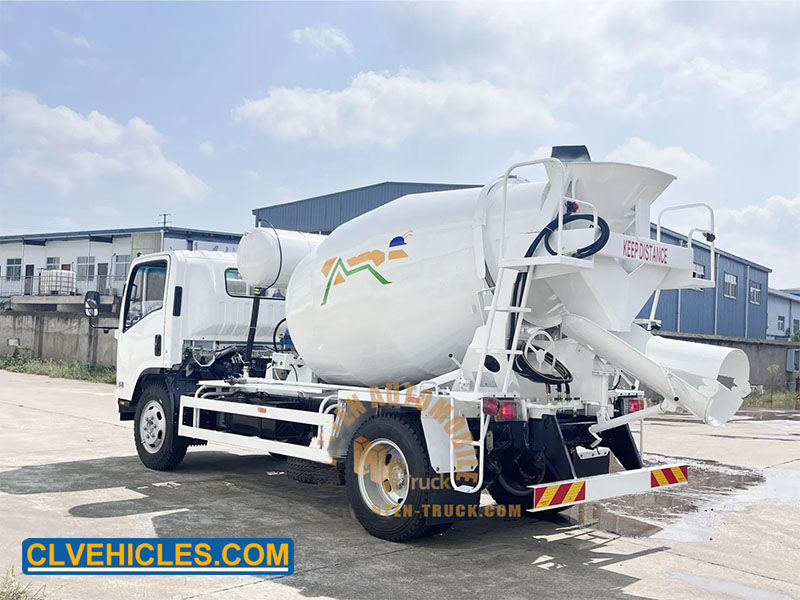

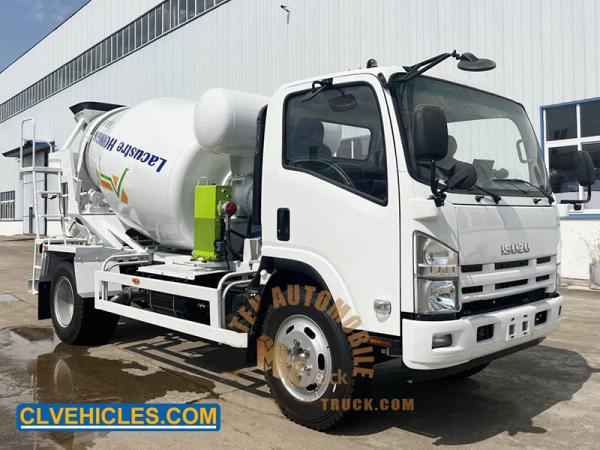

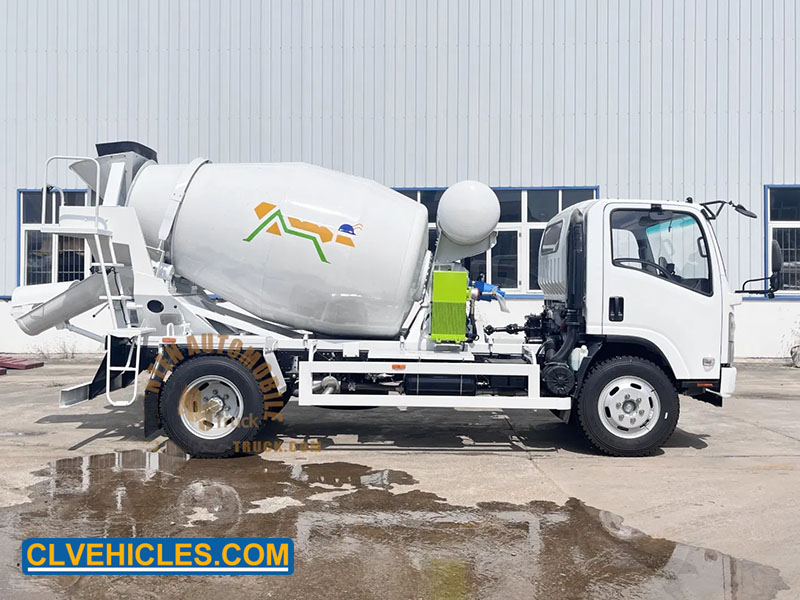

ISUZU Light Duty Concrete Mixer Truck 4CBM Capacity With Standard Cab

ISUZU Light Duty Concrete Mixer Truck 4CBM Capacity With Standard Cab

Overview:

Agitator truck is made to transport and mix concrete up to the construction site.The concrete mixing transport truck maintains the material's liquid state through agitation, or turning of the drum, until delivery.

For the construction place which has limited height and width requirements for the vehicle, small concrete mixer trucks (2m³ to 6 m³) that are perfect for the demands.

Features:

1.Nice shape and rational structure

2.High-intensity drum material

3.Famous brand hydraulic system

4.Customized product according to the height and width limit

5.It is with ISUZU chassis ,perfect performance!




B520JJ Alloy Steel,mixing tank life 50000-80000CBM, mixing blade life 30000-40000CBM, 3D mixing technology


Reducer Italian Bonfiglioli, PMP, Gemany ZF / Hydraulic pump and motor , American Fation and Saurer




Supporting roller imported form Japan
Cover for preventing corroded by falling concrete

Output hopper can be rotated 270 degrees and fixed in any slot



Technical Parameters:

Truck Specification
Chassis modelCL5121GSJB1
CabISUZU 700P ELF
Driving Type4*2 Left hand driving
Max Speed (km/h)80
Overall dimension(mm)7000×2500×3770(mm)
GVW( kg)12330
Mass in working order( kg)8000
Wheelbase(mm)3800
F/R track base(mm)1810/1800
F/R overhang(mm)1250/2250
Approach/Departure Angel32/30(°)
Tire8.25
ClutchSingle-plate dry diaphragm spring clutch
SteeringHydraulic steering with power assistance
Gear box6-speed
BridgeFrontaxle4T
Rear axle7T
EngingModelISUZU 4HK1
Fuel TypeDiesel fuel
TypeWater-cooled four-stroke,, direct injection, turbocharged
Exhaust(ml)5900
Max output power (hp)190
Braking systemService BrakeCompressed air brake
Park BrakeSpring energy
Auxiliary brakeengine exhaust brake
Eletric system24v
Upper-Body specification
Drum mixing volume (m3)4
Input rate (m3/min)≥2.8Output rate (m3/min)≥1.2
Filling rate65%Residual rate<0.5%
ReducerDescription
Reducer brandKe Yi (KY83-5-C)
Gear ratio1:43Torque (N . m)25000
Max input speed(r/min)1000· Output flange Angle(°)-3 - 3
Hydraulic PumpDescription
Hydraulic pump brandAmerica brand, SUNNY,HP2VC56HW
Max Flow rate (L/min)202Rated pressure (MPa)40
Max output power/Rated pressure (kw)134Max torque/Rated pressure (N.m)356
Hydraulic MotorDescription
Hydraulic motor brandAmerica brand, SUNNY
Max Flow rate (L/min)280Rated pressure (MPa)40
Weight(kg)18Max torque/Rated pressure (N.m)356
Water Supply System Description
Water supply typeAir pressureWorking pressure (MPa)0.25-0.3
Water tank volume (L)400

Applications:

Cement mixer truck can be used to transport,and during transport, it will remain mixing drum rotation to ensure the delivery of concrete not being solidified.


Support and Services:

We provide technical support and service for our Dump Truck product. Our team of experts are available 24/7 to answer any questions and provide assistance with any issues you may have. We also provide regular maintenance and repair services to ensure optimal performance. We are committed to helping you get the most out of your purchase and are here to help you every step of the way.

1. Warranty
The customers can enjoy a maximum warranty period of 12 months or 10000 kilometers, whichever comes first, from shipment date on Bill of Lading.

2. Technical Support
For our supplied products, you can forever enjoy technical support whatever by phone call or email. We will respond aggressively to provide a prompt solution.

3. Onsite Training
On-site training could be executed if this term is included in the contracts agreed.

4. Onsite Service
We can assign our engineers to go to destination for on-site service if this term is included in the contracts agreed. Even service workshop could be built if the order comes to certain quantity.

Packing and Shipping:

Packaging and Shipping of Dump Truck:

For far away countries, We always use sea transport. According to vehicle dimension, we may use container vessel, or bulk vessel (the vehicle is lifted onto vessel by cranes), or RORO vessel (Roll on roll off vessel, the vehicle is driven on at loading port and driven off at discharge port, it is best way for a vehicle with engine. Semi-trailer without engine, can be loaded with a tractor from the port.) Usually it takes about 6 weeks to West Africa or South America. Shorter time to nearer countries.
