6x4 Type 25 Tons ISUZU Concrete Mixer Agitator Truck 10CBM

Categories ISUZU Concrete Mixer Truck
Brand Name: ISUZU
Model Number: CL5251XSZX3
Place of Origin: China
Certification: CGC,ISO9001:2015,TUV SUD,PV,CNAS,
MOQ: 1 UNIT
Price: USD 65700- USD 69200/ UNIT
Delivery Time: 45-60 work days
Color: White
Axles: 3
Transmission: 9-speed manual
Brakes: Air brakes
Brand: Isuzu
Capacity: 20-25 tons
Dimensions: 9,000 x 2,500 x 2,500 mm
Drivetrain: 6x4
Engine: Isuzu 6HK1-TCS
Horsepower: 300-350 hp
Tires: 11R22.5
Type: Dump Truck
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

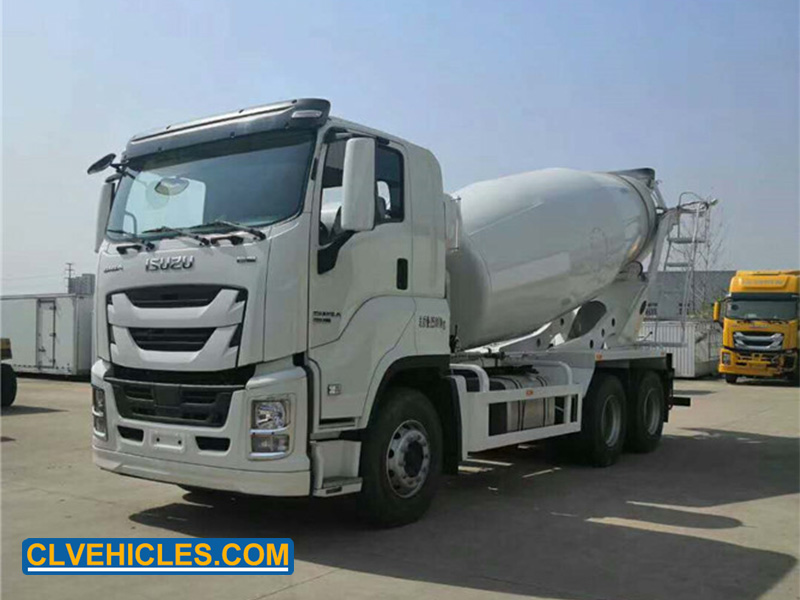

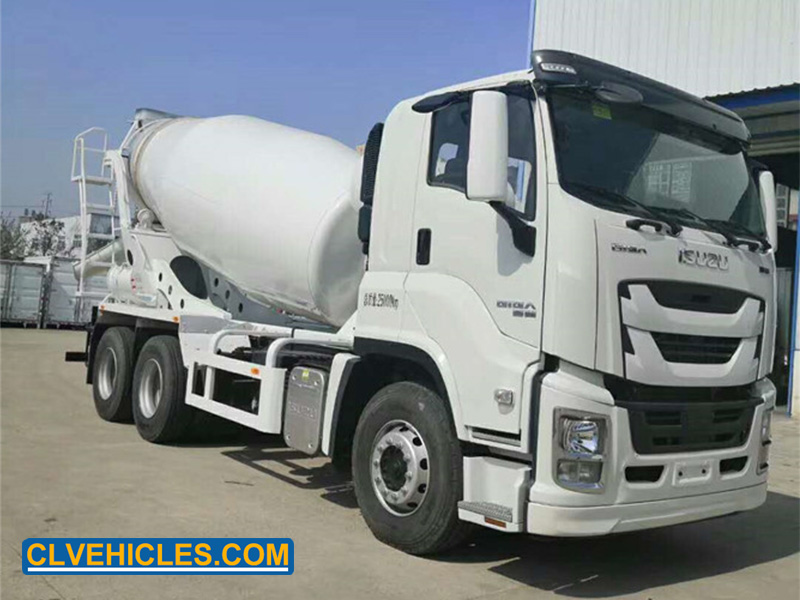

6x4 Type 25 Tons ISUZU Concrete Mixer Agitator Truck 10CBM

6x4 Type 25 Tons ISUZU Concrete Mixer agitator Truck 10CBM

Overview:

ISUZU mixer truck is a special truck used to transport concrete for construction; because of its shape, it is also often called a snail truck or olive truck. This type of truck is equipped with a cylindrical mixing drum to carry the mixed concrete.
During transportation, the mixing drum will always be kept rotating to ensure that the carried concrete will not solidify. After the concrete is transported, the interior of the mixing drum is usually washed with water to prevent the residual concrete from hardening and occupying space, so that the volume of the mixing drum becomes less and less.

Features:

1.Nice shape and rational structure

2.High-intensity drum material

3.Famous brand hydraulic system

4.Customized product according to the height and width limit

5.It is with ISUZU chassis ,perfect performance!


B520JJ Alloy Steel,mixing tank life 50000-80000CBM, mixing blade life 30000-40000CBM, 3D mixing technology


Reducer Italian Bonfiglioli, PMP, Gemany ZF / Hydraulic pump and motor , American Fation and Saurer


Supporting roller imported form Japan
Cover for preventing corroded by falling concrete

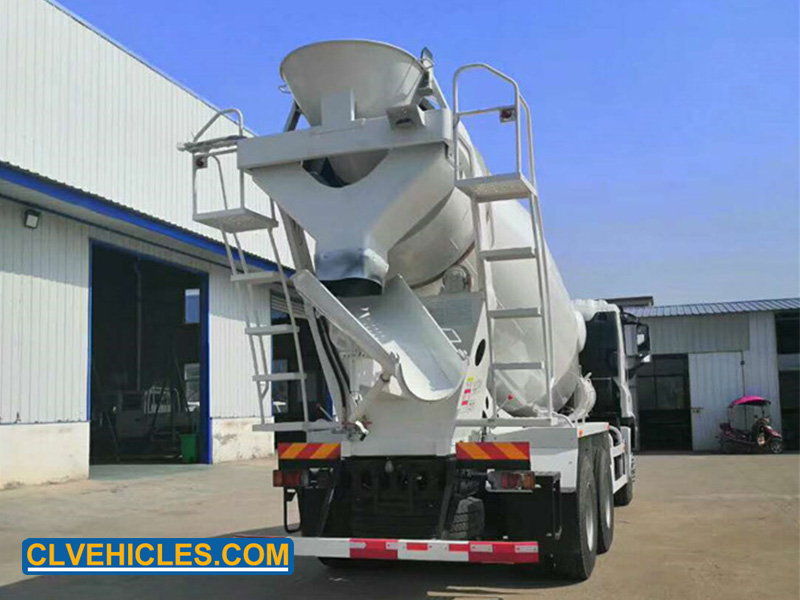

Output hopper can be rotated 270 degrees and fixed in any slot



Technical Parameters:


Truck Specification
Chassis modelCL5251GSJB2
CabISUZU GIGA Sleeper cab
Driving Type6*4 Left hand driving
Max Speed (km/h)80
Overall dimension(mm)9135×2500×3774(mm)
GVW( kg)25000
Mass in working order( kg)14000
Wheelbase(mm)3985+1375
F/R track base(mm)2030/1860
F/R overhang(mm)1525/2460
Approach/Departure Angel20/19(°)
Tire12.00R20
ClutchSingle-plate dry diaphragm spring clutch
SteeringHydraulic steering with power assistance
Gear box10JSD140
BridgeFrontaxle9T
Rear axle16T
EngingModelISUZU 6UZ1
Fuel TypeDiesel fuel
TypeWater-cooled four-stroke,, direct injection, turbocharged
Exhaust(ml)9726
Max output power(hp)380
Braking systemService BrakeCompressed air brake
Park BrakeSpring energy
Auxiliary brakeengine exhaust brake
Eletric system24v
Upper-Body specification
Drum mixing volume (m3)8
Input rate (m3/min)≥2.8Output rate (m3/min)≥1.2
Filling rate65%Residual rate<0.5%
ReducerDescription
Reducer brandItaly brand, BONFIGLIOLI 588L
Gear ratio1:131Torque (N . m)60000
Max input speed(r/min)20· Output flange Angle(°)-3 - 3
Hydraulic PumpDescription
Hydraulic pump brandAmerica brand, SAUER(R-075)
Max Flow rate (L/min)270Rated pressure (MPa)420
Max output power/Rated pressure (kw)134Max torque/Rated pressure (N.m)730
Hydraulic MotorDescription
Hydraulic motor brandAmerica brand, SAUER
Max Flow rate (L/min)280Rated pressure (MPa)40
Weight(kg)18Max torque/Rated pressure (N.m)730
Water Supply System Description
Water supply typeAir pressureWorking pressure (MPa)0.25-0.3
Water tank volume (L)450

Applications:

Cement mixer truck can be used to transport,and during transport, it will remain mixing drum rotation to ensure the delivery of concrete not being solidified.


Support and Services:

We provide technical support and service for our Dump Truck product. Our team of experts are available 24/7 to answer any questions and provide assistance with any issues you may have. We also provide regular maintenance and repair services to ensure optimal performance. We are committed to helping you get the most out of your purchase and are here to help you every step of the way.

1. Warranty
The customers can enjoy a maximum warranty period of 12 months or 10000 kilometers, whichever comes first, from shipment date on Bill of Lading.

2. Technical Support
For our supplied products, you can forever enjoy technical support whatever by phone call or email. We will respond aggressively to provide a prompt solution.

3. Onsite Training
On-site training could be executed if this term is included in the contracts agreed.

4. Onsite Service
We can assign our engineers to go to destination for on-site service if this term is included in the contracts agreed. Even service workshop could be built if the order comes to certain quantity.

Packing and Shipping:

Packaging and Shipping of Dump Truck:

For far away countries, We always use sea transport. According to vehicle dimension, we may use container vessel, or bulk vessel (the vehicle is lifted onto vessel by cranes), or RORO vessel (Roll on roll off vessel, the vehicle is driven on at loading port and driven off at discharge port, it is best way for a vehicle with engine. Semi-trailer without engine, can be loaded with a tractor from the port.) Usually it takes about 6 weeks to West Africa or South America. Shorter time to nearer countries.
