| Categories | Heat Resistant Adhesive Tape |
|---|---|
| Brand Name: | KangHongJin |
| Model Number: | R10 Series |
| Certification: | RoHS |
| Place of Origin: | Guangdong, China |
| Product Name: | PTFE belt |
| Material: | PTFE +PET |
| High Light: | PTFE, Non-stick PTFE Conveyor Belt, PTFE Seamless Belt, PTFE Belt, PTFE Conveyor Belt |

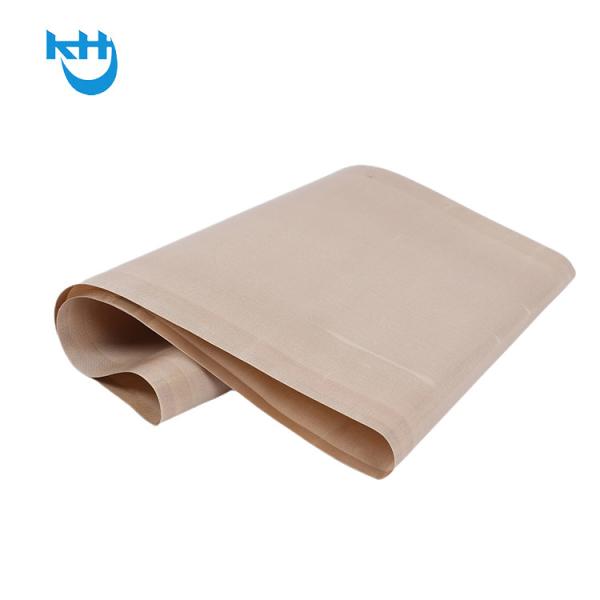

R10 Series Brown PTFE Belt High Temperature Resistance Ptfe Fiberglass Conveyor Belt Ptfe Seamless Belt
| DESCRIPTION |
R10 series Brown belt coated with PTFE resin by using a unique process technology. It overcomes |
the phenomenon that the connection of the conveyor belt interface is easy to break in the past, and |
| solves the problem of poor running stability and deviation because of unequal circumference of the |
| joint. |
| Part | Material | Thickness | Width | Color |
| R08 | PTFE film | 0.01-0.2mm | ≤1300mm | White, black, red, yellow, green, blue, etc |
| R09 | Fep film | 0.025-0.25mm | ≤1250mm(tape casting); ≤550mm(blow m olding) | Transparent |
| R10 | PTFE belt | 0.13-1mm | ≤2400mm | Brown, white, black, etc |
| R11 | PTFE mesh belt | 0.6mm | Custom | Brown, black |
R12 | PTFE cloth | 0.08-1mm | ≤2400mm | Brown, white, black, etc |
R13 | PTFE tape | 0.08,0.13,0.18, 0.25mm(film base); 0.13,0.16,0.18, 0.25,0.3,0.4mm (cloth base) | ≤500mm(film base) ; ≤1250mm(cloth base) | Gray(film base); brown, white, black, etc (cloth base) |
| ADVANTAGES |
1. Insulation: not affected by the environment and frequency; volume resistance up to 1018 Ω · cm; small dielectric loss; high breakdown voltage |
2. High and low temperature resistance: can be used at -60~360℃ |
3. With the smallest friction coefficient of plastics, it is an ideal oil-free lubricating material |
3. Non-stick PTFE film provides an exceptionally slick surface for easy clean-up |
4. Atmospheric aging resistance, radiation resistance and low permeability: long-term exposure to the atmosphere, the surface and performance stay the same |
| 5. Chemical resistance and weather resistance: polytetrafluoroethylene is almost impervious to any chemical attack except for molten alkali metals. |
INSTRUCTIONS
1. Drying machine for non-woven textile, textile printing, silk-printing and dyeing machine; |
2. Shrinking machine for garment fabric, high-frequency and UV dryer; |
3. Conveyor belt for hot-air dryer, various of food baking, quick-frozen machines; |
| 4. Oiling machine for paper glazing and waxing, plant engineering; |
| 5. Separating sheet for hardboard production etc. |
| 6. Other applications which requires chemical and high - temperature resistance. |
