| Categories | Heat Resistant Adhesive Tape |
|---|---|
| Brand Name: | KangHongJin |
| Model Number: | R11 Series |
| Certification: | RoHS |
| Place of Origin: | Guangdong, China |
| Product Name: | PTFE belt |
| Material: | PTFE +PET |
| High Light: | PTFE, Non-stick PTFE Conveyor Belt, PTFE Seamless Belt, PTFE Belt, PTFE Conveyor Belt |

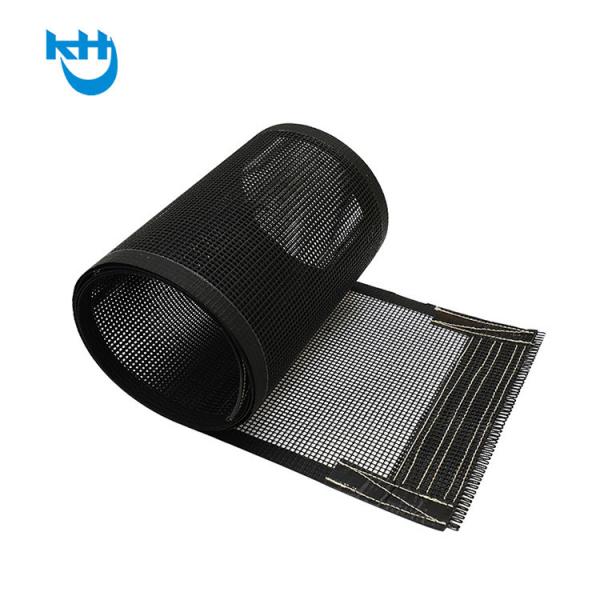

R11 Series Black PTFE Mesh Belt High Temperature Resistance Ptfe Fiberglass Conveyor Belt Ptfe Seamless Belt
| DESCRIPTION |
R11 series PTFE mesh belt is made of suspended polytetrafluoroethylene (commonly |
known as plastic king) emulsion as raw material, impregnated with high-performance glass fiber |
| cloth. Because of its excellent performance, it is widely used in aviation, papermaking, food, |
| environmental protection, printing and dyeing, clothing, chemical industry and other fields. |
| Color: Coffee, Black, White Mesh size: 1x1mm, 2x2.5mm, 4x4mm, 8x8mm, 10x10mm |
| Part | Material | Thickness | Width | Color |
| R08 | PTFE film | 0.01-0.2mm | ≤1300mm | White, black, red, yellow, green, blue, etc |
| R09 | Fep film | 0.025-0.25mm | ≤1250mm(tape casting); ≤550mm(blow m olding) | Transparent |
| R10 | PTFE belt | 0.13-1mm | ≤2400mm | Brown, white, black, etc |
| R11 | PTFE mesh belt | 0.6mm | Custom | Brown, black |
R12 | PTFE cloth | 0.08-1mm | ≤2400mm | Brown, white, black, etc |
R13 | PTFE tape | 0.08,0.13,0.18, 0.25mm(film base); 0.13,0.16,0.18, 0.25,0.3,0.4mm (cloth base) | ≤500mm(film base) ; ≤1250mm(cloth base) | Gray(film base); brown, white, black, etc (cloth base) |
| ADVANTAGES |
1. Suitable for use from -70℃ to 260℃; with weather resistance, anti-aging. |
2. Non-adhesion: not easy to adhere to any substance. Easy to clean all kinds of oil stains, or other |
attachments attached to its surface: paste, resin, paint and almost all sticky substances can be |
simply removed |
3. Chemical corrosion resistance, strong acid, alkali and various organic solvent corrosion |
| 4. Good dimensional stability (elongation coefficient is less than 5%), high strength. It has good |
| mechanical properties |
| 5. Bending fatigue resistance, can be used for smaller wheel diameter |
| 6. Drug resistance, no toxicity. Resistant to almost all pharmaceutical items |
| 7. Air permeability -- air permeability of conveyor belt, reduce heat source consumption, improve |
| drying efficiency |
INSTRUCTIONS
1. Drying machine for non-woven textile, textile printing, silk-printing and dyeing machine; |
2. Shrinking machine for garment fabric, high-frequency and UV dryer; |
3. Conveyor belt for hot-air dryer, various of food baking, quick-frozen machines; |
| 4. Oiling machine for paper glazing and waxing, plant engineering; |
| 5. Separating sheet for hardboard production etc. |
| 6. Other applications which requires chemical and high - temperature resistance. |
| ceo@szsmt. com |
| Part | Material | Thickness | Width | Color |
| R08 | PTFE film | 0.01-0.2mm | ≤1300mm | White, black, red, yellow, green, blue, etc |
| R09 | Fep film | 0.025-0.25mm | ≤1250mm(tape casting); ≤550mm(blow m olding) | Transparent |
| R10 | PTFE belt | 0.13-1mm | ≤2400mm | Brown, white, black, etc |
| R11 | PTFE mesh belt | 0.6mm | Custom | Brown, black |
R12 | PTFE cloth | 0.08-1mm | ≤2400mm | Brown, white, black, etc |
R13 | PTFE tape | 0.08,0.13,0.18, 0.25mm(film base); 0.13,0.16,0.18, 0.25,0.3,0.4mm (cloth base) | ≤500mm(film base) ; ≤1250mm(cloth base) | Gray(film base); brown, white, black, etc (cloth base) |
|
